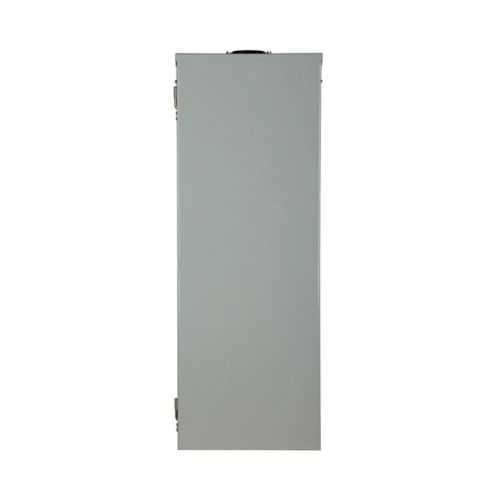

Eaton CH30B3225L Main Breaker Loadcenter - UL 67
Part Number: CH30B3225L
Quick Summary
Eaton CH30B3225L Main Breaker Loadcenter is a high-capacity distribution panel for three-phase industrial applications. It streamlines power distribution while minimizing cabinet footprint and simplifying fault isolation with the main breaker located at the front. A common challenge is selecting a panel that matches bus, conductor sizes, and enclosure requirements without triggering redesigns or costly upgrades. This model delivers UL 67 and UL 50 certifications with a 10 kAIC interrupt rating, plus a copper bus for low voltage drop and robust conductivity. With 225 A capacity, 30 circuits and 30 spaces, it supports scalable growth. The rugged NEMA 1 metallic enclosure and hub closure plates streamline installation in control rooms, data centers, and manufacturing lines, while the limited lifetime warranty supports long-term reliability.
Product Information
Extended Description
CH30B3225L Eaton: Eaton CH main breaker loadcenter,Standard,Main breaker,225 A,L,Copper,NEMA 1,Metallic,10 kAIC,CC,30 Circuits,30 Spaces,Four-wire,Three-phase,#2/0 AWG-300 kcmil,Top/bottom
Product Name
Eaton CH main breaker loadcenter
Catalog Number
CH30B3225L
UPC
782113098005
Product Length/Depth
39 in
Product Height
3.88 in
Product Width
14.31 in
Product Weight
28 lb
Warranty
Limited lifetime
Certifications
UL 67 UL 50
Catalog Notes
Furnished with hub closure plates.
Special features
Standard
Type
Main breaker
Amperage Rating
225 A
Bus material
Copper
Main circuit breaker
CC
Number of circuits
30
Number of spaces
30
Phase
Three-phase
Wire size
#2/0 AWG-300 kcmil
Feed type
Top/bottom
Box size
L
Enclosure
NEMA 1
Enclosure material
Metallic
Interrupt rating
10 kAIC
Number of wires
4
Residential and Light Commercial, Load centers and Circuit Breakers, Volume 1 Tab 1
AFCI Educational Video
Eaton Specification Sheet - CH30B3225L
Eaton type CH circuit breaker limited warranty June 2024
Feature is a high-capacity 225 A main breaker loadcenter. Business impact is reliable power distribution with room to expand, reducing downtime and upgrade costs. Application: ideal for three-phase industrial facilities needing 30 circuits and 30 spaces. The copper bus offers lower voltage drop for critical loads, improving overall efficiency and performance in motor control centers and panel assemblies. Feature is 39 in length, 14.31 in width, and 3.88 in height in a NEMA 1 metallic enclosure. Business impact is a compact footprint that fits standard electrical rooms while withstanding typical workshop conditions. Application: manufacturing floors and process lines requiring top/bottom feed with a four-wire configuration. Feature is 10 kAIC interrupt rating and CH main breaker (CC). Business impact includes enhanced short-circuit protection and safer disconnection, reducing fault-clearing time in critical circuits. Application: control panels in industrial automation systems. Feature is hub closure plates included in catalog notes. Business impact ensures easier field retrofits and reduced sealing gaps, improving enclosure integrity and compliance in a wide range of environments.
Get a Quick Quote for a Eaton CH30B3225L
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CH30B3225L?
Enquire Now
FAQs
Yes. The CH30B3225L is part of the Eaton CH series and ships with hub closure plates as catalog notes, simplifying installation and ensuring enclosure integrity. It supports standard CH accessories and is designed for straightforward field wiring with top/bottom feed options.
This model provides a 225 A rating, 10 kAIC interrupt capacity, and accommodates #2/0 AWG up to 300 kcmil conductors. It features 30 circuits and 30 spaces, with a three-phase, four-wire configuration using copper bus for optimal conductivity.
Absolutely. With 225 A capacity, 30 circuits, and 30 spaces, the CH30B3225L supports scalable automation and process loads in manufacturing, data centers, and control panels, while maintaining compact enclosure dimensions for space-constrained electrical rooms.
The loadcenter is certified to UL 67 and UL 50, ensuring compliance for enclosures and control gear. These certifications verify safe operation under standard environmental conditions and support regulatory compliance for industrial electrical installations.
Eaton provides a limited lifetime warranty on this loadcenter, backing long-term reliability. In addition, hub closure plates are included, easing future maintenance and retrofit projects while minimizing enclosure ingress and corrosion risk.
