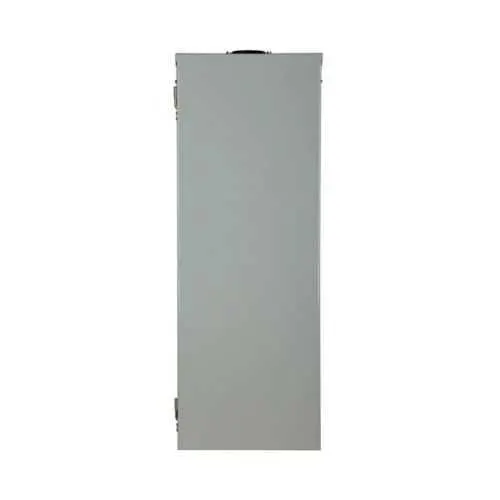

Eaton CH30B3225R Main breaker loadcenter - 10 kAIC
Part Number: CH30B3225R
Quick Summary
Eaton CH30B3225R main breaker loadcenter powers three-phase panels in industrial settings. In demanding facilities, space constraints and reliability concerns can complicate panel upgrades. UL 67 and UL 50 listings, a NEMA 3R metallic enclosure, and a 10 kAIC interrupt rating provide critical safety and performance. Designed for retrofit and new installs, it combines copper bus, a 225 A main, and flexible wiring options to reduce installation time and overall cost. With 30 spaces supporting 30 circuits and four-wire, three-phase capability, it scales with growing demand while meeting code requirements.
Product Information
Extended Description
CH30B3225R Eaton: Eaton CH main breaker loadcenter,Standard,Main breaker,225 A,L,Copper,NEMA 3R,Metallic,10 kAIC,CC,30 Circuits,30 Spaces,Four-wire,Three-phase,#2/0 AWG-300 kcmil,Overhead
Product Name
Eaton CH main breaker loadcenter
Catalog Number
CH30B3225R
UPC
782113098012
Product Length/Depth
39 in
Product Height
5.19 in
Product Width
14.31 in
Product Weight
34.4 lb
Warranty
Limited lifetime
Certifications
UL 67 UL 50
Catalog Notes
Furnished with hub closure plates.
Special features
Standard
Type
Main breaker
Amperage Rating
225 A
Bus material
Copper
Main circuit breaker
CC
Number of circuits
30
Number of spaces
30
Phase
Three-phase
Wire size
#2/0 AWG-300 kcmil
Feed type
Overhead
Box size
L
Enclosure
NEMA 3R
Enclosure material
Metallic
Interrupt rating
10 kAIC
Number of wires
4
Residential and Light Commercial, Load centers and Circuit Breakers, Volume 1 Tab 1
AFCI Educational Video
Eaton Specification Sheet - CH30B3225R
Eaton type CH circuit breaker limited warranty June 2024
The 225 A main breaker with copper bus delivers high current handling with low impedance, reducing voltage drop on motor starts. This translates to improved motor control and reduced energy losses in critical feeders. Enclosure and protection: a NEMA 3R metallic enclosure tolerates outdoor or damp locations, while the 10 kAIC interrupt rating guards against short-circuit events, boosting system reliability in harsh environments. Wiring and space efficiency: 30 circuits and 30 spaces, four-wire capability, and #2/0 AWG - 300 kcmil wire size support large feeders and flexible installation for expanding facilities. Installation practicality: overhead feed simplifies routing; hub closure plates speed up setup and seal integrity, cutting commissioning time. Compliance and lifecycle: UL 67 UL 50 listings with limited lifetime warranty; compatible with CH series components for scalable distribution, keeping maintenance predictable for years.
Get a Quick Quote for a Eaton CH30B3225R
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CH30B3225R?
Enquire Now
FAQs
The CH30B3225R is a 30-space, 30-circuit, three-phase main breaker loadcenter designed for overhead feed. It accepts CH series components and features a copper bus, #2/0 AWG to 300 kcmil wiring, and a NEMA 3R metallic enclosure, making it suitable for retrofit and new installation in industrial facilities.
This loadcenter uses a 225 A main circuit breaker with a 10 kAIC interrupt rating, providing robust short-circuit protection for demanding motor loads and high-demand feeders in multi-line facilities.
Yes. It features a NEMA 3R metallic enclosure and UL listings (UL 67, UL 50), making it appropriate for outdoor and damp locations while maintaining protection against contaminants and weather exposure.
The catalog notes specify hub closure plates are furnished, which simplifies seal integrity and enclosure access. It supports overhead feed and four-wire configurations, with wiring options up to #2/0 AWG to 300 kcmil, in a 39 in depth by 14.31 in width by 5.19 in height footprint.
The CH30B3225R carries a limited lifetime warranty and UL certifications, ensuring ongoing protection for critical distribution investments. Its modular CH series compatibility aids long-term maintenance, upgrades, and parts availability, supporting a lower total cost of ownership in industrial settings.
