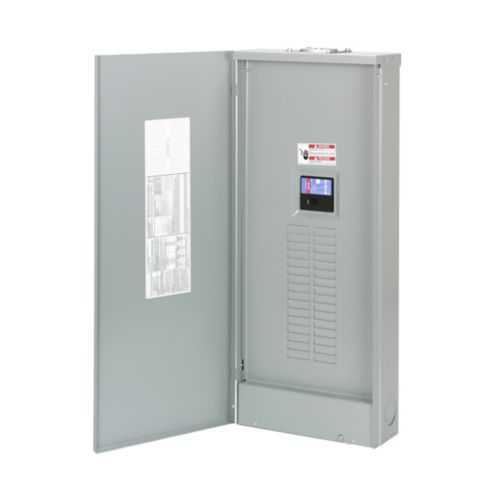

Eaton CH36B200EGP MainBreaker - 25 kAIC
Part Number: CH36B200EGP
Quick Summary
The Eaton CH36B200EGP MainBreaker loadcenter delivers reliable power distribution for commercial and industrial panels. Engineers often struggle with wiring density, space constraints, and timely fault isolation in legacy enclosures. It carries UL 50 and UL 67 certifications, signaling enclosure integrity and electrical safety. With a copper bus, 200 A rating, and a 36-space layout, it integrates with ATS-ready load centers and standard wiring practices, helping reduce installation time and lifecycle costs.
Product Information
Extended Description
CH36B200EGP Eaton: Eaton CH main breaker loadcenters,Standard,Main breaker,200 A,P,Copper,NEMA 1,Metallic,CH,36,36,Three-wire,Single-phase
Product Name
Eaton CH main breaker loadcenter
Catalog Number
CH36B200EGP
UPC
786685243085
Product Length/Depth
29.13 in
Product Height
3.88 in
Product Width
14.31 in
Product Weight
17 lb
Warranty
Limited lifetime
Certifications
UL 50 UL 67
Catalog Notes
Ats ready loadcenter
Special features
Standard
Type
Main breaker
Amperage Rating
200 A
Bus material
Copper
Main circuit breaker
CH
Number of circuits
36
Number of spaces
36
Phase
Single-phase
Box size
P
Enclosure
NEMA 1
Enclosure material
Metallic
Interrupt rating
25 kAIC
Number of wires
3
Residential and Light Commercial, Load centers and Circuit Breakers, Volume 1 Tab 1
AFCI Educational Video
Eaton Specification Sheet - CH36B200EGP
Eaton type CH circuit breaker limited warranty June 2024
The CH36B200EGP uses a 200 A main breaker with a copper bus, delivering low impedance and robust fault protection; this translates to improved reliability for critical circuits and easier coordination with upstream protection. The 36-space capacity, 36 circuits, and three-wire, single-phase configuration streamline panel organization and future expansion while meeting code requirements in commercial installations. The 25 kAIC interrupt rating provides substantial fault current withstand, reducing arcing risk and downtime in high-demand environments like manufacturing or data centers. The NEMA 1 metallic enclosure delivers indoor protection against dust and incidental contact, supporting quick retrofits in existing facilities. The ATS-ready designation and standard "Ats ready loadcenter" catalog notes enable fast power-transfer integration and simplified maintenance planning, delivering predictable installation timelines and lower lifecycle costs for equipment fleets. The combination of UL 50 and UL 67 certifications ensures ongoing compliance with electrical codes and consistent performance across environments, helping facilities meet stringent safety standards.
Get a Quick Quote for a Eaton CH36B200EGP
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CH36B200EGP?
Enquire Now
FAQs
When retrofitting, verify panel compatibility with a 36-space CH series unit, ensure conductor routing fits the NEMA 1 metallic enclosure, and plan for a 200 A main breaker. Use appropriate lugs, follow Eaton’s installation instructions, and confirm grounding and bonding per local code to minimize commissioning time.
CH36B200EGP is designed for single-phase service with 36 spaces, copper bus, and a 200 A main breaker. The 25 kAIC interrupt rating supports typical single-phase fault currents, while the ATS-ready feature simplifies transfer, making it ideal for shops, light manufacturing, and service entrances seeking compact, scalable distribution.
Applications include residential sub-panels feeding heavy circuit loads, small to mid-size commercial spaces, and controlled equipment setups. The 36-space arrangement allows phased expansion, while the copper bus enables efficient conductor paths and lower resistance, reducing heat and improving overall system reliability in busy facilities.
UL 50 and UL 67 certifications validate enclosure integrity and electrical safety for the loadcenter in indoor environments. These markings reassure installers and inspectors of compliance with protection ratings, mounting configurations, and safe operation, supporting smoother code approvals and long service life in industrial and commercial settings.
This Eaton loadcenter carries a limited lifetime warranty, reflecting confidence in long-term performance and durability. Warranty coverage typically includes defects in materials and workmanship. Additionally, Eaton provides specification sheets, maintenance guides, and access to warranty documentation to assist with troubleshooting and minimizing downtime.
