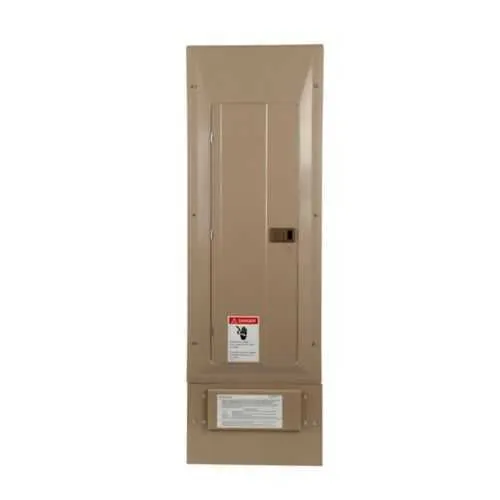

Eaton CH36B200EGPK Main Breaker Loadcenter - UL 67 UL 50
Part Number: CH36B200EGPK
Quick Summary
The Eaton CH36B200EGPK main breaker loadcenter is a 200 A distribution panel designed for reliable, scalable power management in commercial and light industrial applications. If you’re grappling with space constraints and ATS integration, this loadcenter offers a compact 36-space solution with factory-installed ATS capability to simplify installation and reduce field labor. It carries UL 67 and UL 50 certifications for safety and enclosure integrity, plus a 25 kAIC interrupt rating for enhanced fault protection. From an operations perspective, it supports consistent maintenance scheduling and predictable performance, while the copper bus and NEMA 1 metallic enclosure underpin durability in demanding environments. This model pairs well with Eaton CH series circuit breakers to optimize total cost of ownership and return on investment.
Product Information
Extended Description
CH36B200EGPK Eaton: Eaton CH main breaker loadcenters,Standard,Main breaker,200 A,K,Copper,NEMA 1,Metallic,CH,36,36,Three-wire,Single-phase
Product Name
Eaton CH main breaker loadcenter
Catalog Number
CH36B200EGPK
UPC
786685243108
Product Length/Depth
29.13 in
Product Height
3.88 in
Product Width
14.31 in
Product Weight
17 lb
Warranty
Limited lifetime
Certifications
UL 67 UL 50
Catalog Notes
ATS ready loadcenter with factory-installed ATS kit
Special features
Standard
Type
Main breaker
Amperage Rating
200 A
Bus material
Copper
Main circuit breaker
CH
Number of circuits
36
Number of spaces
36
Phase
Single-phase
Box size
K
Enclosure
NEMA 1
Enclosure material
Metallic
Interrupt rating
25 kAIC
Number of wires
3
Residential and Light Commercial, Load centers and Circuit Breakers, Volume 1 Tab 1
AFCI Educational Video
Eaton Specification Sheet - CH36B200EGPK
Eaton type CH circuit breaker limited warranty June 2024
Feature → Business Impact → Application: 200 A main amperage with a 36-space configuration enables centralized power distribution for mid-size facilities, reducing panel count and simplifying wiring in mechanical rooms. This translates to faster panel upgrades and lower installation labor costs for new builds and retrofits. Application: commercial offices, light manufacturing, and data/communications rooms requiring reliable, expandable distribution. Feature → Business Impact → Application: Copper bus material delivers superior conductivity and reduced resistance, improving overall system efficiency and minimizing heat rise during peak loads. Application: critical power panels where voltage stability and longevity matter, such as data centers and process automation. Feature → Business Impact → Application: ATS-ready with factory-installed ATS kit simplifies automatic transfer switch integration, cutting commissioning time and risk of field modifications. Application: facilities with standby power requirements and code-compliant transfer switching. Feature → Business Impact → Application: NEMA 1 metallic enclosure provides robust physical protection and corrosion resistance in indoor environments, supporting long service life with minimal maintenance. Application: industrial facilities with indoor electrical rooms. Feature → Business Impact → Application: 25 kAIC interrupt rating enhances fault current handling, improving safety margins and reducing risk of equipment damage during outages. Application: electrical distribution panels feeding high-demand loads. Feature → Business Impact → Application: 36 spaces and 36 circuits offer flexible distribution for future expansion, enabling phased installations without panel replacement. Application: growing plants or offices with evolving electrical needs. Feature → Business Impact → Application: Limited lifetime warranty and Eaton engineering support provide long-term reliability and faster issue resolution. Application: asset protection and total cost of ownership considerations for procurement teams.
Get a Quick Quote for a Eaton CH36B200EGPK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CH36B200EGPK?
Enquire Now
FAQs
The CH36B200EGPK is designed for indoor use in a NEMA 1 metallic enclosure with a compact footprint. It supports factory-installed ATS and has a 200 A main breaker, 36 spaces, and copper bus. Consider mounting height, wiring access, and available space for future expansion to ensure a clean, compliant installation and straightforward maintenance.
Key specs include a 200 A amperage rating, 36 circuits/spaces, single-phase, three-wire configuration, copper bus, and a 25 kAIC interrupt rating. Enclosure is NEMA 1 and metallic, with a footprint of 29.13 in depth, 3.88 in height, and 14.31 in width, plus a weight of 17 lb. These details support proper breaker selection and safe operation.
Yes. The CH36B200EGPK is ATS-ready with a factory-installed ATS kit, meaning it can interface with automatic transfer switching for standby power without requiring major field modifications. This reduces commissioning time, ensures faster restoration after outages, and improves reliability for mission-critical loads.
This loadcenter is UL 67 and UL 50 listed, ensuring safe enclosure performance and electrical integrity. These certifications help meet electrical codes and industrial safety standards, supporting regulatory compliance, insurance requirements, and customer confidence for installations in commercial and light-industrial environments.
With a limited lifetime warranty and robust construction, maintenance needs are minimized. Copper bus reduces resistance and heat, improving efficiency and reliability, while ATS readiness lowers downtime and labor costs during changeovers. For procurement, this translates to lower lifecycle costs and predictable long-term returns on power distribution investments.
