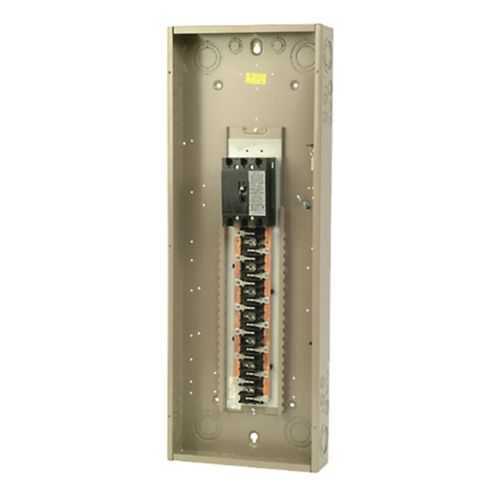

Eaton CH42B3200R Main Breaker Loadcenter - 10 kAIC
Part Number: CH42B3200R
Quick Summary
The Eaton CH42B3200R main breaker loadcenter delivers centralized protection for three-phase power distribution up to 200 A. Users face space constraints, wiring complexity, and compliance gaps when expanding industrial panels, making installation decisions risky without proper specification. It carries UL 50 and UL 67 certifications, a NEMA 3R metallic enclosure, and a 10 kAIC interrupt rating to meet demanding environments. Designed for reliability and ease of installation, this CH loadcenter integrates copper bus, 42 circuits, and overhead feed to streamline panel upgrades while reducing total cost of ownership. The included four-wire configuration supports modern utility and equipment grounding practices, enhancing safety and uptime for critical processes.
Product Information
Extended Description
CH42B3200R Eaton: Eaton CH main breaker loadcenter,Standard,Main breaker,200 A,L,Copper,NEMA 3R,Metallic,10 kAIC,CC,42 Circuits,42 Spaces,Four-wire,Three-phase,#2/0 AWG-300 kcmil,Overhead
Product Name
Eaton CH main breaker loadcenter
Catalog Number
CH42B3200R
UPC
782113098296
Product Length/Depth
39 in
Product Height
5.19 in
Product Width
14.31 in
Product Weight
40 lb
Warranty
Limited lifetime
Certifications
UL 50 UL 67
Catalog Notes
Furnished with hub closure plates.
Special features
Standard
Type
Main breaker
Amperage Rating
200 A
Bus material
Copper
Main circuit breaker
CC
Number of circuits
42
Number of spaces
42
Phase
Three-phase
Wire size
#2/0 AWG-300 kcmil
Feed type
Overhead
Box size
L
Enclosure
NEMA 3R
Enclosure material
Metallic
Interrupt rating
10 kAIC
Number of wires
4
Residential and Light Commercial, Load centers and Circuit Breakers, Volume 1 Tab 1
AFCI Educational Video
Eaton Specification Sheet - CH42B3200R
Eaton type CH circuit breaker limited warranty June 2024
200 A main breaker provides robust protection for mid-sized industrial or large commercial installations, reducing nuisance trips and improving uptime. This translates to lower maintenance costs and decreased unplanned downtime in manufacturing lines and data centers alike. The 42 circuits/spaces offer ample capacity for future wiring and branch circuit growth without requiring a full panel replacement, delivering a lower total cost of ownership over the asset’s life. Copper bus material ensures low resistance and stable voltage delivery under heavy load, improving motor startup performance and energy efficiency while reducing heat buildup in feeders. The NEMA 3R metallic enclosure is designed for outdoor or harsh environments, enabling outdoor installations or exposed wall mounting with weather-resistant protection. An interrupt rating of 10 kAIC provides reliable short-circuit protection for demanding workloads, supporting safer, high-uptime operations. The overhead feed and four-wire configuration simplify routing and grounding in modern electrical distributions, accelerating installation and reducing field wiring errors. With 42 spaces, 42 circuits, and hub closure plates furnished, the CH42B3200R reduces field modifications and accelerates project timelines while ensuring code-compliant, upgrade-ready performance. This loadcenter aligns with standard Eaton accessory ecosystems, allowing seamless compatibility with CH-series breakers and related distribution components for scalable panel design.
Get a Quick Quote for a Eaton CH42B3200R
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CH42B3200R?
Enquire Now
FAQs
The CH42B3200R uses a NEMA 3R metallic enclosure and provides 42 spaces for 42 circuits with a copper bus. It supports #2/0 AWG to 300 kcmil conductors, a four-wire configuration, and overhead feed. The unit ships with hub closure plates for streamlined field wiring and reduced installation time, making it suitable for outdoor or rugged environments while maintaining code-compliant performance.
This loadcenter features a 10 kAIC interrupt rating, delivering reliable short-circuit protection for demanding industrial loads. With a three-phase configuration and a 200 A main breaker, it limits damage during faults and supports safer start-up of large motors and heavy equipment. The CC main breaker designation indicates a factory-set, reliable protection scheme compatible with Eaton CH accessories.
Yes. The CH42B3200R uses a NEMA 3R metallic enclosure designed for outdoor usage and challenging environments. Its UL 50/UL 67 certifications further reinforce compliance and performance in harsh conditions, making it a solid choice for exterior walls, loading docks, or exposed mechanical rooms while maintaining electrical safety and reliability.
The CH42B3200R carries UL 50 and UL 67 certification marks, confirming its suitability for electrical distribution applications and enclosure integrity. These standards support code compliance for enclosures and switchgear assemblies and help ensure reliability in commercial and industrial facilities.
The unit’s 200 A main breaker, 42 circuit capacity, copper bus, and hub closure plates reduce field modification time and future upgrade costs. A limited lifetime warranty enhances long-term value, while the robust protection and high interrupt rating help minimize downtime and maintenance expenses in manufacturing, data centers, and large facilities.
