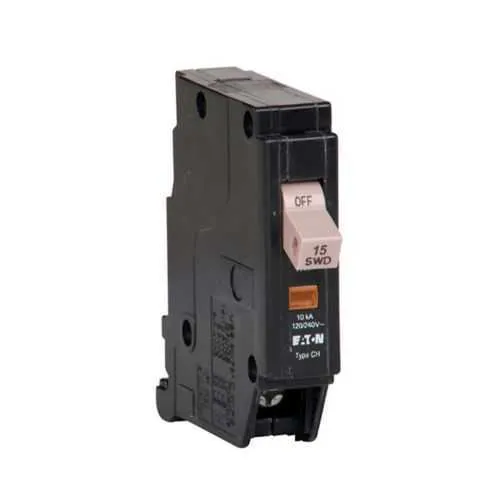

Eaton CHF110 Circuit Breaker - 10 kAIC Trip Flag
Part Number: CHF110
Quick Summary
The Eaton CHF110 circuit breaker protects 120/240 V circuits in electrical panels. When nuisance trips or space constraints slow projects, downtime and rework add cost. UL 489 certified and HACR rated support motor and HVAC loads, while Type CHF compatibility keeps installation straightforward. Designed for Type CH Loadcenters, this 10 A device also helps you meet code requirements with minimal panel changes. Its compact 3 in x 3 in footprint, 0.75 in width, and single-pole trip flag provide reliable protection without sacrificing panel density.
Product Information
Extended Description
CHF110 Eaton: Eaton CH thermal magnetic circuit breaker,Type CHF 3/4-Inch standard circuit breaker,10 A,10 kAIC,Single-pole,120/240V,CHF,Trip flag, common breaker trip,(1) #14-8 AWG, (2) #14-10 AWG Cu/Al,Q1,CHF,Type CH Loadcenters
Product Name
Eaton CH thermal magnetic circuit breaker
Catalog Number
CHF110
UPC
786689013394
Product Length/Depth
3 in
Product Height
3 in
Product Width
0.75 in
Product Weight
0.28 lb
Warranty
Limited lifetime residential, 1 year commercial
Compliances
HACR Rated
Certifications
UL 489
Catalog Notes
Switching Duty Rated, HACR Rated, Single-Pole Requires One 2/4-Inch Space, With Trip Indication.
Used with
Type CH Loadcenters
Type
Type CHF 3/4-Inch standard circuit breaker
Special features
Trip Flag
Amperage Rating
10 A
Voltage rating
120/240 V
Trip Type
Trip flag
Circuit breaker type
CHF
Interrupt rating
10 kAIC
Main circuit breaker
CHF
Wire size
(1) #14-8 AWG (2) #14-10 AWG Cu/Al
Number of poles
Single-pole
Quantity
1
Feature 1: 10 A amperage rating with a 10 kAIC interrupt rating. Business Impact: Precise overcurrent protection minimizes nuisance trips on small circuits while maintaining safety margins in fault conditions. Application: Ideal for lighting and control circuits within Type CH Loadcenters. Feature 2: 3/4-Inch CHF width and single-pole design, requiring one 2/4-inch space. Business Impact: Improves panel occupancy and wiring efficiency, enabling denser, code-compliant installations. Application: Residential and light commercial panels where space is at a premium. Feature 3: Trip flag for clear trip indication. Business Impact: Reduces maintenance time and improves fault diagnosis during inspections. Application: Field service and routine commissioning in HVAC or machinery controls. Feature 4: Wire size compatibility (1) #14-8 AWG and (2) #14-10 AWG Cu/Al. Business Impact: Simplifies wiring, reduces rewiring steps, and supports mixed conductor types. Application: Control circuits and branch feeders in CH Loadcenters. Feature 5: HACR rated and UL 489 certified. Business Impact: Ensures compliance with HVAC and general electrical codes, lowering integration risk. Application: HVAC equipment, motor-started loads, and permissible branch circuits. Feature 6: Compatible with Type CH Loadcenters and common trip configurations. Business Impact: Streamlines procurement and installation across a family of Eaton CH devices. Application: Modernizing electrical distribution with standardized protection.
