Eaton CHF120CS CH Thermal Magnetic Breaker - UL Listed

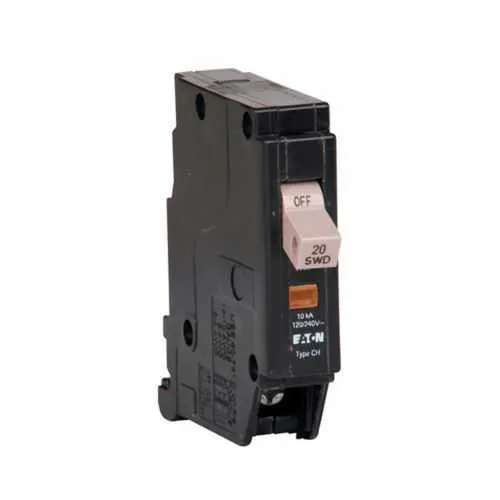

Part Number: CHF120CS
Quick Summary
Eaton CH thermal magnetic circuit breaker provides reliable overcurrent protection for residential and commercial electrical panels. In tight control panels, long install times and wiring errors cost you uptime; this CHF120CS design streamlines wiring with a 3/4-inch form factor and a clear trip flag to minimize mis-wiring and speed replacement. It is UL Listed and CSA Certified with HACR ratings, ensuring safe operation with HVAC loads and helping you stay code-compliant. For Type CH load centers, this breaker delivers consistent protection, while clamshell packaging simplifies bulk stocking and inventory control, reducing packaging waste and logistics costs. This translates to lower total cost of ownership and faster commissioning.
Product Information
Extended Description
CHF120CS Eaton: Eaton CH thermal magnetic circuit breaker,Type CHF 3/4-Inch standard circuit breaker clamshell pack,Clamshell pack,20 A,10 kAIC,Single-pole,120/240V,CHF,Trip flag, common breaker trip,(1) #14-8 AWG, (2) #14-10 AWG Cu/Al,CHF
Product Name
Eaton CH thermal magnetic circuit breaker
Catalog Number
CHF120CS
UPC
786685683225
Product Length/Depth
7.25 in
Product Height
6.5 in
Product Width
4.5 in
Product Weight
0.4 lb
Warranty
Limited lifetime
Compliances
HACR Rated
Certifications
UL Listed CSA Certified
Used with
Type CH Loadcenters
Type
Type CHF 3/4-Inch standard circuit breaker clamshell pack
Special features
Clamshell pack
Amperage Rating
20 A
Voltage rating
120/240 V
Trip Type
Trip flag
Circuit breaker type
CHF
Interrupt rating
10 kAIC
Main circuit breaker
CHF
Wire size
(2) #14-10 AWG Cu/Al (1) #14-8 AWG
Number of poles
Single-pole
Residential and Light Commercial, Metering Products, Volume 1 Tab 4
Eaton Specification Sheet - CHF120CS
Eaton type CH circuit breaker limited warranty June 2024
Thermal magnetic trip mechanism delivers precise protection against both overloads and short circuits, reducing the risk of nuisance tripping and equipment damage. With a 10 kAIC interrupt rating and a single-pole CHF design rated for 120/240 V, it aligns with common panel architectures and supports predictable coordination within Type CH load centers. The mechanism’s fast, predictable response translates into fewer unplanned outages and improved uptime in industrial and commercial buildings. Clamshell pack packaging reduces bulk handling and shipping costs; procurement teams appreciate simplified stocking. This packaging style also supports bulk orders and easier inventory management in warehouses and job sites, enabling faster pull from shelves and reducing breakage risk during transport. Wire-size compatibility ensures straightforward field termination: two #14-10 AWG Cu/Al conductors and one #14-8 AWG conductor accommodate typical feeders and branch circuits. The single-pole 20 A rating covers everyday lighting and general-purpose circuits, while the 3/4-Inch CH footprint fits tight panel spaces. UL Listed and CSA Certified with HACR rating ensures regulatory compliance and safe operation with HVAC equipment; designed for residential, commercial, and light industrial panels. For Type CH Load Centers, CHF120CS offers reliable protection within Eaton’s CH ecosystem, backed by a limited lifetime warranty and streamlined maintenance that support lower total cost of ownership.
