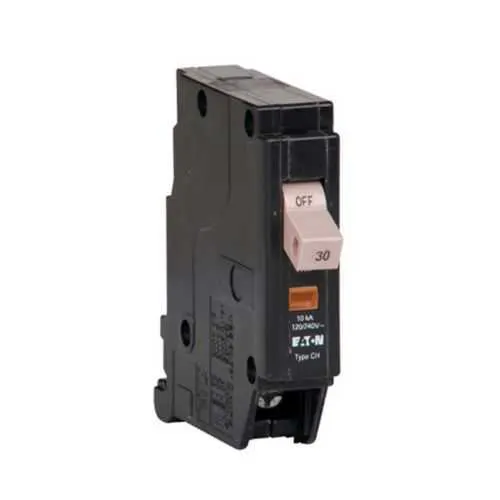

Eaton CHF130 Thermal Magnetic Circuit Breaker - UL 489
Part Number: CHF130
Quick Summary
Eaton CHF130 thermal magnetic circuit breaker provides reliable overcurrent protection for CH load centers in residential and light commercial panels. Facing crowded panels and frequent nuisance trips, engineers need a compact, easy-to-wire solution that fits existing spaces. UL 489 certification and HACR rating add safety and HVAC compatibility, while adherence to CH load center design ensures straightforward integration. With a 30 A rating, 120/240 V operation, and a clear trip indication, this device helps protect circuits while simplifying maintenance and budget planning.
Product Information
Extended Description
CHF130 Eaton: Eaton CH thermal magnetic circuit breaker,Type CHF 3/4-Inch standard circuit breaker,30 A,10 kAIC,Single-pole,120/240V,CHF,Trip flag, common breaker trip,(1) #14-8 AWG, (2) #14-10 AWG Cu/Al,CHF,Type CH Loadcenters
Product Name
Eaton CH thermal magnetic circuit breaker
Catalog Number
CHF130
UPC
786685361864
Product Length/Depth
3.2 in
Product Height
2.6 in
Product Width
0.7 in
Product Weight
0.3 lb
Warranty
Limited lifetime residential, 1 year commercial
Compliances
HACR Rated
Certifications
UL 489
Catalog Notes
HACR Rated, Single-Pole Requires One 2/4-Inch Space, With Trip Indication.
Used with
Type CH Loadcenters
Type
Type CHF 3/4-Inch standard circuit breaker
Amperage Rating
30 A
Voltage rating
120/240 V
Trip Type
Trip flag
Circuit breaker type
CHF
Interrupt rating
10 kAIC
Main circuit breaker
CHF
Wire size
(2) #14-10 AWG Cu/Al (1) #14-8 AWG
Number of poles
Single-pole
Residential and Light Commercial, Metering Products, Volume 1 Tab 4
Eaton Specification Sheet - CHF130
Eaton type CH circuit breaker limited warranty June 2024
Feature: 30 A amperage rating paired with a 10 kAIC interrupt rating provides precise fault protection without over-tripping. Business Impact: This balance reduces nuisance trips on normal load currents, helping electricians maintain uptime and customers avoid unnecessary downtime. Application: Ideal for lighting, receptacle, and branch circuits in Type CH Loadcenters used in residential and light commercial spaces. Feature: Single-pole, CHF 3/4-Inch standard footprint and compact width. Business Impact: Enables easy replacement in crowded panels and saves panel space. Application: Compatible with Type CH Loadcenters and commonly used in retrofit projects. Feature: Trip flag and clear trip indication. Business Impact: Speeds fault diagnosis and service scheduling, reducing mean time to repair. Application: Valuable in maintenance programs and warranty-driven service plans. Feature: HACR rated and UL 489 certified. Business Impact: Ensures compliance with electrical codes and HVAC equipment applications. Application: Safe use in HVAC control panels and related equipment. Feature: Wire size compatibility: (2) #14-10 Cu/Al, (1) #14-8 AWG. Business Impact: Flexible wiring options with common conductors, reducing stocking needs. Application: Supports typical residential branch circuits and small commercial feeders. Feature: Lightweight 0.3 lb and Type CH Loadcenter compatibility. Business Impact: Simplifies handling and reduces installation time. Application: Fast swap-ins and upgrades in existing Eaton CH systems.
