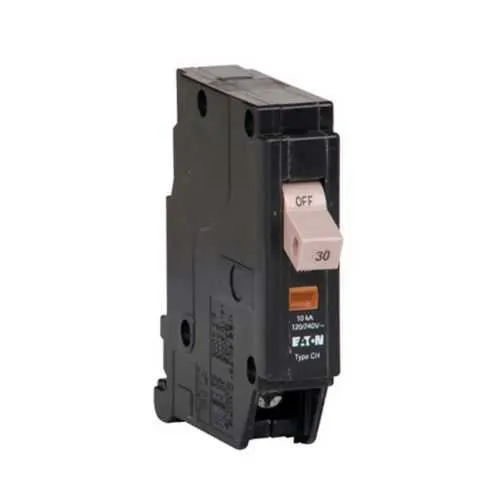

Eaton CHF130CS Circuit Breaker - UL Listed 10 kAIC
Part Number: CHF130CS
Quick Summary
The Eaton CHF130CS is a CH thermal-magnetic circuit breaker designed for residential and light commercial electrical panels. Engineers often wrestle with nuisance trips and poor selectivity, which can lead to outages and unnecessary downtime. This device is HACR rated and UL Listed with CSA Certified safety, helping ensure code compliance and safer installations in HVAC and lighting applications. Used with Type CH load centers, it supports 120/240 V systems and a 30 A rating, delivering reliable protection and straightforward installation for panel builders and maintenance teams.
Product Information
Extended Description
CHF130CS Eaton: Eaton CH thermal magnetic circuit breaker,Type CHF 3/4-Inch standard circuit breaker clamshell pack,Clamshell pack,30 A,10 kAIC,Single-pole,120/240V,CHF,Trip flag, common breaker trip,(1) #14-8 AWG, (2) #14-10 AWG Cu/Al,CHF
Product Name
Eaton CH thermal magnetic circuit breaker
Catalog Number
CHF130CS
UPC
786685683249
Product Length/Depth
7.25 in
Product Height
6.5 in
Product Width
4.5 in
Product Weight
0.4 lb
Warranty
Limited lifetime
Compliances
HACR Rated
Certifications
UL Listed CSA Certified
Used with
Type CH Loadcenters
Type
Type CHF 3/4-Inch standard circuit breaker clamshell pack
Special features
Clamshell pack
Amperage Rating
30 A
Voltage rating
120/240 V
Trip Type
Trip flag
Circuit breaker type
CHF
Interrupt rating
10 kAIC
Main circuit breaker
CHF
Wire size
(2) #14-10 AWG Cu/Al (1) #14-8 AWG
Number of poles
Single-pole
Residential and Light Commercial, Metering Products, Volume 1 Tab 4
Eaton Specification Sheet - CHF130CS
Eaton type CH circuit breaker limited warranty June 2024
Clamshell packaging improves handling and storage efficiency, reducing damage during transit and streamlining stocking for distributors. The bundled clamshell pack also minimizes waste and simplifies procurement for panel builders working on multiple projects. With a 30 A rating and 120/240 V operation, the CHF130CS protects typical branch circuits in residential and light commercial panels, aligning with Type CH load centers and standard wire sizes. This compatibility translates to straightforward replacement and faster field upgrades. An interrupt rating of 10 kAIC provides robust fault-current protection in environments with higher short-circuit currents, reducing the risk of equipment damage and improving system reliability in commercial installations. Trip flag indication enables rapid fault identification during inspection and reduces troubleshooting time, while the supported wiring configuration—(2) #14-10 AWG Cu/Al and (1) #14-8 AWG—offers wiring flexibility in tight spaces. UL Listed and CSA Certified certifications ensure safety compliance, and a limited lifetime warranty adds long-term value for panel builders and maintenance teams working with Type CH load centers.
Get a Quick Quote for a Eaton CHF130CS
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CHF130CS?
Enquire Now
FAQs
The CHF130CS is designed for Eaton Type CH load centers. It installs as a single-pole CHF 3/4-Inch circuit breaker in CH panels, accepting (2) #14-10 AWG Cu/Al and (1) #14-8 AWG, with 120/240 V operation and a 30 A rating. Its clamshell packaging aids field packaging and inventory management. The unit is HACR rated and UL Listed, ensuring code compliance across HVAC and general electrical installations.
The CHF130CS has a 10 kAIC interrupt rating, meaning it can safely interrupt fault currents up to 10 kiloamps without damage. This spec matters for equipment protection and panel safety, especially in environments with high inrush or short-circuit potential. It enables use in a wider range of commercial and light industrial panels and ensures reliable fault clearing when connected to a suitable service.
Yes. The CHF130CS is UL Listed and CSA Certified, reflecting compliance with recognized safety standards. HACR-rated performance supports HVAC applications. These certifications support code compliance in many jurisdictions and help streamline procurement, installation, and maintenance planning for electrical contractors and panel manufacturers.
Yes, it is rated for 120/240 V, suitable for typical US residential and light commercial panels. It accepts two #14-10 AWG copper or aluminum conductors and one #14-8 AWG conductor for line and neutral connections. With a 30 A rating and Type CHF clamshell packaging, it fits standard 3/4-inch CH load centers and simplifies common wiring configurations.
Eaton provides a limited lifetime warranty on the CH series circuit breakers, including the CHF130CS, subject to standard terms. Routine maintenance is minimal beyond typical inspection for proper seating and clean connections. If fault conditions occur, the trip flag aids rapid identification, and replacements through authorized channels ensure continued protection while preserving compatibility with Type CH load centers.
