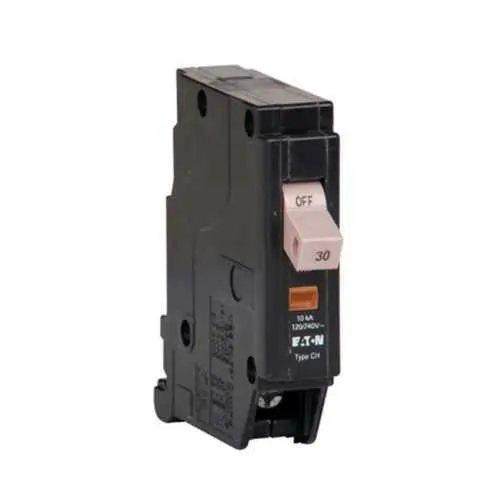

Eaton CHF130ST Thermal Magnetic Circuit Breaker - UL Listed 10 kAIC
Part Number: CHF130ST
Quick Summary
The Eaton CHF130ST thermal magnetic circuit breaker protects 120/240 V circuits in Type CH Loadcenters. Engineers often grapple with nuisance trips and slow panel upgrades, and this unit reduces downtime with plug-on mounting, a visible trip flag, and built-in shunt trip option. It carries UL Listed, HACR rated, and UL 489 certifications, supporting safety and code compliance in residential and light-commercial panels. With a 30 A rating and 10 kAIC interrupt capability, it delivers reliable short-circuit protection while enabling straightforward replacement in existing CH load centers. Solid and stranded wire can be used together, and its compact 2.375 in depth helps maximize panel space during modernization.
Product Information
Extended Description
CHF130ST Eaton: Eaton CH thermal magnetic circuit breaker,Type CHF plug-on circuit breaker,30 A,10 kAIC,Single-pole,120/240V,CHF,Trip flag, common breaker trip,(1) #14-8 AWG, (2) #14-10 AWG Cu/Al,CHF,Type CH Loadcenters,Shunt trip included
Product Name
Eaton CH thermal magnetic circuit breaker
Catalog Number
CHF130ST
UPC
786685708317
Product Length/Depth
2.375 in
Product Height
6 in
Product Width
3.5 in
Product Weight
0.5 lb
Warranty
Limited lifetime
Compliances
HACR Rated
Certifications
UL Listed UL 489
Catalog Notes
Solid and stranded wire can be used together.
Used with
Type CH Loadcenters
Type
Type CHF plug-on circuit breaker
Amperage Rating
30 A
Voltage rating
120/240 V
Trip Type
Trip flag
Circuit breaker type
CHF
Shunt trip
Included
Mounting Method
Plug-on
Interrupt rating
10 kAIC
Main circuit breaker
CHF
Wire size
(1) #14-8 AWG (2) #14-10 AWG Cu/Al
Number of poles
Single-pole
Residential and Light Commercial, Metering Products, Volume 1 Tab 4
Eaton Specification Sheet - CHF130ST
Eaton type CH circuit breaker limited warranty June 2024
The CHF130ST delivers a 30 A amperage rating and a 10 kAIC interrupt rating, enabling fast fault clearance to protect downstream equipment. This performance translates to reduced equipment damage and shorter downtime during fault events, especially in residential feeders and light-commercial circuits. It is purpose-built for Type CH Loadcenters, ensuring coordinated protection with existing Eaton CH panels. A plug-on mounting design simplifies installation and minimizes field wiring errors, accelerating panel upgrades with less cabinet space and fewer miswires. The included shunt trip option enables remote trip control for safety-critical applications, such as interlocks or building automation, without sacrificing quick local protection. Wire compatibility supports (1) #14-8 AWG and (2) #14-10 AWG Cu/Al with solid or stranded conductors, reducing inventory complexity and enabling seamless retrofits. Compliance and visibility are enhanced by a clear trip flag and UL Listed, HACR-rated performance for residential and light-commercial use. Overall, the CHF130ST provides reliable protection, easy replacement in CH Loadcenters, and a compact footprint that optimizes panel real estate during modernization.
