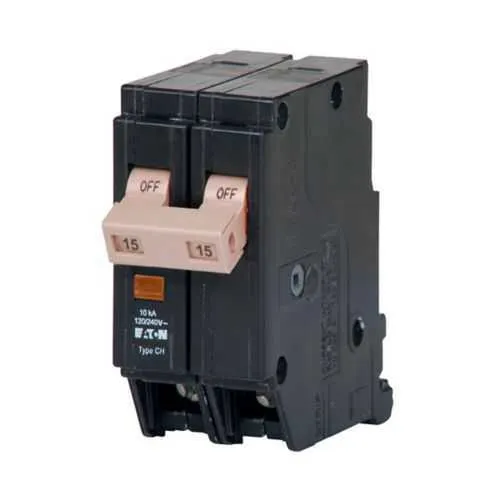

Eaton CHF215 Circuit Breaker - UL 489 Certified, 2-Pole, 120/240V
Part Number: CHF215
Quick Summary
The Eaton CHF215 circuit breaker provides reliable protection for residential and light commercial panelboards. If you're replacing aging breakers, you know how nuisance trips or mismatched trip curves can disrupt uptime. This unit is UL 489 listed, HACR rated, and designed to work with Type CH loadcenters for coordinated protection. Its common-trip two-pole design, trip flag, and 10 kAIC interrupt rating help minimize fault impact while enabling safe, code-compliant installations. By matching the CHF series to CH loadcenters, you gain consistent performance, easier maintenance, and improved inventory management for service teams. In short, it delivers dependable protection with straightforward installation and predictable lifecycle costs.
Product Information
Extended Description
CHF215 Eaton: Eaton CH Thermal magnetic circuit breaker, Type CHF 3/4-Inch standard circuit breaker, 15 A, 10 kAIC, Two-pole, 120/240V, CHF, Trip flag, common breaker trip, (1) #14-8 AWG, (2) #14-10 AWG Cu/Al, CHF, Type CH Loadcenters
Product Name
Eaton CH thermal magnetic circuit breaker
Catalog Number
CHF215
UPC
786685361871
Product Length/Depth
1.5 in
Product Height
2.6 in
Product Width
1.5 in
Product Weight
0.5 lb
Warranty
Limited lifetime residential, 1 year commercial
Compliances
HACR Rated
Certifications
UL 489
Catalog Notes
HACR Rated. Two-Pole 120/240V Common Trip Requires Two 3/4-Inch Spaces. With Trip Indication
Used with
Type CH Loadcenters
Type
Type CHF 3/4-Inch standard circuit breaker
Amperage Rating
15 A
Voltage rating
120/240 V
Trip Type
Trip flag
Circuit breaker type
CHF
Interrupt rating
10 kAIC
Main circuit breaker
CHF
Wire size
(2) #14-10 AWG Cu/Al (1) #14-8 AWG
Number of poles
Two-pole
Residential and Light Commercial, Metering Products, Volume 1 Tab 4
Eaton Specification Sheet - CHF215
Eaton type CH circuit breaker limited warranty June 2024
Feature: Two-pole CHF design enables common-trip protection; Business Impact: ensures simultaneous disconnection of both poles, improving safety and reducing arcing risk; Application: ideal for residential and light commercial panelboards in Type CH installations. Feature: Trip flag indicator; Business Impact: provides immediate visual confirmation of a trip event, speeding diagnostics and maintenance; Application: field service scenarios where quick fault identification saves downtime. Feature: Wire-size compatibility (two #14-10 AWG Cu/Al and one #14-8 AWG); Business Impact: supports flexible, code-compliant wiring without adapters, reducing rework; Application: CH Loadcenters and retrofit projects. Feature: UL 489 certification and HACR rating; Business Impact: ensures regulatory compliance and suitability for motors/heating equipment, lowering compliance risk; Application: code-driven installations in both new builds and upgrades. Feature: 15 A, 120/240 V rating with 10 kAIC interrupt rating; Business Impact: robust fault-current handling and reliable protection for standard residential and light commercial circuits; Application: typical feeder and branch-circuit protection in Type CH environments. Feature: Compact 3/4-Inch CHF form factor with 1.5 in width and 2.6 in height; Business Impact: saves panel space and simplifies installation in crowded or retrofitted panels; Application: space-constrained electrical distributions and CH Loadcenters.
Get a Quick Quote for a Eaton CHF215
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CHF215?
Enquire Now
FAQs
Install the CHF215 as a two-pole devices occupying two 3/4-inch spaces in a Type CH load center. Use wiring per the datasheet: (2) #14-10 AWG copper or aluminum conductors for the two poles and (1) #14-8 AWG for a pigtail or auxiliary connection if required. Confirm the wires are properly seated in lugs, tighten to manufacturer torque specs, and verify full engagement before re-energizing. The common-trip design ensures both poles disconnect together, improving safety and compliance.
CHF215 is a 15 A, two-pole, 120/240 V circuit breaker with a 10 kAIC interrupt rating. This combination supports standard residential and light commercial loads, offers strong short-circuit protection, and aligns with NEC requirements for typical branch circuits. The UL 489 certification confirms conformance to recognized safety standards, while HACR rating broadens the scope to include motor and HVAC equipment without nuisance trips.
Yes. The CHF215 is explicitly designed for Type CH Loadcenters and two-pole configurations, providing common-trip protection across circuits. Its 120/240 V rating and compatibility with CH panels make it well-suited for homes and small businesses, delivering reliable protection with straightforward installation and maintenance. This makes it a solid choice for new installations and panel upgrades alike.
The CHF215 carries UL 489 certification and is HACR rated. UL 489 confirms compliance with a widely adopted standard for low-voltage circuit breakers, while HACR rating ensures suitability for motors and heating/control loads. Together, these certifications simplify code approvals, inspections, and documentation for residential and light commercial projects, reducing the risk of non-compliance and rework.
The CHF215 carries a limited lifetime residential warranty and a 1-year commercial warranty, reflecting Eaton’s confidence in long-term reliability. This coverage helps lower total cost of ownership by reducing replacement costs for common wear items in residential settings, while the one-year commercial term provides essential coverage for business-critical applications. Datasheets and warranty guides are available to support maintenance planning.
