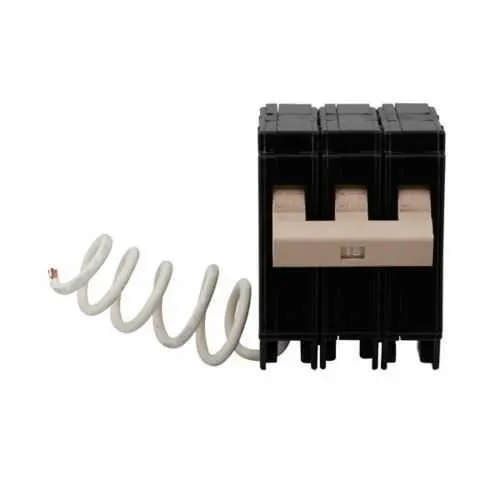

Eaton CHF215SW Thermal Magnetic Circuit Breaker - UL 489
Part Number: CHF215SW
Quick Summary
Eaton CHF215SW circuit breaker delivers reliable thermal magnetic protection for 120/240 V circuits in residential and light commercial panels. Engineers and buyers often struggle with nuisance trips, space constraints, and panel compatibility when selecting protection devices, and this model addresses those concerns with a compact CH type design. The unit carries UL 489 certification, underscoring safety and performance expectations in critical installations. Designed for CH series panels, it supports 3/4 in neutral switching, helping maintain safe, code-compliant neutrals. With a compact footprint and clear electrical ratings, it also reduces total installed cost while improving maintainability and field serviceability for contractors and facility managers.
Product Information
Extended Description
CHF215SW Eaton: Eaton CH Thermal magnetic circuit breaker, Type CH 3/4 in Neutral Switching Circuit Breaker, 15 A
Product Name
Eaton CH thermal magnetic circuit breaker
Catalog Number
CHF215SW
UPC
786685384801
Product Length/Depth
4 in
Product Height
2.5 in
Product Width
2 in
Product Weight
0.6 lb
Warranty
Limited lifetime residential, 1 year commercial
Certifications
UL 489
Amperage Rating
15 A
Voltage rating
120/240 V
Feature: Thermal magnetic protection provides both short-circuit and overcurrent protection, reducing nuisance trips and protecting delicate loads. Business Impact: Improves equipment uptime and lowers maintenance costs by preventing unwarranted outages in critical lighting and motor circuits. Application: Ideal for residential service panels and light commercial panels where reliable protection and quick reset are essential. The utilization of a CH 3/4 in neutral switching design supports straightforward integration in panels with shared neutrals, minimizing wiring complexity and reducing installation time. Feature: 15 A amperage rating with 120/240 V voltage rating, positioned for standard branch circuits in homes and small businesses. Business Impact: Enables precise protection that aligns with typical circuit loads, improving safety margins and compliance with electrical codes. Application: Suitable for branch circuits feeding lighting, outlets, and small machinery in utility closets and service panels. Feature: Compact form factor—4 in length, 2 in width, 2.5 in height, weighing 0.6 lb. Business Impact: Saves panel space, accelerates installation, and simplifies retrofit projects in crowded electrical enclosures. Application: Useful in limited-depth distribution boards and shared bus assemblies commonly found in renovations and new builds. Feature: UL 489 listed certification confirms adherence to a rigorous standard for low-voltage circuit breakers. Business Impact: Supports procurement and regulatory compliance across North American markets, reducing risk during audits. Application: Mandatory for many commercial and industrial installations where formal certification is a prerequisite. Feature: Compatibility with Eaton CH series and straightforward maintenance, including a clear catalog number CHF215SW and UPC 786685384801. Business Impact: Streamlines stocking, replacement planning, and warranty servicing, lowering total cost of ownership. Application: Ideal for ongoing maintenance programs and managed procurement in building systems.
Get a Quick Quote for a Eaton CHF215SW
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CHF215SW?
Enquire Now
FAQs
CHF215SW is a CH type thermal magnetic circuit breaker designed for 120/240 V circuits and 15 A protection within Eaton CH series panels. It supports 3/4 inch neutral switching and fits standard residential and light commercial panelboards, simplifying retrofits and new installations while maintaining UL 489 compliance.
The CHF215SW provides 15 A of overcurrent protection with a voltage rating of 120/240 V. As a thermal magnetic breaker, it offers stable instantaneous and inverse-time tripping for a wide range of loads, reducing nuisance trips on typical lighting and outlet circuits and safeguarding motors and compressors in light commercial environments.
Yes. With a 15 A rating and 120/240 V compatibility, CHF215SW is well-suited for residential service panels and light commercial distribution boards. Its compact dimensions (4 in x 2 in x 2.5 in) maximize space in crowded enclosures, while maintaining CH series interoperability.
CHF215SW is UL 489 listed, meeting the recognized standard for low-voltage circuit breakers. This certification supports safety, performance, and code compliance in North American installations. The catalog number CHF215SW and UPC 786685384801 further aid traceability and procurement accuracy.
The breaker’s limited lifetime residential warranty and 1-year commercial warranty, combined with Eaton’s CH series compatibility, reduce lifecycle costs by simplifying replacements and service cycles. Its compact form factor saves panel space, potentially lowering installation labor and retrofit costs while ensuring reliable protection over the equipment’s operational life.
