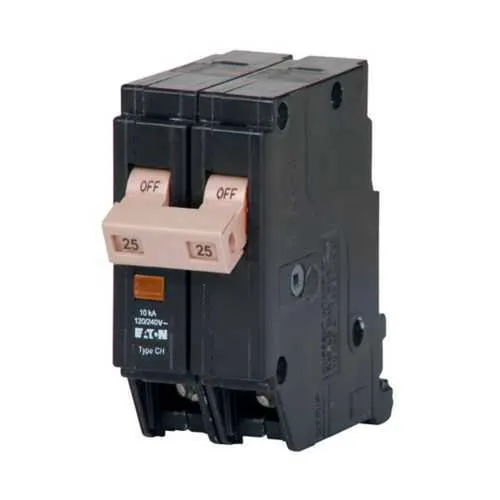

Eaton CHF225SW Circuit Breaker - UL 489 Listed
Part Number: CHF225SW
Quick Summary
The Eaton CH thermal magnetic circuit breaker delivers reliable overcurrent protection for panel assemblies and load centers. In fast-paced industrial environments, selecting a plug-on breaker that supports mixed wire sizes and provides a clear trip status helps reduce downtime and service calls. This model is UL Listed to UL 489 and HACR rated, ensuring code-compliant operation in commercial panels. Designed for Type CH Loadcenters and two-pole applications, CHF225SW offers trusted performance with straightforward installation and long-term value for OEMs and maintenance teams. Its compact 1 lb form and compatibility with both solid and stranded wire simplify field wiring and future substitutions.
Product Information
Extended Description
CHF225SW Eaton: Eaton CH thermal magnetic circuit breaker,Type CHF plug-on circuit breaker,25 A,10 kAIC,Two-pole,120V,CHF,Trip flag, common breaker trip,(1) #14-8 AWG, (2) #14-10 AWG Cu/Al,CHF,Type CH Loadcenters,Switching neutral
Product Name
Eaton CH thermal magnetic circuit breaker
Catalog Number
CHF225SW
UPC
786680117046
Product Length/Depth
1.5 in
Product Height
3.5 in
Product Width
5 in
Product Weight
1 lb
Warranty
Limited lifetime
Compliances
HACR Rated
Certifications
UL Listed UL 489
Catalog Notes
Solid and stranded wire can be used together.
Used with
Type CH Loadcenters
Type
Type CHF plug-on circuit breaker
Amperage Rating
25 A
Voltage rating
120 V
Trip Type
Trip flag
Circuit breaker type
CHF
Mounting Method
Plug-on
Neutral
Switching neutral
Interrupt rating
10 kAIC
Main circuit breaker
CHF
Wire size
(2) #14-10 AWG Cu/Al (1) #14-8 AWG
Number of poles
Two-pole
Feature: 10 kAIC interrupt rating and thermal magnetic technology deliver consistent overload protection while minimizing nuisance trips. Business Impact: Supports reliable coordination in distribution panels and reduces the risk of arc-flash events by providing a decisive trip under short-circuit conditions. Application: Ideal for 120 V commercial and light industrial circuits protected within Type CH Loadcenters using the CHF family. Feature: Plug-on mounting design accelerates installation and replacement in crowded panels. Business Impact: Cuts field labor time, decreases mis-wiring risk, and enables faster swaps during maintenance. Application: Suitable for Type CH Loadcenters and CHF series breakers in retrofit or OEM builds. Feature: Wire compatibility supports mixed conductor types. Business Impact: Solid and stranded wire can be used together, reducing stocking complexity and enabling faster terminations up to the catalog specification (2) #14-10 AWG Cu/Al and (1) #14-8 AWG. Application: Common in mixed-metal facilities and service upgrades. Feature: Trip flag and neutral switching. Business Impact: Clear trip indication improves troubleshooting, safety, and maintenance planning. Application: Aligns with standard CH/CHF wiring practices in load centers. Feature: Compliance and warranty support. Business Impact: UL Listed to UL 489 and HACR rated ensures regulatory compliance; Limited lifetime warranty adds long-term value for OEMs and integrators. Application: Widely adopted in commercial and industrial panel builds for durable protection. This combination supports scalable protection across growing facilities while maintaining compliance.
