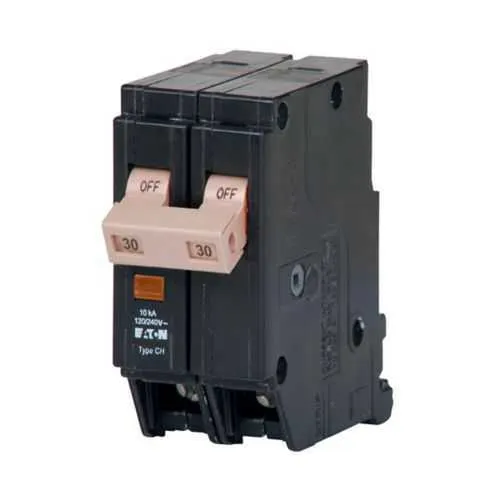

Eaton CHF230 Thermal Magnetic Circuit Breaker - UL 489
Part Number: CHF230
Quick Summary
Eaton CHF230 thermal magnetic circuit breaker protects residential and light commercial panels with reliable overcurrent protection. Engineers often struggle with space constraints and selecting a breaker that matches CH loadcenters and wiring needs. This device is UL 489 listed and HACR rated, delivering safe performance at 120/240 V with a two-pole common-trip design. Choosing CHF230 yields consistent protection, compact installation, and alignment with industry standards for HVAC, lighting, and small commercial panels. Its 10 kAIC interrupt rating minimizes fault propagation, reducing downstream equipment risk and maintenance costs. The device accepts standard #14 wires and fits Type CH Loadcenters in two 3/4-Inch spaces, optimizing overall panel density.
Product Information
Extended Description
CHF230 Eaton: Eaton CH Thermal magnetic circuit breaker, Type CHF 3/4-Inch standard circuit breaker, 30 A, 10 kAIC, Two-pole, 120/240V, CHF, Trip flag, common breaker trip, (1) #14-8 AWG, (2) #14-10 AWG Cu/Al, CHF, Type CH Loadcenters
Product Name
Eaton CH thermal magnetic circuit breaker
Catalog Number
CHF230
UPC
786685361901
Product Length/Depth
1.5 in
Product Height
2.6 in
Product Width
0.75 in
Product Weight
0.28 lb
Warranty
Limited lifetime residential, 1 year commercial
Compliances
HACR Rated
Certifications
UL 489
Catalog Notes
HACR Rated. Two-Pole 120/240V Common Trip Requires Two 3/4-Inch Spaces. With Trip Indication
Used with
Type CH Loadcenters
Type
Type CHF 3/4-Inch standard circuit breaker
Amperage Rating
30 A
Voltage rating
120/240 V
Trip Type
Trip flag
Circuit breaker type
CHF
Interrupt rating
10 kAIC
Main circuit breaker
CHF
Wire size
(1) #14-8 AWG (2) #14-10 AWG Cu/Al
Number of poles
Two-pole
Residential and Light Commercial, Metering Products, Volume 1 Tab 4
Eaton Specification Sheet - CHF230
Eaton type CH circuit breaker limited warranty June 2024
Feature: Two-pole common-trip design ensures simultaneous disconnect for both poles, reducing arc exposure and enabling safer panel maintenance. Business impact: Improves personnel safety and simplifies compliance with electrical codes during service work. Application: Ideal for Type CH Loadcenters in residential and light commercial applications where space is at a premium and reliability is critical. Feature: 30 A amperage rating with 10 kAIC interrupt capacity provides solid protection against short circuits while minimizing nuisance trips. Business impact: Protects wiring and devices, reduces downtime, and supports longer equipment life. Application: Suitable for branch circuits feeding HVAC, lighting, and small machinery in compact panels. Feature: UL 489 certification and HACR rating certify performance for HVAC and general purpose panels. Business impact: Streamlines procurement and compliance across building systems. Application: Commonly used in CH loadcenters and residential distribution panels. Feature: Wire-size compatibility supports (1) #14-8 AWG and (2) #14-10 AWG Cu/Al, enabling flexible field wiring. Business impact: Simplifies installation and reduces inventory variability. Application: Appropriate for mixed conductor types in modern electrical closets. Feature: Trip flag and catalog notes indicate when the breaker has tripped, aiding quick diagnostics. Business impact: Accelerates fault localization and reduces mean time to repair. Application: Widely used in service panels requiring clear trip indication in renovation or new builds.
