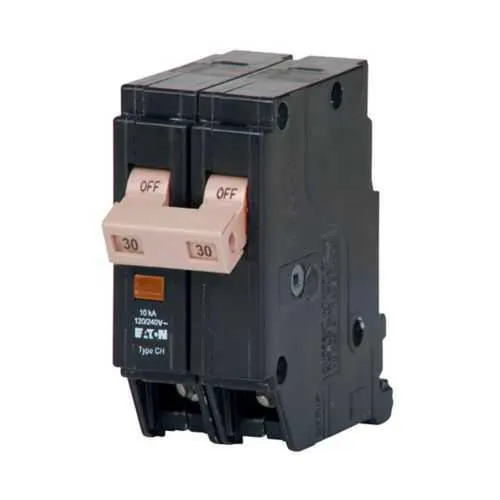

Eaton CHF230ST CH Thermal Magnetic Breaker - UL 489
Part Number: CHF230ST
Quick Summary
The Eaton CHF230ST CH thermal-magnetic circuit breaker protects 120/240V panels in light commercial and residential installations. Engineers often battle nuisance trips, unpredictable fault behavior, and crowded load centers when upgrading for higher short-circuit protection across mixed loads for data centers, small commercial warehouses, and service panels. Certified UL 489 and HACR-rated, with a robust common-trip two-pole design, 10 kAIC interrupt rating, and HACR compatibility for motors, it delivers reliable protection in diverse applications. Designed for Type CH load centers and offering optional shunt-trip, trip indication, and HACR suitability, it streamlines panel upgrades, ensures discrimination with upstream devices, and supports compliant 120/240V distribution standards.
Product Information
Extended Description
CHF230ST Eaton: Eaton Type CHF 3/4-inch Standard Circuit Breaker, Two-Pole, 30A, 120/240V, 10 kAIC, (1) #14-8, (2) #14-10 AWG Cu/Al 60°C or 75°C, Shunt Trip
Product Name
Eaton CH thermal magnetic circuit breaker
Catalog Number
CHF230ST
UPC
786685384849
Product Length/Depth
4.8 in
Product Height
3.5 in
Product Width
3.5 in
Product Weight
1 lb
Warranty
Limited lifetime residential, 1 year commercial
Certifications
UL 489
Catalog Notes
HACR Rated. Two-Pole 120/240V Common Trip Requires Two 3/4-Inch Spaces. With Trip Indication
Used with
Type CH Loadcenters
Type
Type CHF 3/4-inch Standard Circuit Breaker
Special features
Shunt Trip
Amperage Rating
30 A
Voltage rating
120/240 V
Trip Type
Common
Interrupt rating
10 kAIC
Main circuit breaker
CH
Wire size
(2) #14-10 AWG Cu/Al (1) #14-8 AWG
Number of poles
Two-pole
Residential and Light Commercial, Metering Products, Volume 1 Tab 4
Eaton Specification Sheet - CHF230ST
Eaton type CH circuit breaker limited warranty June 2024
Feature: Thermal-magnetic protection combines instantaneous magnetic tripping with a thermal element to differentiate overload from short circuits, delivering precise discrimination for 120/240V circuits. Business impact: this reduces nuisance trips, minimizes unplanned downtime, and extends equipment life in critical panels. Application: ideal for Type CH load centers in residential and light commercial installations where reliable, code-compliant protection and straightforward reset are essential. Feature: Two-pole construction with a 30 A rating provides coordinated protection across both legs of the 120/240V feed. Business impact: the 10 kAIC interrupt rating supports robust fault current handling, improving panel reliability and safety in commercial spaces with higher short-circuit potential. Application: ideal for service panels and load centers requiring common-trip protection and clear trip indication in quick-fault scenarios. Feature: Space-efficient CHF 3/4-inch-wide frame supports two-pole protection in compact panels. Business impact: the design reduces panel depth requirements and allows proper wire routing with standard Cu/Al sizes, saving installation time and reducing labor costs. Application: supports Type CH Load Centers and common wiring schemes, with wiring limits of two #14-10 AWG Cu/Al conductors and one #14-8 AWG for start-up and control feeds. Feature: UL 489 certification and HACR rating align with electrical codes and guidelines for motor circuits. Business impact: ensures compliance during inspections, reduces retrofit risk, and supports safer automation environments. Application: ideal for residential, light commercial, and mechanical equipment panels that demand dependable protection for motors and stationary loads. Feature: Shunt-trip option, trip indication, and Type CH compatibility streamline installation and future-proof panel upgrades. Business impact: enables remote or safety-interlocked shutdowns, improves fault response, and provides clear diagnostics for maintenance teams. Application: works with Type CH Load Centers, supports 120/240V circuits, and matches Eaton’s CH family ecosystem with a limited lifetime residential warranty and 1-year commercial coverage.
Get a Quick Quote for a Eaton CHF230ST
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CHF230ST?
Enquire Now
FAQs
CHF230ST is a Type CH compatible, 4.8 inch deep, 3.5 inch high and 3.5 inch wide two-pole breaker designed for CH load centers. It requires two 3/4-inch spaces and accepts two #14-10 AWG Cu/Al conductors plus one #14-8 AWG for start-up circuits. It provides a common-trip 120/240V protection with a 30 A rating and UL 489 approval.
Key specs include a 30 A amperage rating, 120/240 V voltage rating, two-pole configuration, 10 kAIC interrupt rating, and common trip. It is HACR rated and UL 489 certified, with shunt-trip capability as a special feature and one CH main circuit breaker designation in Type CH load centers.
Yes. The CHF230ST offers a shunt-trip option and trip indication, enabling remote or safety-interlocked shutdowns and clear diagnostics for maintenance teams. This enhances safety and fault response in panels that require rapid intervention and verified trips.
The CHF230ST carries UL 489 certification and HACR rating. UL 489 confirms it meets standard circuit-breaker requirements for safety and performance, while HACR compatibility ensures suitability for motors and related electrical equipment, supporting compliance during inspections and reducing retrofit risk in motor-driven applications.
This device carries a limited lifetime residential warranty and a 1-year commercial warranty, reflecting its durability for home installations and reliability for light commercial panels. The long-term value comes from robust protection, confirmed interoperability with Type CH load centers, and reduced maintenance costs from fewer nuisance trips.
