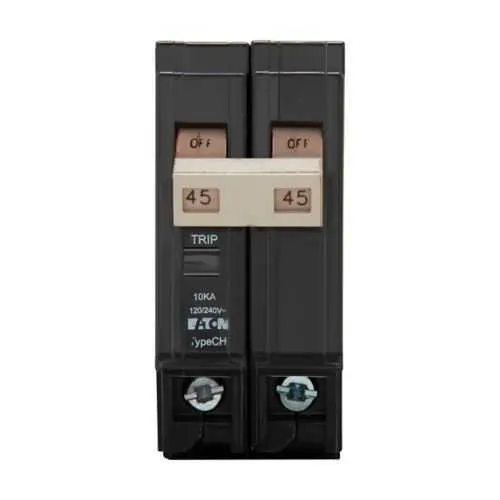

Eaton CHF245CS Thermal Magnetic Circuit Breaker - UL 489
Part Number: CHF245CS
Quick Summary
Eaton CHF245CS Thermal Magnetic Circuit Breaker provides reliable overcurrent protection for 2-pole 120/240V panels in commercial and light industrial distributions. Installers often face nuisance trips and sourcing challenges when matching CH-type breakers to existing Eaton CH panels, leading to downtime and project delays. This unit is UL 489 listed and rated for 10 kAIC, with a 45 A current rating, reinforcing safe, code-compliant operation in demanding environments. Its clamshell packaging and CH-series compatibility simplify stocking and field replacement, reducing installation time and material handling. By aligning with Eaton CH protection schemes, this breaker delivers predictable coordination, improved mean time between outages, and lower total cost of ownership for industrial facilities and service contractors.
Product Information
Extended Description
CHF245CS Eaton: Eaton CH Thermal magnetic circuit breaker, Type CHF, 45A / 2P 120/240V 10KAIC, clamshell
Product Name
Eaton CH thermal magnetic circuit breaker
Catalog Number
CHF245CS
UPC
786685545639
Product Length/Depth
3.5 in
Product Height
3 in
Product Width
1.5 in
Product Weight
1 lb
Warranty
Limited lifetime residential, 1 year commercial
Certifications
UL 489
Amperage Rating
45 A
Voltage rating
120/240 V
Thermal magnetic trip mechanism is designed to provide both instantaneous magnetic fault interruption and delayed thermal protection, reducing nuisance trips while maintaining selective coordination in feeders and branch circuits. This translates to fewer unexpected outages and quicker fault isolation in commercial panels, improving overall system reliability for CH-series installations. The 45 A, 120/240 V, 2-pole design supports common branch-circuit and lighting controls, enabling straightforward replacement in standard CH panels and ensuring consistent protection across circuits. With a 10 kAIC short-circuit rating, the CHF245CS withstands high fault currents, enhancing safety and compliance in service entrances and distribution panels while protecting valuable equipment. The unit’s clamshell packaging and CH-type compatibility streamline stocking, procurement, and field swaps, reducing downtime during maintenance and retrofits. Warranty and support from Eaton add to long-term value, lowering total cost of ownership for facilities managers and contractors working in industrial environments.
Get a Quick Quote for a Eaton CHF245CS
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CHF245CS?
Enquire Now
FAQs
CHF245CS is a two-pole unit designed for CH-series panels and accepts standard CH-type mounting and bus connections. It weighs about 1 lb and has dimensions of 3.5 in length, 3 in height, and 1.5 in width, enabling straightforward field swaps or retrofits. Ensure proper alignment with the panel’s bus bars and verify space for clamshell packaging during replacement.
The CHF245CS is rated for 45 A at 120/240 V, two-pole operation, and provides a 10 kAIC short-circuit current rating. It carries UL 489 certification, confirming compliance with low-voltage protection standards. These specs make it suitable for protecting branch circuits and feeders in commercial and light industrial installations.
CHF245CS is a thermal magnetic circuit breaker intended for general overcurrent protection in CH-series panels. For motor protection, pair it with motor-rated accessories or use a dedicated motor overload device where appropriate. Its 2P 120/240 V design fits typical branch circuits and lighting feeders, offering reliable protection without requiring specialized motor starters.
The CHF245CS carries UL 489 certification, confirming compliance with established safety and performance criteria for circuit breakers. This certification supports code-compliant installation in commercial and industrial facilities and aligns with Eaton’s CH-series product family requirements for coordinated protection in panels.
With CH-series compatibility, straightforward replacement, and a clamshell packaging design, maintenance swaps are quick and predictable, reducing downtime. The unit’s 10 kAIC rating enhances fault tolerance, lowering risk of cascading failures during faults. A reliable, durable component also translates to lower maintenance costs and improved uptime for facilities managers and service contractors.
