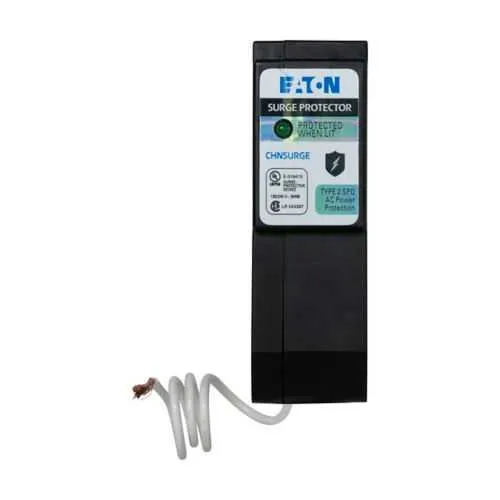

Eaton CHNSURGECS Plug-on Module Surge Protector - UL 1449
Part Number: CHNSURGECS
Quick Summary
The Eaton CHNSURGECS surge protector guards panel-level power rails by plugging onto a Type CH module. Power disturbances and surges can trigger costly downtime and unpredictable equipment failures, especially in demanding environments. UL 1449 and cUL certifications ensure compliance with global safety standards, while the device’s 50/60 Hz rating supports a variety of industrial power systems. As a plug-on module SPD, it streamlines installation and delivers reliable L-N and L-L protection without invasive rewiring, helping OEMs and maintenance teams reduce risk, extend service life, and protect critical control assets.
Product Information
Extended Description
CHNSURGECS Eaton: Eaton Type CH circuit breaker surge protective device, Clamshell - Two Pole Surge Protective Device
Product Name
Eaton Type CH plug on module surge protection device
Catalog Number
CHNSURGECS
UPC
786689353728
Product Length/Depth
2.955 in
Product Height
3.3 in
Product Width
1.48 in
Product Weight
0.45 lb
Certifications
UL 1449 cUL Certified
Type
Type CH
Frequency rating
50/60 Hz
Interrupt rating
10 kAIC
Nominal Discharge Current
3 kA
Protection
L-N, L-L
Measured limiting voltage
600 V
Maximum continuous operating voltage
150 V L-N, 300 V L-L
Surge current
18 kA
Short-circuit rating
10 kA
Feature → The CHNSURGECS uses a compact Type CH plug-on module design that fits seamlessly into existing Eaton CH panels, enabling quick retrofits and minimal downtime. Benefit → This reduces commissioning time and field labor costs while maintaining high protection levels for sensitive automation equipment. Application → Ideal for machine control cabinets and panel boards in manufacturing settings where space is at a premium and uptime is critical. Feature → It provides robust electrical ratings including 50/60 Hz operation, 10 kAIC interrupt rating, 3 kA nominal discharge current, and 18 kA surge current. Benefit → Ensures fast response to transients, lowers the risk of insulation failure, and minimizes unplanned outages in high-demand environments. Application → Suitable for PLCs, drives, and relays in automation racks. Feature → Protection for L-N and L-L with a measured limiting voltage of 600 V. Benefit → Delivers predictable performance across typical 120/208/240 V networks, helping maintain control reliability. Application → Suitable for panel boards feeding mixed voltages in industrial facilities. Feature → Compact physical footprint (2.955 in L, 3.3 in H, 1.48 in W) and 0.45 lb weight. Benefit → Easier installation in crowded panels and faster replacement without removing other components. Application → Fits two-pole configurations in Eaton Type CH assemblies. Feature → Certifications UL 1449 and cUL Certified. Benefit → Supports compliance with global safety standards and audit-ready documentation for electrical safety programs. Application → Required for UL-listed electrical protection schemes in North America and internationally.
