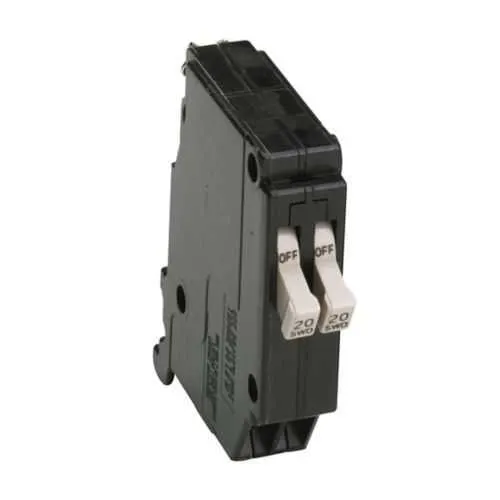

Eaton CHNT2020CS Circuit Breaker - UL489, 10 kAIC
Part Number: CHNT2020CS
Quick Summary
The Eaton CHNT2020CS is a thermal magnetic circuit breaker designed for residential and light commercial panelboards. Replacing aging or incompatible breakers in legacy panels can cause downtime and fit issues. UL 489 certification, HACR rating, and Switching Duty Rated construction provide safety and performance assurances. Designed for plug-on replacement in CH loadcenters and compatible pre-1968 structures, it simplifies retrofits, reduces spare-parts complexity, and supports compliant, reliable protection. For OEMs and distributors, the CHNT2020CS provides consistent ordering, inventory planning, and streamlined service levels. Its 20 A rating and 120/240 V capability align with common branch circuits in many commercial and residential installations, delivering reliable protection with minimal risk.
Product Information
Extended Description
CHNT2020CS Eaton: Eaton CH thermal magnetic circuit breaker,Type CHNT non-CTL plug-on replacement circuit breaker clamshell pack,Clamshell pack,20 A,10 kAIC,Single-pole,120/240V,CHNT,#14-8 AWG Cu/Al,Q30,CHNT
Product Name
Eaton CH thermal magnetic circuit breaker
Catalog Number
CHNT2020CS
UPC
786685491080
Product Length/Depth
6 in
Product Height
1.5 in
Product Width
4 in
Product Weight
0.1 lb
Warranty
Limited lifetime residential, 1 year commercial
Certifications
UL 489
Catalog Notes
Switching Duty Rated, HACR Rated, Single-Pole Requires One 2/4-Inch Space
Used with
As replacement in loadcenters built prior to 1968 and within the current style (2) 8 circuit loadcenters
Type
Type CHNT non-CTL plug-on replacement circuit breaker clamshell pack
Special features
Clamshell pack
Amperage Rating
20-20A
Voltage rating
120/240 V
Circuit breaker type
CH
Mounting Method
Plug-on
Interrupt rating
10 kAIC
Main circuit breaker
CHNT
Wire size
#14-8 AWG Cu/Al
Number of poles
Single-pole
Quantity
30
Residential and Light Commercial, Metering Products, Volume 1 Tab 4
Eaton Specification Sheet - CHNT2020CS
Eaton type CH circuit breaker limited warranty June 2024
Feature a CHNT non-CTL plug-on replacement circuit breaker that mounts directly in CH loadcenters. Business Impact: reduces panel downtime and speeds retrofits for aging electrical systems. Application: ideal for legacy Eaton panelboards and pre-1968 installations where a precise fit is essential. Feature a 20 A rating at 120/240 V with a 10 kAIC interrupt rating. Business Impact: protects circuits against faults while allowing safe, rapid service and compliance with UL 489. Application: supports standard lighting and receptacle circuits in residential and light commercial builds. Feature clamshell pack packaging for safe handling and shipping. Business Impact: minimizes damage during transit and simplifies inventory management. Application: convenient for distributors and technicians stocking replacement parts. Feature compatibility with #14-8 AWG Cu/Al wires and single-pole mounting. Business Impact: broadens wiring compatibility and speeds installation in mixed wiring environments. Application: suitable for a wide range of branch circuits. Feature Switching Duty Rated and HACR rating. Business Impact: ensures reliable performance with HVAC loads and other motorized equipment; improves protection during start-up transients. Application: practical for commercial spaces with mixed loads. Feature UL 489 certification. Business Impact: meets recognized safety standards, easing approvals during modernization projects. Application: essential for code-compliant installations across residential and light commercial sectors.
