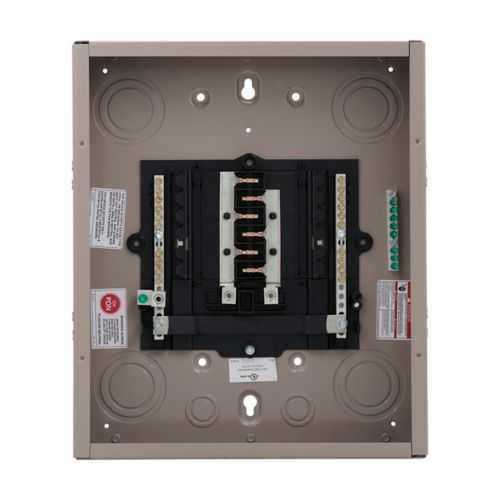

Eaton CHP14B100X1 Loadcenter - 10 kAIC UL50/UL67
Part Number: CHP14B100X1
Quick Summary
CHP14B100X1 Loadcenter delivers 100 A main-breaker distribution for 120/240 V commercial use. Engineers often face space constraints and complex wiring when upgrading panels, but this unit combines ample circuit capacity with a compact footprint to simplify installation. This enclosure carries UL 50 and UL 67 certifications, reinforcing enclosure safety and performance in indoor environments. The metallic NEMA 1 chassis, copper bus, and X1 cover support durable operation, while a limited lifetime warranty provides long-term protection for critical infrastructure. By aligning with common enclosures & electrical infrastructure standards, CHP14B100X1 helps contractors meet code requirements and reduce downtime during panel retrofits or new installations.
Product Information
Extended Description
CHP14B100X1 Eaton: Eaton CH main breaker loadcenters, Main breaker, 100 A, X1, Copper, X1, NEMA 1, Metallic, 10 kAIC, CH, 28, Single-pole, 14, Two hots, a neutral and a ground, Single-phase, #6-1/0 AWG, 120/240 V
Product Name
Eaton CH main breaker loadcenter
Catalog Number
CHP14B100X1
UPC
786689055134
Product Length/Depth
18.75 in
Product Height
3.88 in
Product Width
14.31 in
Product Weight
11.1 lb
Warranty
Limited lifetime
Certifications
UL 50 UL 67
Type
Main breaker
Amperage Rating
100 A
Bus material
Copper
Cover
X1
Main circuit breaker
CH
Number of circuits
28
Number Of Poles
Single-pole
Number of spaces
14
Phase
Single-phase
Wire size
#6-1/0 AWG
Voltage rating
120/240 V
Box size
X1
Enclosure
NEMA 1
Enclosure material
Metallic
Interrupt rating
10 kAIC
Number of wires
Two hots, neutral and ground
AFCI Educational Video
Eaton Specification Sheet - CHP14B100X1
Eaton type CH circuit breaker limited warranty June 2024
Feature → Business Impact → Application: CHP14B100X1 provides a 100 A main breaker and a 28-circuit capacity across 14 spaces, enabling clear load segregation and organized wiring. This configuration reduces retrofit costs and downtime, making it ideal for moderate-to-large commercial panels, retail spaces, and light industrial installations. Feature → Business Impact → Application: Copper bus material delivers lower resistance and improved conductivity, translating to truer fault clearing and more reliable performance on high-demand feeders. This minimizes energy losses and enhances system uptime in manufacturing lines and service areas where steady power is essential. Feature → Business Impact → Application: NEMA 1 metallic enclosure provides rugged indoor protection and straightforward mounting, supporting safe operation in electrical rooms, offices, and retail environments with minimal enclosure maintenance. Feature → Business Impact → Application: The X1 cover design simplifies maintenance access and future upgrades, reducing service time during inspections and retrofits while ensuring secure, code-compliant installations. Feature → Business Impact → Application: UL 50 and UL 67 certifications, combined with a 10 kAIC interrupt rating, deliver proven safety and reliability for commercial power distribution, helping you meet regulatory demands and protect critical loads in daily operations.
Get a Quick Quote for a Eaton CHP14B100X1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CHP14B100X1?
Enquire Now
FAQs
CHP14B100X1 is a 28-circuit, 14-space main-breaker loadcenter designed for single-phase 120/240 V service in indoor environments. It uses a copper bus and a CH main breaker, with a NEMA 1 metallic enclosure and X1 cover. Ensure panel location allows indoor mounting, proper wiring clearances, and conductor size up to #6-1/0 AWG for compliant installation.
The CHP14B100X1 provides a 10 kAIC interrupt rating, enabling reliable short-circuit protection for typical commercial loads. It supports 28 circuits across 14 spaces, with a 100 A main breaker (CH) for centralized control. This configuration is suited for load centers in offices, retail, and light manufacturing environments.
Yes. The CHP14B100X1 is purpose-built for commercial and light-industrial power distribution, offering a compact footprint with ample circuit capacity. Its NEMA 1 metallic enclosure and copper bus support durable indoor installations, while UL 50/UL 67 certifications help meet code requirements for indoor service panels.
This loadcenter carries UL 50 and UL 67 certifications, confirming enclosure integrity and safe operation for indoor electrical systems. These certifications streamline regulatory approvals, support compliance during inspections, and provide assurance that the enclosure and main-breaker assembly meet recognized safety standards.
Eaton backs CHP14B100X1 with a limited lifetime warranty, reflecting confidence in long-term performance. Documentation and specification sheets are available from Eaton, and downloadable resources cover installation, maintenance, and compliance considerations, helping optimize lifecycle cost and minimize downtime during upgrades or replacements.
