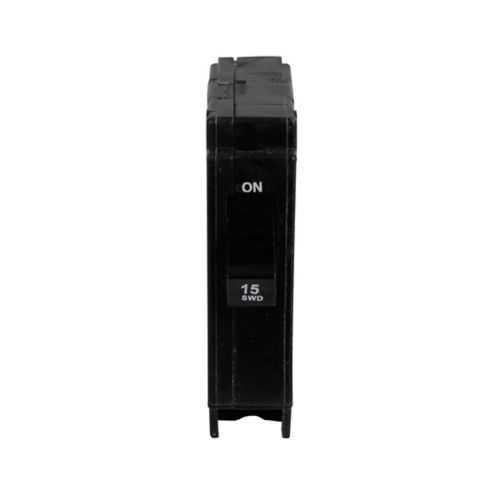

Eaton CHP150 CHP Plug-in Circuit Breaker UL489
Part Number: CHP150
Quick Summary
Eaton CHP150 is a thermal magnetic circuit breaker protecting Type CH load centers in commercial panels. Engineers often confront nuisance trips, limited compatibility, and costly downtime when upgrading protection in CH load centers. UL 489 certification and HACR rating ensure code compliance and safe HVAC and motor circuits. This compact plug-in breaker delivers reliable protection with 50 A capacity, 120/240 V operation, and 10 kAIC interrupt rating. Its compatibility with Type CH Loadcenters and Cu/Al wiring supports quick installs and efficient panel upgrades. For maintenance teams, the CHP150 simplifies spare-part stocking with standardized CHP-family components. That supports faster changeouts and lower lifecycle costs.
Product Information
Extended Description
CHP150 Eaton: Eaton CH thermal magnetic circuit breaker,Type CHP plug-in circuit breaker,50 A,10 kAIC at 120/240 Vac,Single-pole,120/240V,CHP,#14-1/0 AWG Cu/Al,CHP,Type CH Loadcenters
Product Name
Eaton CH thermal magnetic circuit breaker
Catalog Number
CHP150
UPC
782113923680
Product Length/Depth
5 in
Product Height
3 in
Product Width
1 in
Product Weight
0.2 lb
Certifications
UL 489
Catalog Notes
HACR Rated
Used with
Type CH Loadcenters
Type
Type CHP plug-in circuit breaker
Amperage Rating
50 A
Voltage rating
120/240 V
Circuit breaker type
CH
Interrupt rating
10 kAIC at 120/240 Vac
Main circuit breaker
CHP
Wire size
#14-1/0 AWG Cu/Al
Number of poles
Single-pole
Feature: Thermal-magnetic operation provides precise overload and short-circuit protection. Business Impact: Reduces nuisance trips and minimizes unplanned downtime, protecting critical equipment and processes. Application: Ideal for Type CH Loadcenters in commercial electrical panels demanding reliable protection. Feature: 50 A rating at 120/240 V single-pole configuration. Business Impact: Aligns with common branch circuit loads, simplifying wiring layout and panel planning while supporting code-compliant installations. Application: Suitable for door-mounted or interior CH Loadcenters using #14-1/0 AWG Cu/Al wiring. Feature: HACR rated and UL 489 certified. Business Impact: Facilitates code compliance, safer HVAC and motor-control circuits, and smoother inspections. Application: Broad use in residential and light commercial environments. Feature: 10 kAIC interrupt rating at 120/240 V. Business Impact: Higher fault-current protection reduces equipment damage and downstream downtime. Application: Valuable in power-distribution schemes with elevated fault levels. Feature: Compact physical footprint (5 in x 3 in x 1 in) and light weight (0.2 lb). Business Impact: Eases panel space planning, retrofit projects, and field replacements, cutting installation time. Application: Fits Type CH Loadcenters where space and accessibility are constrained.
Get a Quick Quote for a Eaton CHP150
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CHP150?
Enquire Now
FAQs
Yes. The CHP150 is a Type CHP plug-in circuit breaker designed specifically for Type CH Loadcenters, providing seamless replacement and consistent protection within those panels.
The 10 kAIC interrupt rating indicates the maximum fault current the breaker can interrupt without damage. This enhances protection for circuits subject to higher fault levels and reduces the risk of cascading failures in power distribution.
CHP150 supports Cu/Al wiring from #14 to 1/0 AWG, aligning with common branch-circuit practices and enabling straightforward integration into existing CH Loadcenters.
CHP150 carries UL 489 certification and HACR rating. UL 489 ensures national safety compliance for circuit breakers, while HACR rating is essential for control of HVAC and motor loads, simplifying code adherence during inspections.
Warranty guidance is available through Eaton’s documentation, including the Type CH circuit breaker limited warranty. For ongoing service or replacement parts, refer to Eaton’s warranty PDFs and contact support for coverage details.
