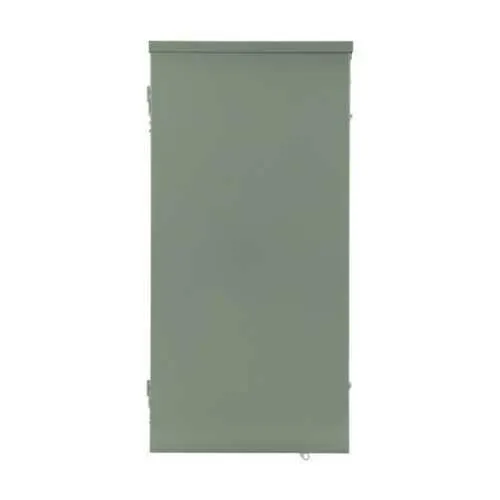

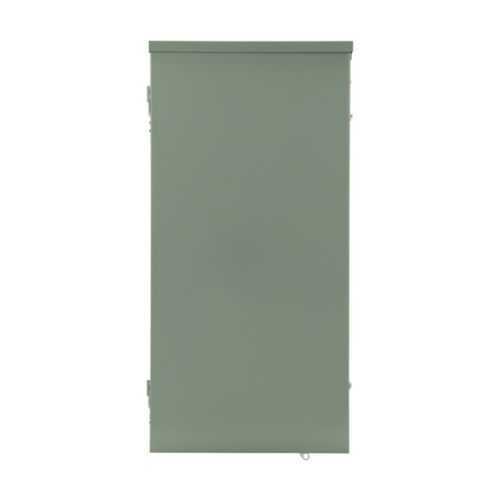

Eaton CHP16B200RF Main Breaker Loadcenter - NEMA 3R
Part Number: CHP16B200RF
Quick Summary
The Eaton CHP16B200RF main breaker loadcenter delivers reliable power distribution for commercial and industrial panels. Designed to minimize field integration hassles, it reduces wiring complexity and downtime during upgrades or expansions. Certifications include UL 67 and UL 50, with a NEMA 3R metallic enclosure that stands up to weather and damp environments. This enclosure is ideal for service equipment planning, with cover included and a CSR main breaker with feed-through lugs option. In addition, the unit offers 16 spaces and 32 circuits in a 200 A, single-phase configuration, engineered for durable copper bus and overhead feed. Aligns with enclosures & electrical infrastructure projects and supports scalable, low-maintenance power distribution.
Product Information
Extended Description
CHP16B200RF Eaton: Eaton CH main breaker loadcenters,Cover included,Main breaker,200A,X5,Copper,NEMA 3R,Metallic,CSR Main Breaker with Feed Through Lugs,16 Spaces,Three-wire,Single-phase,Overhead
Product Name
Eaton CH main breaker loadcenter
Catalog Number
CHP16B200RF
UPC
786689799175
Product Length/Depth
29 in
Product Height
5.19 in
Product Width
14.31 in
Product Weight
26.1 lb
Certifications
UL 67 UL 50
Catalog Notes
Suitable for use as service equipment when not more than six service disconnecting mains are provided or when not used as a lighting and appliance panelboard. Rainproof panels are furnished with hub closure plates. For rainproof hubs.
Special features
Cover included
Type
Main breaker
Amperage Rating
200 A
Bus material
Copper
Main circuit breaker
CSR
Number of circuits
32
Number of spaces
16
Phase
Single-phase
Feed type
Overhead
Box size
X5
Enclosure
NEMA 3R
Enclosure material
Metallic
Number of wires
3
Feature 200 A rating with 16 spaces and 32 circuits delivers sufficient headroom for evolving electrical loads, reducing future panel upgrades and downtime. Business Impact: supports scalable, long-term capacity planning while enabling faster project completion. Application: ideal for commercial and light-industrial panels in distributed power environments. Feature Copper bus minimizes electrical resistance, improving efficiency and reducing heat losses during peak demand. Business Impact: lowers energy waste and improves overall system performance. Application: high-load applications such as motors and controllers in manufacturing lines. Feature CSR main breaker with feed-through lugs provides wiring flexibility and serviceability. Business Impact: facilitates compliant service equipment configurations with up to six service disconnects. Application: retrofit projects and service entrances in industrial facilities. Feature NEMA 3R metallic enclosure offers weather-resilient protection. Business Impact: supports indoor and outdoor installations with durable enclosure protection and reduced maintenance. Application: outdoor panels, entryways, and damp locations. Feature Cover included and rainproof hub options simplify installation. Business Impact: speeds up commissioning and minimizes field components, lowering labor costs. Application: rapid deployment in new builds and retrofits. Feature Box size X5 and overhead feed configuration enable compact yet robust installations. Business Impact: saves wall or cabinet space while maintaining a robust 200 A distribution path. Application: overhead-fed service equipment and compact electrical rooms, common in manufacturing plants and commercial facilities.
