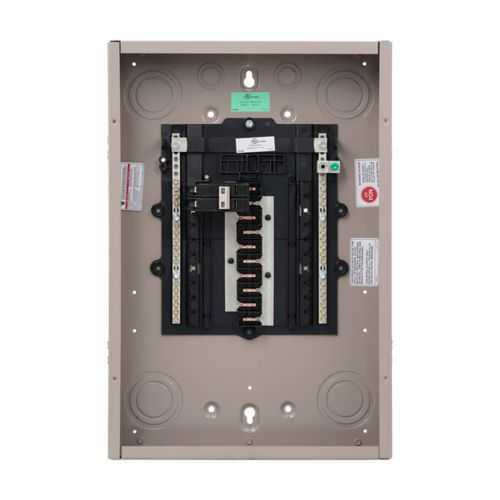

Eaton CHP18B100R Main Breaker Loadcenter - UL 67
Part Number: CHP18B100R
Quick Summary
Eaton CHP18B100R main breaker loadcenter is a robust distribution solution for commercial and industrial panels. Too often, mismatched enclosures or insufficient protection lead to downtime and maintenance headaches. It carries UL 67 and UL 50 listings and a NEMA 3R metallic enclosure, making it suitable for rainproof or outdoor use in challenging environments. As part of Eaton's CH family, this unit supports service equipment configurations with up to six service disconnects, and the 100 A rating with copper bus enables reliable fault current handling while the 18-space, 36-circuit design supports scalable expansion for growing facilities. In short, it aligns with enclosures & electrical infrastructure goals while simplifying procurement and on-site installation.
Product Information
Extended Description
CHP18B100R Eaton: Eaton CH main breaker loadcenters,Cover included,Main breaker,100 A,X2,Copper,NEMA 3R,Metallic,CH,36,18,Three-wire,Single-phase,Overhead,120/240 V
Product Name
Eaton CH main breaker loadcenter
Catalog Number
CHP18B100R
UPC
786689058548
Product Length/Depth
21 in
Product Height
5.19 in
Product Width
14.31 in
Product Weight
22 lb
Warranty
Limited lifetime
Certifications
UL 67 UL 50
Catalog Notes
Suitable for use as service equipment when not more than six service disconnecting mains are provided or when not used as a lighting and appliance panelboard. Rainproof panels are furnished with hub closure plates. For rainproof hubs.
Special features
Cover included
Type
Main breaker
Amperage Rating
100 A
Bus material
Copper
Main circuit breaker
CH
Number of circuits
36
Number of spaces
18
Phase
Single-phase
Feed type
Overhead
Voltage rating
120/240 V
Box size
X2
Enclosure
NEMA 3R
Enclosure material
Metallic
Number of wires
3
AFCI Educational Video
Eaton Specification Sheet - CHP18B100R
Eaton type CH circuit breaker limited warranty June 2024
Feature: The CHP18B100R offers 18 spaces and 36 circuits, delivering a scalable distribution platform for growing loads. Business Impact: This configuration supports future expansion without panel swaps, reducing downtime, project timelines, and procurement complexity. Application: It is well suited for mid-size commercial and light industrial facilities that require modular protection and straightforward wiring for service equipment. Feature: Copper bus material provides high conductivity and consistent current distribution. Business Impact: Improves fault current handling, reduces voltage drop, and enhances long-term reliability in demanding environments. Application: Ideal for equipment-rich facilities where precise overcurrent protection and steady power delivery are critical. Feature: NEMA 3R metallic enclosure with rainproof design and cover included. Business Impact: Enables outdoor and damp-location installations with compliant protection against weather and corrosion. Application: Suitable for service equipment in outdoor substations, industrial yards, or exposed utility spaces. Feature: Overhead feed option simplifies field wiring and reduces installation labor. Business Impact: Speeds up panel assembly and minimizes miswiring risks. Application: Retrofit projects or new builds where overhead feeders and CH series components are a fit. Feature: UL 67 and UL 50 certifications, combined with a limited lifetime warranty. Business Impact: Ensures regulatory compliance, traceability, and long asset life, lowering total cost of ownership. Application: Procurement decision for facilities requiring proven protection, predictable maintenance, and vendor support within the Eaton CH family.
Get a Quick Quote for a Eaton CHP18B100R
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CHP18B100R?
Enquire Now
FAQs
CHP18B100R fits standard CH main breaker loadcenters with 18 spaces and 36 circuits and uses overhead feed. Check panel mounting for a compatible enclosure (NEMA 3R metallic) and confirm space for up to six service disconnects. Verify the CH bus and lug arrangement aligns with copper bus construction, and install with the included cover to meet code and minimize wiring errors.
The CHP18B100R uses a 100 A CH-type main breaker to provide reliable overcurrent protection for a single-phase 120/240 V system. The copper bus ensures low resistance and consistent current distribution across all 36 circuits. UL 67 and UL 50 listings support regulatory compliance for standard service equipment installations in commercial and light industrial settings.
Yes. The unit features a NEMA 3R metallic enclosure with rainproof hub options and a cover included, enabling outdoor and damp-location installations. UL listings and the weather-resistant design help ensure durable service equipment in challenging environments, meeting code requirements for exposed electrical spaces.
Eaton provides a limited lifetime warranty on CH series loadcenters. Maintenance generally involves routine inspection of connections, bus integrity, and labeling. The rugged metallic enclosure and copper bus reduce corrosion risk and replacement frequency, supporting lower lifecycle costs and predictable asset performance for facilities with ongoing electrical infrastructure needs.
The CHP18B100R consolidates protection and expansion in a single enclosure, reducing panel upgrades as loads grow and lowering retrofit costs. Its durable hardware, UL-listed protection, and included cover streamline installation, leading to shorter commissioning times and fewer field-service calls. Over time, this translates to improved reliability and more predictable maintenance budgeting for industrial facilities.
