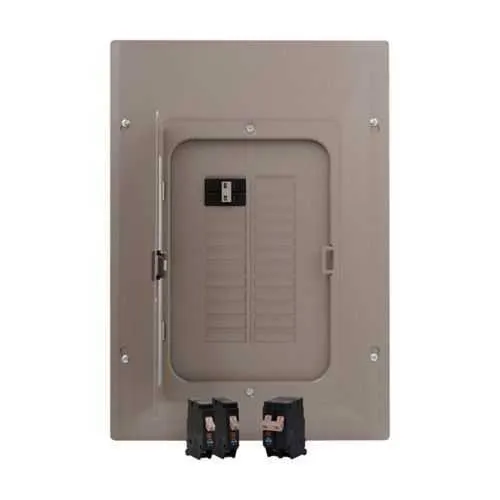

Eaton CHP22B100V29 Main Breaker Loadcenter - UL 67 UL 50
Part Number: CHP22B100V29
Quick Summary
Eaton CHP22B100V29 main breaker loadcenter provides scalable power distribution for commercial and light industrial panels. Engineers often wrestle with install complexity, space constraints, and meeting short-circuit ratings, which the CHP22B100V29 helps simplify. UL 50 and UL 67 listings for enclosures and components underpin safe, code-compliant installations, while the NEMA 1 metallic enclosure supports rugged environments. With copper bus, a 100 A rating, and a 25 kAIC interrupt rating, this loadcenter delivers reliable performance in demanding electrical infrastructures. Its durable build and limited lifetime warranty translate to lower downtime and a lower total cost of ownership, reinforcing its value in industrial enclosure solutions and power distribution equipment strategies.
Product Information
Extended Description
CHP22B100V29 Eaton: Eaton CH main breaker loadcenters,Main breaker,100 A,X2,Copper,Cover included,NEMA 1,Metallic,25 kAIC,CH,44,22,Two hots, a neutral and a ground,#6-1/0 AWG,120/240 V
Product Name
Eaton CH main breaker loadcenter
Catalog Number
CHP22B100V29
UPC
786689058418
Product Length/Depth
22 in
Product Height
4.1 in
Product Width
15.31 in
Product Weight
22.5 lb
Warranty
Limited lifetime
Certifications
UL 67 UL 50
Catalog Notes
VALUE PACK, (2) CHF120 & (1) CHF230
Type
Main breaker
Amperage Rating
100 A
Bus material
Copper
Cover
Cover included
Main circuit breaker
CH
Number of circuits
44
Number of spaces
22
Wire size
#6-1/0 AWG
Voltage rating
120/240 V
Box size
X2
Enclosure
NEMA 1
Enclosure material
Metallic
Interrupt rating
25 kAIC
Number of wires
Two hots, neutral and ground
AFCI Educational Video
Eaton Specification Sheet - CHP22B100V29
Eaton type CH circuit breaker limited warranty June 2024
