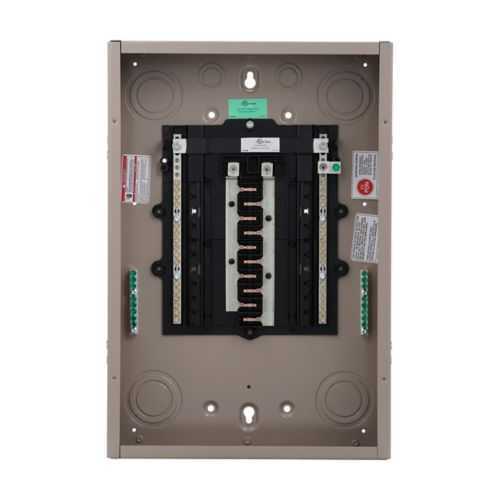

Eaton CHP24B200R Main Breaker Loadcenter - NEMA 3R
Part Number: CHP24B200R
Quick Summary
The Eaton CHP24B200R main breaker loadcenter delivers reliable 24-space power distribution for 120/240 V single-phase systems in commercial panels. Many facilities face maintenance headaches and compliance risks with mismatched equipment, making upgrades slow and costly. UL 67 and UL 50 certifications underpin safe enclosure performance and electrical ratings, while the NEMA 3R metallic enclosure supports outdoor and damp environments. This configuration also emphasizes robust serviceability and long-term reliability, making it a strong fit for service equipment upgrades, retrofit projects, and new installations where code compliance and quick installation matter. Leverage its compatibility with standard Eaton CH components to optimize lifecycle cost and simplify procurement for your electrical infrastructure needs.
Product Information
Extended Description
CHP24B200R Eaton: Eaton CH main breaker loadcenters,Cover included,Main breaker,200 A,X5,Copper,NEMA 3R,Metallic,CSR,48,24,Three-wire,Single-phase,Overhead,120/240 V
Product Name
Eaton CH main breaker loadcenter
Catalog Number
CHP24B200R
UPC
786689058609
Product Length/Depth
29 in
Product Height
5.19 in
Product Width
14.31 in
Product Weight
26 lb
Warranty
Limited lifetime
Certifications
UL 67 UL 50
Catalog Notes
Suitable for use as service equipment when not more than six service disconnecting mains are provided or when not used as a lighting and appliance panelboard. Rainproof panels are furnished with hub closure plates. For rainproof hubs.
Special features
Cover included
Type
Main breaker
Amperage Rating
200 A
Bus material
Copper
Main circuit breaker
CSR
Number of circuits
48
Number of spaces
24
Phase
Single-phase
Feed type
Overhead
Voltage rating
120/240 V
Box size
X5
Enclosure
NEMA 3R
Enclosure material
Metallic
Number of wires
3
AFCI Educational Video
Eaton Specification Sheet - CHP24B200R
Eaton type CH circuit breaker limited warranty June 2024
Feature: 24-space, 48-circuit layout in a single cabinet. Business Impact: maximizes circuit density while maintaining organized, readable labeling for faster commissioning. Application: ideal for commercial panels and light industrial service equipment upgrades where space is at a premium and reliability is required. Feature: 200 A amperage rating with CSR main breaker. Business Impact: provides strong overcurrent protection and clear fault isolation, reducing outage duration and improving safety. Application: central distribution point for heavy-duty loads in 120/240 V systems. Feature: Copper bus material. Business Impact: lowers resistance and voltage drop, improving feeder performance and energy efficiency. Application: high-demand loads and critical circuits in industrial environments. Feature: NEMA 3R metallic enclosure. Business Impact: delivers durable protection against weather and incidental moisture, reducing downtime and maintenance costs. Application: outdoor or damp-location installations with demanding environments. Feature: Cover included. Business Impact: simplifies on-site installation and protects internal components from dust and debris. Application: field installs and retrofit projects where turnkey readiness matters. Feature: Overhead feed, three-wire single-phase design. Business Impact: aligns with common utility service configurations, easing integration and startup. Application: service entrances and main distribution points in commercial facilities.
