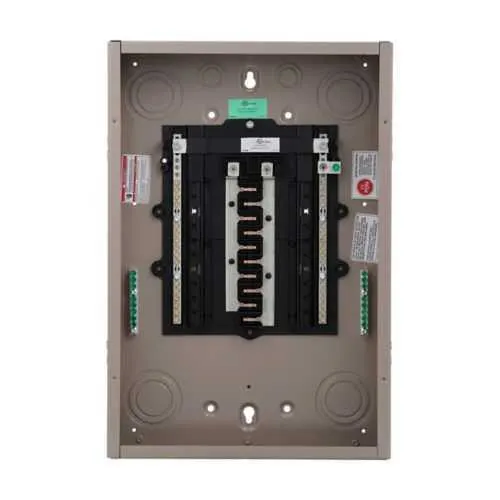

Eaton CHP24B200X5 Main Breaker Loadcenter - CSR
Part Number: CHP24B200X5
Quick Summary
Eaton CHP24B200X5 main breaker loadcenter delivers robust power distribution for industrial control panels. Engineers often face tight spaces, wiring complexity, and strict safety requirements during installations, making a reliable, easy-to-install solution essential. This unit carries UL 50 and UL 67 listings in a NEMA 1 metallic enclosure with a 10 kAIC interrupt rating, supporting safer, code-compliant installations. With copper bus, 48 circuits across 24 spaces, and a 200 A capacity, CHP24B200X5 integrates smoothly into commercial and light-industrial projects, reducing procurement complexity and improving overall system reliability.
Product Information
Extended Description
CHP24B200X5 Eaton: Eaton CH main breaker loadcenters,PON,Main breaker,200 A,X5,Copper,X5,NEMA 1,Metallic,10 kAIC,CSR,48,24,Three-wire,Single-phase,#2 AWG-300 kcmil,120/240 V
Product Name
Eaton CH main breaker loadcenter
Catalog Number
CHP24B200X5
UPC
786679189580
Product Length/Depth
29 in
Product Height
3.88 in
Product Width
14.31 in
Product Weight
17.5 lb
Warranty
Limited lifetime
Certifications
UL 50 UL 67
Catalog Notes
Purchase Size X5 Cover Separately
Special features
PON
Type
Main breaker
Amperage Rating
200 A
Bus material
Copper
Cover
X5
Main circuit breaker
CSR
Number of circuits
48
Number of spaces
24
Phase
Single-phase
Wire size
#2 AWG-300 kcmil
Voltage rating
120/240 V
Box size
X5
Enclosure
NEMA 1
Enclosure material
Metallic
Interrupt rating
10 kAIC
Number of wires
3
AFCI Educational Video
Eaton Specification Sheet - CHP24B200X5
Eaton type CH circuit breaker limited warranty June 2024
Feature: 200 A main breaker with CSR (Main circuit breaker) → Business Impact: Provides integrated overcurrent protection for all loads, simplifying protection coordination and reducing component count; Application: Suitable for 120/240 V single-phase industrial panels in commercial/commercial-light environments. Feature: Copper bus material → Business Impact: Lower electrical resistance and improved current carrying capability translate to reduced voltage drop and enhanced long-term reliability; Application: High-amp feeders in process control panels and utility-related applications. Feature: 24 spaces and 48 circuits → Business Impact: Ample expansion capacity enables future electrical loads without replacing the enclosure; Application: Mid-to-large control panels and multi-branch distribution points in manufacturing facilities. Feature: NEMA 1 metallic enclosure → Business Impact: Indoor, dust-protected protection with sturdy construction supports long service life; Application: Indoor electrical rooms and controlled environments requiring reliable protection. Feature: Wire size up to #2 AWG-300 kcmil, 3 wires, 120/240 V → Business Impact: Large feeder capabilities and flexible wiring options reduce field modifications and installation time; Application: Heavy feeders and mixed-load distributions in industrial spaces. Feature: PON and X5 cover notes → Business Impact: Purchase Size X5 cover can tailor aesthetics and protection for retrofit or retrofit-plus upgrades; Application: Retrofit projects and OEM panel installations in tight spaces.
Get a Quick Quote for a Eaton CHP24B200X5
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CHP24B200X5?
Enquire Now
FAQs
The CHP24B200X5 is a CH series main breaker loadcenter designed for 24 spaces and 48 circuits, compatible with PON configurations and the X5 cover option. It supports 120/240 V single-phase wiring and uses a copper bus with CSR as the main breaker, streamlining integration into existing Eaton CH installations and minimizing field rewiring.
Key specs include a 200 A amperage rating, 120/240 V electrical system, single-phase configuration, 24 spaces and 48 circuits, copper bus material, 10 kAIC interrupt rating, and a CSR main circuit breaker. Wire size support ranges from #2 AWG to 300 kcmil, enabling large feeders for demanding loads.
Yes. CHP24B200X5 uses a NEMA 1 metallic enclosure designed for indoor, controlled environments. The robust enclosure provides dust protection and durability for electrical rooms and service entrances, helping to maintain reliability in routine industrial settings.
The CHP24B200X5 carries UL 50 and UL 67 listings, indicating safe enclosure integrity and panel performance under typical service conditions. These certifications support compliance with electrical codes, reduce engineering risk, and simplify purchasing with proven reliability for commercial and industrial applications.
The unit offers a limited lifetime warranty and a long service life due to its copper bus and robust enclosure. ROI benefits come from reduced maintenance, fewer field modifications, and scalable capacity with 24 spaces and 48 circuits, which lowers replacement and retrofit costs over time.
