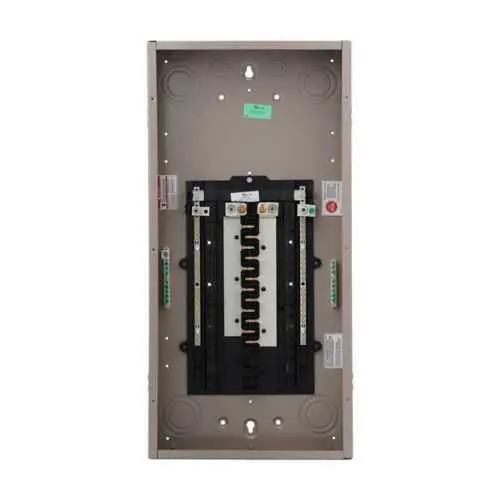

Eaton CHP24L150X5 Spa Panel - UL 67, NEMA 1 Indoor
Part Number: CHP24L150X5
Quick Summary
Eaton CHP24L150X5 Spa Panel is a 150 A main-lug distribution unit designed for indoor electrical rooms and spa installations. In many facilities, space constraints and complex wiring complicate panel upgrades; this compact CH design simplifies retrofits with 24 spaces, 48 circuits, and a copper bus for low resistance connections. The enclosure carries UL 67 listing and a NEMA 1 steel body, offering proven safety and protection in indoor environments, while the X5 cabinet note ensures future expansion is straightforward. For engineers and procurement teams, this panel delivers reliable performance, easy installation, and strong compatibility with Eaton's accessory ecosystem, helping reduce downtime and operating costs over the life of the installation.
Product Information
Extended Description
CHP24L150X5 Eaton: Eaton CH main lug only panel, PON,150A,X5,Copper bus,,NEMA 1 indoor,Steel,10 kAIC,48 circuits,24 spaces,Single-phase,120/240 V,#4 AWG-300 kcmil
Product Name
Eaton CH spa panel
Catalog Number
CHP24L150X5
UPC
786689054274
Product Length/Depth
29 in
Product Height
4 in
Product Width
14.3 in
Product Weight
15.4 lb
Certifications
UL 67
Catalog Notes
Purchase Size X5 Cover Separately
Special features
PON
Type
CH
Amperage Rating
150 A
Bus material
Copper
Number of circuits
48
Number of spaces
24
Phase
Single-phase
Voltage rating
120/240 V
Box size
X5
Enclosure
NEMA 1
Enclosure material
Steel
Interrupt rating
10 kAIC
Number of wires
3
Feature design: Main-lug CH panel enables non-fused distribution without an internal main breaker, reducing upfront hardware costs for retrofit projects and service upgrades. Business impact: simpler wiring layouts and faster installation times translate into lower labor costs and shorter downtime during changes. Application: ideal for spa equipment rooms, clinics, and compact commercial spaces where a full-size main breaker is unnecessary. Feature design: 24 spaces and 48 circuits provide ample capacity for current needs and future expansion without oversizing equipment. Business impact: improved load management and scalability reduce replacement cycles and inventory costs. Application: suitable for hotel, wellness, and small healthcare facilities with evolving electrical loads. Feature design: copper bus minimizes contact resistance, enhancing reliability under dynamic loading. Application: supports motors, pumps, and control panels in demanding indoor environments. Feature design: NEMA 1 steel enclosure with UL 67 certification ensures safe indoor operation. Application: ideal for clean, protected indoor spaces where durable protection matters. Feature design: 150 A rating with 10 kAIC interrupt rating. Application: robust fault protection for typical branch circuits while maintaining compact form factor. Catalog notes: Purchase size X5 cover separately to tailor enclosure aesthetics and future access.
Get a Quick Quote for a Eaton CHP24L150X5
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CHP24L150X5?
Enquire Now
FAQs
CHP24L150X5 is a main-lug CH panel designed for indoor NEMA 1 steel enclosures with copper bus. It supports 48 circuits across 24 spaces, single-phase 120/240 V, and is compatible with standard Eaton accessories, including X5 cover options. Install in indoor electrical rooms using #4 AWG to 300 kcmil conductors and maintain UL 67 compliance.
The panel delivers a 150 A rating and a 10 kAIC interrupt capacity, enabling reliable fault protection for typical service conductors and loads. With 24 spaces and 48 circuits, it supports flexible feeder layouts. Copper bus reduces resistance, improving reliability under dynamic load conditions common in spa and light-industrial applications.
Yes. Its compact footprint, NEMA 1 steel enclosure, and copper bus make it well-suited for indoor spa rooms, clinics, and small commercial spaces. The 120/240 V single-phase configuration aligns with common spa equipment and control panels, while the 24/48 capacity supports modular expansion as needs grow.
UL 67 listing confirms electrical safety and enclosure integrity for panelboards, while NEMA 1 enclosure type specifies indoor dry-location protection. Together, they ensure compliance with basic safety guidelines for indoor installation and protection of wiring, making it suitable for standard commercial and spa environments with routine maintenance.
Maintenance benefits center on robust copper bus connections, durable steel construction, and a scalable 24-space/48-circuit footprint that reduces future panel swaps. By leveraging Eaton’s accessories ecosystem, you minimize spare parts and downtime. The panel’s compact design also lowers space requirements and installation labor, improving overall return on investment during lifecycle operations.
