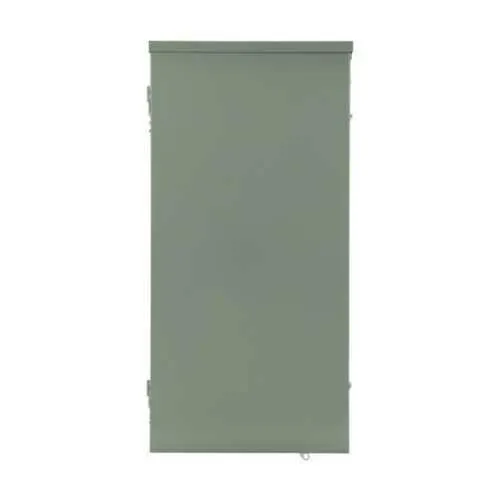

Eaton CHP30B100R Main Breaker Loadcenter - NEMA 3R
Part Number: CHP30B100R
Quick Summary
The Eaton CHP30B100R main breaker loadcenter is designed to safely distribute power in commercial and light industrial panels. Engineers often struggle with balancing weather resistance, space constraints, and serviceability in service equipment. UL 50 and UL 67 listings, plus a NEMA 3R metallic enclosure, provide reliability for indoor and outdoor use. Coupled with a 100 A main and copper bus, it delivers scalable service in commercial buildings while reducing installation time and wiring complexity. This makes it ideal for quick commissioning, easier maintenance, and consistent compliance with enclosure standards. For facility managers, the combination of service equipment compatibility and a 60-circuit capacity translates to a lower total cost of ownership.
Product Information
Extended Description
CHP30B100R Eaton: Eaton CH main breaker loadcenters,Cover included,Main breaker,100 A,X5,Copper,NEMA 3R,Metallic,CH,60,30,Three-wire,Single-phase,Overhead,120/240 V
Product Name
Eaton CH main breaker loadcenter
Catalog Number
CHP30B100R
UPC
786689058647
Product Length/Depth
29 in
Product Height
5.19 in
Product Width
14.31 in
Product Weight
26 lb
Warranty
Limited lifetime
Certifications
UL 50 UL 67
Catalog Notes
Suitable for use as service equipment when not more than six service disconnecting mains are provided or when not used as a lighting and appliance panelboard. Rainproof panels are furnished with hub closure plates. For rainproof hubs.
Special features
Cover included
Type
Main breaker
Amperage Rating
100 A
Bus material
Copper
Main circuit breaker
CH
Number of circuits
60
Number of spaces
30
Phase
Single-phase
Feed type
Overhead
Voltage rating
120/240 V
Box size
X5
Enclosure
NEMA 3R
Enclosure material
Metallic
Number of wires
3
AFCI Educational Video
Eaton Specification Sheet - CHP30B100R
Eaton type CH circuit breaker limited warranty June 2024
Feature: 100 A main breaker with CH line integration. Business Impact: Enables centralized control of power with proven Eaton CH breakers, reducing upstream fault exposure and simplifying coordination with downstream devices. Application: Suitable for commercial mains and light industrial distributions that demand reliable protection and straightforward breaker upgrades. Long-tail keywords incorporated: CH main breaker, 100 A service equipment, copper bus distribution. Feature → Business Impact → Application: Copper bus material improves current carrying capacity and reduces voltage drop, which lowers overheating risk in dense panel configurations; ideal for high-density installations in manufacturing facilities. Feature → Business Impact → Application: NEMA 3R metallic enclosure provides weather resistance and outdoor compatibility, improving uptime for exterior or damp locations. Feature → Business Impact → Application: Overhead feed and 120/240 V single-phase wiring simplify field wiring and integration with existing utility connections in commercial buildings. Feature → Business Impact → Application: Cover included and rainproof hub plates streamline installation, enabling faster commissioning and reduced labor costs. Feature → Business Impact → Application: 60 circuits across 30 spaces deliver scalable expansion while preserving a compact 29 in depth, optimizing space in equipment rooms. Feature → Business Impact → Application: Limited lifetime warranty and UL 50/UL 67 listings mitigate risk for procurement and maintenance planning, supporting compliance and long-term ROI.
Get a Quick Quote for a Eaton CHP30B100R
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CHP30B100R?
Enquire Now
FAQs
Install the CHP30B100R in its NEMA 3R metallic enclosure, connect the overhead feed to the main CH breaker, mount the 30-space panel, and wire the 60 circuits using copper bus. Include the cover and hub closure plates for rainproof hubs. Verify grounding and compliance with UL 50/UL 67 requirements during commissioning.
Yes. It uses the CH main breaker configuration and supports 100 A rated operation, single-phase 120/240 V, overhead feed, copper bus, 60 circuits across 30 spaces, and a 29 in depth enclosure. The unit is UL listed (UL 50/UL 67) and designed for service equipment where applicable.
Ideal for commercial and light industrial service entrances, outdoor or damp locations, and installations requiring rainproof hubs. Its 60‑circuit capacity and NEMA 3R enclosure make it suitable for exterior panel assemblies, retrofit projects, and spaces where main protection and reliable service equipment are critical.
The CHP30B100R is UL listed under UL 50 and UL 67 with a NEMA 3R metallic enclosure. It also carries a limited lifetime warranty, offering long-term protection against material and workmanship defects, which supports maintenance planning and lifecycle cost stability.
The copper bus reduces resistance losses and thermal stress, improving reliability and reducing hot-spot risks. The enclosure’s weather protection lowers outdoor UI exposure, while the included cover and rainproof hubs speed installation. Together with UL certifications and a warranty, these factors translate to lower maintenance interventions and a faster return on investment.
