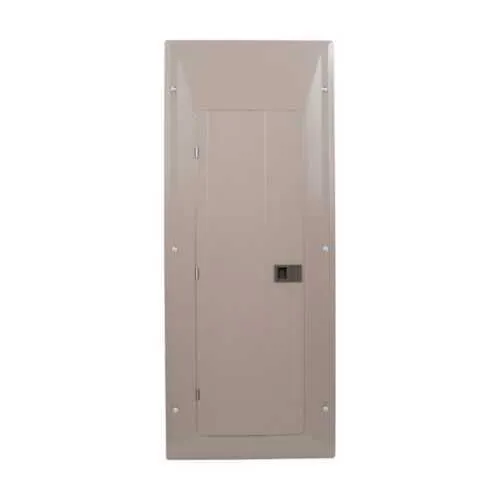

Eaton CHP32B200 Main Breaker Loadcenter - 25 kAIC CSR
Part Number: CHP32B200
Quick Summary
Eaton CHP32B200 main breaker loadcenter provides reliable, centralized power distribution for commercial and light industrial panels. When space is limited and panel upgrades are needed, reducing downtime and compatibility headaches can save significant project time and cost. This unit is UL 67 certified and features a durable NEMA 1 metallic enclosure with a 25 kAIC interrupt rating, ensuring safe operation in demanding environments. The inclusion of the chl225n main lug kit and a cover simplifies retrofits, while copper bus and a 200 A rating support high-current applications. For installers and procurement teams, CHP32B200 delivers predictable performance and seamless integration with Eaton CH load centers.
Product Information
Extended Description
CHP32B200 Eaton: Eaton CH main breaker loadcenters,Standard, chl225n main lug kit,Main breaker,200 A,X6,Copper,Cover included,NEMA 1,Metallic,25 kAIC,CSR,64,32,Three-wire,Single-phase,#2/0 AWG-300 kcmil,120/240 V
Product Name
Eaton CH main breaker loadcenter
Catalog Number
CHP32B200
UPC
786679192917
Product Length/Depth
35.13 in
Product Height
4.1 in
Product Width
15.31 in
Product Weight
30.8 lb
Certifications
UL 67
Special features
Standard, chl225n main lug kit
Type
Main breaker
Amperage Rating
200 A
Bus material
Copper
Cover
Cover included
Main circuit breaker
CSR
Number of circuits
64
Number of spaces
32
Phase
Single-phase
Wire size
#2/0 AWG-300 kcmil
Voltage rating
120/240 V
Box size
X6
Enclosure
NEMA 1
Enclosure material
Metallic
Interrupt rating
25 kAIC
Number of wires
3
AFCI Educational Video
Eaton Specification Sheet - CHP32B200
Eaton type CH circuit breaker limited warranty June 2024
Feature: 200 A main breaker CSR design → Business Impact: Provides robust overcurrent protection for feeders and downstream devices, improving system safety and fault clearance performance. Application: Suitable for new installations and upgrades in commercial and light industrial panels. Feature: 32 spaces and 64 circuits capacity → Business Impact: Enables expansion within a single enclosure, reducing the need for full panel replacement and enabling future growth. Application: Ideal for growing electrical rooms and multi-circuit distributions. Feature: Copper bus material → Business Impact: Delivers low resistance, reduced voltage drop, and improved thermal performance under high-load conditions. Application: Critical service feeders and high-demand loads in 120/240 V systems. Feature: NEMA 1 metallic enclosure → Business Impact: Provides durable indoor protection with ease of mounting and labeling, supporting compliant installations. Application: Indoor commercial and light-industrial environments. Feature: chl225n main lug kit and cover included → Business Impact: Simplifies field retrofits and reduces installation steps, cutting project timelines. Application: Retrofit projects and upgrade scenarios. Feature: 25 kAIC interrupt rating → Business Impact: Higher fault withstand capability minimizes damage and downtime during transients. Application: Data centers, manufacturing lines, and critical loads requiring enhanced protection. Feature: 120/240 V, single-phase, #2/0 AWG-300 kcmil wire range → Business Impact: Broad conductor compatibility supports diverse wiring schemes and reduces compatibility risk. Application: Retrofit and new-build electrical rooms with varied feeders.
Get a Quick Quote for a Eaton CHP32B200
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CHP32B200?
Enquire Now
FAQs
CHP32B200 is designed for Eaton CH family installations, offering 32 spaces and 64 circuits within an X6 enclosure. It supports 120/240 V single-phase service and accepts #2/0 AWG to 300 kcmil conductors, making retrofits straightforward. The included chl225n main lug kit provides upgrade flexibility, and the cover aids quick labeling and enclosure protection during installation.
Key specs include a 200 A amperage rating, copper bus, 25 kAIC interrupt rating, and a 120/240 V single-phase system. With 32 spaces and 64 circuits, you can plan future expansion without replacing the enclosure. Ensure conductors within the #2/0 AWG to 300 kcmil range are used and that the enclosure remains within a NEMA 1 indoor environment.
Yes, CHP32B200 is suitable for commercial and light industrial control panels, including spaces that require reliable distribution with high fault tolerance. The 25 kAIC interrupt rating and copper bus aid in handling high fault currents, while the enclosure's NEMA 1 rating is ideal for indoor electrical rooms commonly found in these environments.
CHP32B200 is UL 67 certified, reflecting its compliance for enclosure-based electrical systems. The NEMA 1 metallic enclosure further supports indoor installation standards. This combination provides assurance for reputable electrical rooms and helps meet project regulatory requirements during audits and inspections.
The robust aluminum-free copper bus and solid enclosure reduce thermal stress and wear on connectors, contributing to longer service life with less downtime. The included retrofit kit streamlines updates, shortening maintenance windows. Over the project lifecycle, these factors translate into lower maintenance costs and improved availability for critical loads.
