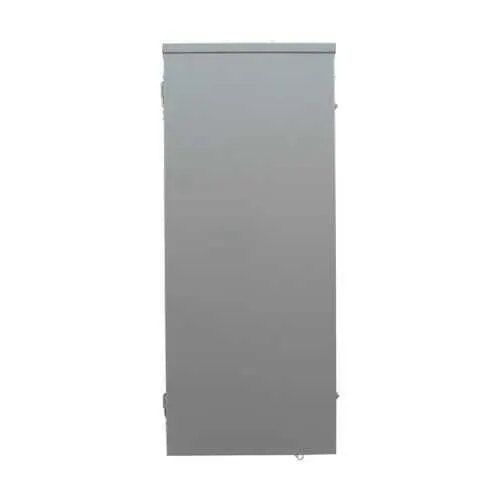

Eaton CHP32B200R CH Main Breaker Loadcenter - UL 67
Part Number: CHP32B200R
Quick Summary
Eaton CHP32B200R CH main breaker loadcenter provides reliable distribution for 64 circuits in industrial and commercial environments. Facility teams wrestle with space constraints and evolving codes; this unit offers a compact, maintainable solution. UL 67 and UL 50 listed enclosure components ensure safe operation, while the NEMA 3R rainproof design supports outdoor or harsh indoor environments. Engineers gain predictable performance and manufacturers streamline installation with a cover-included, 64-space enclosure. This combination supports compliance objectives while enabling efficient procurement and serviceability.
Product Information
Extended Description
CHP32B200R Eaton: Eaton CH main breaker loadcenters,Cover included,Main breaker,200 A,X6,Copper,NEMA 3R,Metallic,CSR,64,32,Three-wire,Single-phase,Overhead,120/240 V
Product Name
Eaton CH main breaker loadcenter
Catalog Number
CHP32B200R
UPC
786689058678
Product Length/Depth
34 in
Product Height
5.19 in
Product Width
14.31 in
Product Weight
28 lb
Warranty
Limited lifetime
Certifications
UL 67 UL 50
Catalog Notes
Suitable for use as service equipment when not more than six service disconnecting mains are provided or when not used as a lighting and appliance panelboard. Rainproof panels are furnished with hub closure plates. For rainproof hubs.
Special features
Cover included
Type
Main breaker
Amperage Rating
200 A
Bus material
Copper
Main circuit breaker
CSR
Number of circuits
64
Number of spaces
32
Phase
Single-phase
Feed type
Overhead
Voltage rating
120/240 V
Box size
X6
Enclosure
NEMA 3R
Enclosure material
Metallic
Number of wires
3
AFCI Educational Video
Eaton Specification Sheet - CHP32B200R
Eaton type CH circuit breaker limited warranty June 2024
Feature: 200 A main breaker with copper bus and CSR main breaker. Business Impact: robust fault isolation, lower contact resistance, and improved uptime under heavy loads. Application: ideal for 64-circuit, single-phase service equipment in industrial and commercial panels. Feature: Cover included. Business Impact: reduces field assembly time and protects critical components from dust and moisture. Application: rapid commissioning and long-term reliability in challenging environments. Feature: NEMA 3R metallic enclosure with rainproof hubs. Business Impact: weather-resilient performance and reduced weather-related downtime. Application: outdoor installations or harsh indoor locations where continuity matters. Feature: 32 spaces / 64 circuits configuration. Business Impact: optimized space utilization and scalable expansion for growing electrical loads. Application: centralized distribution in medium to large facilities. Feature: Copper bus material. Business Impact: lower resistance and better conductivity, improving protection and longevity. Application: high-current feeders and critical loads in industrial settings. Feature: Limited lifetime warranty. Business Impact: lower total cost of ownership through long-term support. Application: procurement decisions for robust service equipment portfolios. Feature: Catalog notes for service equipment usage. Business Impact: clear installation boundaries reduce compliance risk. Application: precise specification for projects where service equipment rules apply.
Get a Quick Quote for a Eaton CHP32B200R
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CHP32B200R?
Enquire Now
FAQs
The CHP32B200R is designed as service equipment when not more than six service disconnects are provided. It features a cover included for quicker installation, rainproof hub provisions, and overhead feed compatibility. For compliance, ensure wiring and disconnect configurations align with UL 67 and UL 50 standards and follow the catalog notes for appropriate usage in your facility.
Yes. The unit uses copper bus material and a CSR main circuit breaker, delivering strong fault isolation and reliable performance under heavy loads. This configuration is well-suited for single-phase systems up to 200 A and aligns with typical industrial/commercial panelboard applications requiring durable current handling.
CHP32B200R is certified to UL 67 and UL 50, and it comes in a NEMA 3R metallic enclosure. These ratings support safe operation, code compliance, and suitability for outdoor or harsh indoor environments, helping reduce project risk and streamline approvals.
The 200 A main breaker, copper bus, and 64-circuit capacity provide robust protection and scalable distribution. With 32 spaces, it enables organized, future-proofing of feeders and loads while maintaining compact footprint, reducing panel complexity and improving maintenance planning in industrial facilities.
Official resources include the Eaton specification sheet at https://www.eaton.com/us/en-us/skuPage.CHP32B200R.pdf and the warranty documentation at https://www.eaton.com/content/dam/eaton/products/low-voltage-power-distribution-controls-systems/circuit-breakers/ch-circuit-breakers/eaton-warranty-ch-en-us.pdf. These documents provide detailed electrical characteristics and the limited lifetime warranty terms.
