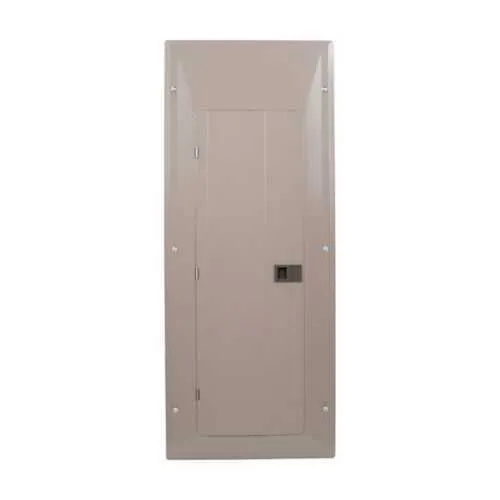

Eaton CHP32B200X6 Main Breaker Loadcenter - CSR 25 kAIC
Part Number: CHP32B200X6
Quick Summary
The Eaton CHP32B200X6 main breaker loadcenter delivers reliable, scalable power distribution for commercial and light industrial panels, supporting 120/240 V single-phase service. Many engineers struggle with limited space, compatibility gaps between legacy gear, and the challenge of achieving high short-circuit protection without sacrificing accessibility. UL 67 and UL 50 listings, along with a NEMA 1 metallic enclosure and a proven CSR main breaker, ensure code-compliant, durable operation in standard electrical rooms. By aligning with CH-series components, this loadcenter simplifies procurement, accelerates panel assembly, and reduces field rework. The result is faster commissioning, predictable performance, and lower total cost of ownership across projects.
Product Information
Extended Description
CHP32B200X6 Eaton: Eaton CH main breaker loadcenters, Main breaker, 200 A, X6, Copper, X6, NEMA 1, Metallic, 25 kAIC, CSR, 64, Single-pole, 32, Two hots, a neutral and a ground, Single-phase, #6-1/0 AWG, 120/240 V
Product Name
Eaton CH main breaker loadcenter
Catalog Number
CHP32B200X6
UPC
786689055172
Product Length/Depth
34.13 in
Product Height
3.88 in
Product Width
14.31 in
Product Weight
19.9 lb
Warranty
Limited lifetime
Certifications
UL 67 UL 50
Type
Main breaker
Amperage Rating
200 A
Bus material
Copper
Cover
X6
Main circuit breaker
CSR
Number of circuits
64
Number Of Poles
Single-pole
Number of spaces
32
Phase
Single-phase
Wire size
#6-1/0 AWG
Voltage rating
120/240 V
Box size
X6
Enclosure
NEMA 1
Enclosure material
Metallic
Interrupt rating
25 kAIC
Number of wires
Two hots, neutral and ground
AFCI Educational Video
Eaton Specification Sheet - CHP32B200X6
Eaton type CH circuit breaker limited warranty June 2024
Feature: 200 A main breaker with 32 spaces and 64 circuits ensures a scalable distribution platform that can host large control panels while minimizing the need for additional enclosures. Business Impact: This configuration supports planned capacity growth, reduces the number of separate panels needed, and speeds up panel builds during project execution. Application: ideal for mid-size commercial deployments and light manufacturing lines where expansion is anticipated. Feature: Copper bus reduces impedance and improves voltage regulation across feeders under peak loads. Business Impact: Lower resistance paths translate to reduced heat buildup, longer component life, and fewer nuisance trips for motor-heavy applications. Application: suitable for HVAC, pump, and conveyor circuits in busy industrial environments. Feature: X6 cover with NEMA 1 metallic enclosure provides durable indoor protection with front-access wiring and modular assembly. Business Impact: Enhances safety during installation and simplifies future maintenance, leading to shorter outage windows. Application: electrical rooms and service areas in commercial facilities. Feature: 25 kAIC interrupt rating offers robust fault current protection at typical commercial and light industrial sites. Business Impact: Reduced risk of panel damage and improved system reliability, contributing to lower downtime costs. Application: service entrances and regions with elevated fault currents. Feature: 120/240 V single-phase operation with two hots, a neutral and a ground supports common utility wiring and standard loads. Business Impact: Familiar wiring schemes accelerate commissioning and minimize wiring errors. Application: standard distribution panels across office buildings, data centers, and light manufacturing. Feature: UL 67 and UL 50 certifications, plus a limited lifetime warranty, provide procurement confidence and long-term support. Business Impact: Streamlined compliance, easier audits, and lower total cost of ownership over the product lifecycle. Application: regulated environments and asset-intensive facilities.
Get a Quick Quote for a Eaton CHP32B200X6
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CHP32B200X6?
Enquire Now
FAQs
Yes. The CHP32B200X6 is designed around the CH family, featuring a CSR main circuit breaker, copper bus, 32 spaces (64 circuits), and a front-access NEMA 1 metallic enclosure. This compatibility simplifies procurement, reduces mismatch risk, and enables straightforward panel upgrades without adopting a different enclosure lineage.
Key specs include a 200 A amperage rating, 120/240 V single-phase operation, 32 spaces, 64 circuits, copper bus, X6 cover, and a 25 kAIC interrupt rating. The combination supports mid-size commercial and light industrial loads with robust fault protection and reliable performance under peak demand.
Ideal for commercial electrical rooms and light industrial panels, the CHP32B200X6 supports service entrances and distribution for HVAC, lighting, and motor-driven equipment. Its NEMA 1 metallic enclosure provides indoor protection, while the 200 A capacity accommodates moderate expansion without immediate panel replacement.
The loadcenter carries UL 67 and UL 50 certifications and comes with Eaton’s limited lifetime warranty. These assurances support compliance with electrical codes, facilitate regulatory audits, and reduce long-term maintenance risk across asset-heavy facilities.
By delivering a scalable, code-compliant solution with front-access wiring and a durable enclosure, CHP32B200X6 minimizes field rework, speeds commissioning, and lowers downtime. Its compatibility with CH components ensures consistent procurement practices, reducing stocking complexity and improving maintenance planning over the panel’s life cycle.
