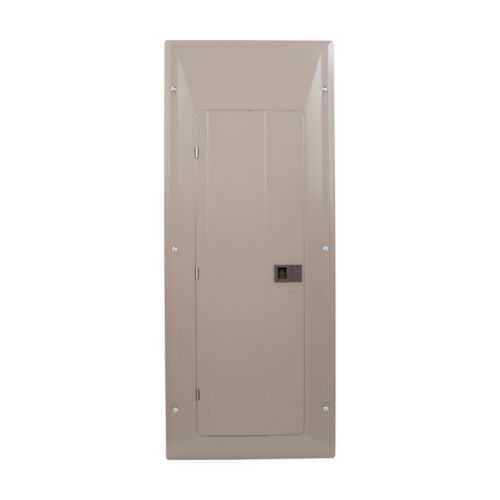

Eaton CHP32B225X6 Main Breaker Loadcenter - 25 kAIC CSR
Part Number: CHP32B225X6
Quick Summary
The Eaton CHP32B225X6 main breaker loadcenter provides reliable power distribution for industrial electrical panels. When projects demand fast, safe installations, unexpected component incompatibilities or space constraints can slow progress and drive costs. UL 67 certification, a NEMA 1 metallic enclosure, and copper bus with a CSR main breaker deliver proven safety, durability, and performance in demanding environments. This design also supports seamless expansion with the chl225n main lug kit and standardized componentry, helping you meet project timelines and budget targets while maintaining robust protection for critical loads.
Product Information
Extended Description
CHP32B225X6 Eaton: Eaton CH main breaker loadcenters,Standard, chl225n main lug kit,Main breaker,225 A,X6,Copper,X6,NEMA 1,Metallic,25 kAIC,CSR,64,32,Three-wire,Single-phase,#2/0 AWG-300 kcmil
Product Name
Eaton CH main breaker loadcenter
Catalog Number
CHP32B225X6
UPC
786679192924
Product Length/Depth
34.13 in
Product Height
3.88 in
Product Width
14.31 in
Product Weight
19.9 lb
Certifications
UL 67
Special features
Standard, chl225n main lug kit
Type
Main breaker
Amperage Rating
225 A
Bus material
Copper
Cover
X6
Main circuit breaker
CSR
Number of circuits
64
Number of spaces
32
Phase
Single-phase
Wire size
#2/0 AWG-300 kcmil
Box size
X6
Enclosure
NEMA 1
Enclosure material
Metallic
Interrupt rating
25 kAIC
Number of wires
3
AFCI Educational Video
Eaton Specification Sheet - CHP32B225X6
Eaton type CH circuit breaker limited warranty June 2024
Feature: 225 A rating with 64 circuits and 32 spaces. Business Impact: Supports scalable, organized distribution for mid-to-large electrical loads without overpacking panels. Application: Suitable for industrial control cabinets and commercial service enclosures, enabling efficient space management and future-proofing. Feature: Copper bus and X6 cover. Business Impact: Improves current carrying capacity and reduces heat loss for stable operation. Application: Best for high‑demand machinery lines and manufacturing cells where reliability matters. Feature: NEMA 1 metallic enclosure with 25 kAIC interrupt rating. Business Impact: Enhances safety and fault handling, minimizing arc-flash exposure and equipment damage. Application: Environments requiring rugged indoor protection and quick fault isolation. Feature: chl225n main lug kit compatibility. Business Impact: Allows future conversion from main breaker to main lug configurations with minimal downtime. Application: Facilities planning for phased upgrades and modular panel expansions. Feature: Wire size flexibility #2/0 AWG-300 kcmil. Business Impact: Simplifies high‑amp, high‑capacity wiring with clean, code-compliant terminations. Application: Large service feeders and branch circuits in control rooms and distribution closets.
Get a Quick Quote for a Eaton CHP32B225X6
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CHP32B225X6?
Enquire Now
FAQs
For proper installation, mount the loadcenter in a suitable indoor location with adequate ventilation and clearance per NEC guidelines. Use the indicated NEMA 1 metallic enclosure for indoor service, verify wiring fits #2/0 AWG to 300 kcmil, and plan for the 32 spaces and 64 circuits. If expanding later, ensure the chl225n main lug kit is compatible to avoid invasive rewiring.
Yes. The CHP32B225X6 supports the chl225n main lug kit for future configuration changes from a main breaker to a main lug setup. This enables phased upgrades without replacing the entire enclosure, reducing downtime and capital expenditure while preserving existing wiring and terminations.
Key specs include a 225 A amperage rating, 64 circuits, 32 spaces, single-phase operation, copper bus, NEMA 1 enclosure, and a 25 kAIC interrupt rating with CSR main breaker. The unit is UL 67 listed and accommodates #2/0 AWG to 300 kcmil conductors, making it suitable for medium to large load centers in industrial settings.
The CHP32B225X6 is UL 67 certified, featuring a NEMA 1 metallic enclosure for indoor protection. Its copper bus and CSR main breaker are designed for dependable performance under demanding conditions. This combination supports regulatory compliance and improves safety and reliability in industrial panel installations.
The 225 A CHP32B225X6 provides durable protection with a long service life due to a robust copper bus and 25 kAIC interrupt rating. Maintenance is streamlined by standardized components and compatibility with the chl225n kit for future expansions. The result is reduced downtime, easier part availability, and cost savings over the life of the panel in motor-driven and process-heavy facilities.
