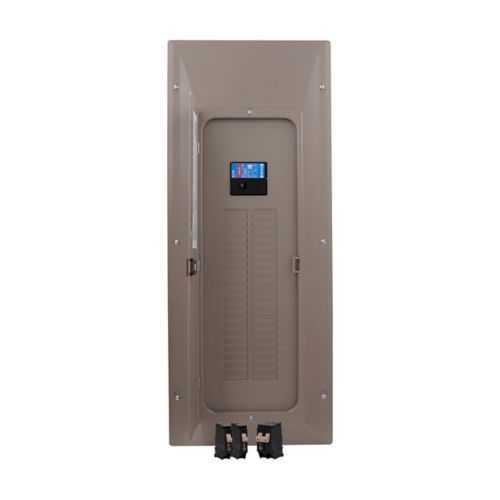

Eaton CHP42B200V29 Main Breaker Loadcenter - 25 kAIC
Part Number: CHP42B200V29
Quick Summary
CHP42B200V29 is a main breaker loadcenter that distributes 200 A for commercial and light industrial panels. This unit addresses common wiring complexity, space constraints, and evolving code requirements by providing a compact, easy-to-install enclosure with a robust copper bus. With UL 67 and UL 50 certifications, it delivers proven enclosure safety and performance for indoor applications. Designed for the enclosures & electrical infrastructure segment, it supports Plug-On Neutral configurations and includes a cover for fast, code-compliant installations, delivering greater reliability and reduced total cost of ownership.
Product Information
Extended Description
CHP42B200V29 Eaton: Eaton CH main breaker loadcenters,PON,Main breaker,200 A,X7,Copper,Cover included,NEMA 1,Metallic,25 kAIC,CSR,84,42,Two hots, a neutral and a ground,Single-phase,#6-1/0 AWG,120/240 V
Product Name
Eaton CH main breaker loadcenter
Catalog Number
CHP42B200V29
UPC
786689058401
Product Length/Depth
38 in
Product Height
4.1 in
Product Width
15.31 in
Product Weight
35.2 lb
Warranty
Limited lifetime
Certifications
UL 67 UL 50
Catalog Notes
Value Pack #V29, (2) CHF120 & (1) CHF230
Special features
PON
Type
Main breaker
Amperage Rating
200 A
Bus material
Copper
Cover
Cover included
Main circuit breaker
CSR
Number of circuits
84
Number of spaces
42
Phase
Single-phase
Wire size
#6-1/0 AWG
Voltage rating
120/240 V
Box size
X7
Enclosure
NEMA 1
Enclosure material
Metallic
Interrupt rating
25 kAIC
Number of wires
Two hots, neutral and ground
AFCI Educational Video
Eaton Specification Sheet - CHP42B200V29
Eaton type CH circuit breaker limited warranty June 2024
Feature: 200 A CSR main circuit breaker. Business impact: centralized overcurrent protection reduces fault risk and unplanned downtime. Application: ideal for single-phase 120/240 V commercial or light industrial service. Feature: 84 circuits across 42 spaces. Business impact: substantial wiring capacity supports future expansion without panel replacement. Application: scalable control panel distribution in mid-size facilities. Feature: copper bus material. Business impact: low resistance and improved thermal performance for stable voltage and efficiency. Application: high-current distribution in demanding environments. Feature: NEMA 1 metallic enclosure with cover included. Business impact: enhanced indoor protection and quicker installation with ready-to-cover hardware. Application: rugged, code-compliant indoor installations in manufacturing or facilities. Feature: Plug-On Neutral (PON) capability and CSR main breaker. Business impact: simplifies wiring and reduces field labor while maintaining protection standards. Application: streamlined installation for modern Eaton CH loadcenters in new builds or upgrades.
Get a Quick Quote for a Eaton CHP42B200V29
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CHP42B200V29?
Enquire Now
FAQs
The CHP42B200V29 uses a NEMA 1 metallic enclosure with a cover included, designed for indoor use. It supports single-phase 120/240 V service and accepts #6-1/0 AWG conductors, making it compatible with standard Eaton CH installations and common plant wiring practices.
This loadcenter features a 200 A main breaker (CSR), an interrupt rating of 25 kAIC, and copper bus. It accommodates 84 circuits within 42 spaces, providing centralized protection and scalable distribution for reliable electrical performance in 120/240 V systems.
Yes. With 84 circuit capacity, a robust 25 kAIC rating, and a durable NEMA 1 metallic enclosure, CHP42B200V29 is well-suited for commercial and light industrial panel distribution, offering space for future expansion and straightforward maintenance.
The CHP42B200V29 carries UL 67 and UL 50 listings, confirming enclosure integrity and electrical safety. This ensures compliance for indoor installations and aligns with industry standards, reducing procurement risk and simplifying regulatory documentation.
Eaton provides a limited lifetime warranty on its CH loadcenters, with documentation available in the included warranty guide. Routine inspections, compatible spare parts, and certified service support help maximize uptime and total cost of ownership over the product’s life.
