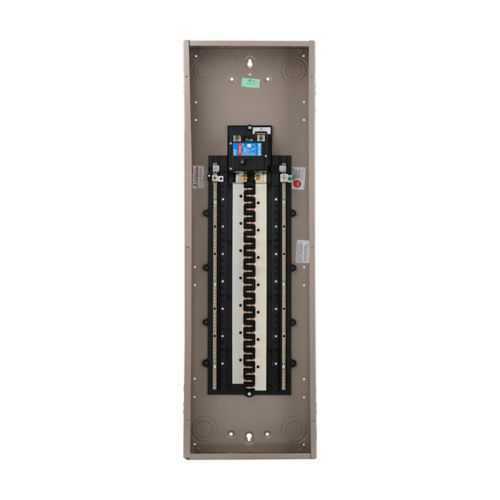

Eaton CHP60B200X9 Main Breaker Loadcenter - 25 kAIC CSR
Part Number: CHP60B200X9
Quick Summary
The Eaton CHP60B200X9 main breaker loadcenter is a robust distribution solution designed for 200 A service applications in commercial and light industrial environments. It addresses the common challenge of expanding panel capacity without frequent, costly replacements. With UL 67, UL 50 certification relevance and a NEMA 1 metallic enclosure, this loadcenter is built for safety and long-term performance. The design supports copper bus, a wide wire range, and PON capability, delivering reliable power and reducing downtime during maintenance or upgrades. By combining a scalable space count with a proven warranty, it aligns with procurement goals for predictable lifecycle costs and regulatory compliance.
Product Information
Extended Description
CHP60B200X9 Eaton: Eaton CH main breaker loadcenters, PON, Main breaker, 200 A, X9, Copper, X9, NEMA 1, Metallic, 25 kAIC, CSR, 120, 60, Three-wire, Single-phase, #2 AWG-300 kcmil, 120/240 V
Product Name
Eaton CH main breaker loadcenter
Catalog Number
CHP60B200X9
UPC
786679189665
Product Length/Depth
45 in
Product Height
3.88 in
Product Width
14.31 in
Product Weight
27 lb
Warranty
Limited lifetime
Certifications
UL 67 UL 50
Catalog Notes
Purchase Size X9 Cover Separately
Special features
PON
Type
Main breaker
Amperage Rating
200 A
Bus material
Copper
Cover
X9
Main circuit breaker
CSR
Number of circuits
120
Number of spaces
60
Phase
Single-phase
Wire size
#2 AWG-300 kcmil
Voltage rating
120/240 V
Box size
X9
Enclosure
NEMA 1
Enclosure material
Metallic
Interrupt rating
25 kAIC
Number of wires
3
AFCI Educational Video
Eaton Specification Sheet - CHP60B200X9
Eaton type CH circuit breaker limited warranty June 2024
Feature: 200 A main breaker with 60 spaces and 120 circuits → Business Impact: Enables scalable distribution for growing loads, reducing future panel replacements and upgrade costs. Application: Ideal for manufacturing lines and facilities juggling multiple feeders. The CH loadcenter supports 120/240 V single-phase systems and is ready for immediate integration in new installations or retrofit projects. Feature: Copper bus material → Business Impact: Low resistance and efficient current transfer, improving overall electrical performance and reducing heat-related losses. Application: Suitable for high-amperage feeders and critical loads in data centers or control rooms. Feature: NEMA 1 metallic enclosure with 25 kAIC interrupt rating → Business Impact: Enhanced protection against dust and incidental contact with strong fault currents, lowering safety risks and insurance exposure. Application: Indoor applications with stringent safety requirements. Feature: PON capability and X9 cover option → Business Impact: Fast, plug-on neutral configuration and modular cover compatibility streamline installation and serviceability. Application: OEM integration and service-friendly retrofits. Feature: 3-wire configuration and #2 AWG-300 kcmil wire range → Business Impact: Flexible conductor options support diverse utility and process loads, enabling compliant and safe terminations. Application: Electrical rooms with mixed motor and lighting circuits. Feature: 60 spaces for future expansion → Business Impact: Long-term asset protection and deferred capital expenditure, matching project growth without panel swaps. Application: Expanding facilities or phased modernization programs.
Get a Quick Quote for a Eaton CHP60B200X9
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CHP60B200X9?
Enquire Now
FAQs
The CHP60B200X9 uses copper bus and accommodates a broad conductor range from #2 AWG up to 300 kcmil, enabling high-current reliability with low voltage drop. This supports clean, efficient distribution for 200 A service and simplifies termination practices in panel installations, reducing field rework and improving first-time-right commissioning.
This loadcenter carries UL 67 and UL 50 certifications, signaling compliance for enclosures and electrical assemblies. These standards address enclosure integrity, safety, and performance under fault conditions, which is critical for regulatory approval, insurance requirements, and consistent performance across installations.
Yes. The CHP60B200X9 is designed specifically for 120/240 V single-phase operation with 60 spaces and 120 circuits. Its PON capability and CSR main breaker provide reliable protection and straightforward integration with standard single-phase commercial and light industrial wiring schemes.
The X9 cover offers a compatible, removable enclosure option that simplifies field service and future upgrades, while PON (plug-on neutral) capability speeds wiring and reduces termination errors. Together, these features shorten installation timelines and improve system maintainability in busy electrical rooms.
The CHP60B200X9 carries Eaton’s limited lifetime warranty, reflecting confidence in long-term reliability. For maintenance, focus on verifying tight conductor terminations, inspecting the copper bus for signs of wear, and following the included Eaton warranty documentation for eligibility and service guidance. Regular inspections help preserve performance and extend asset life.
