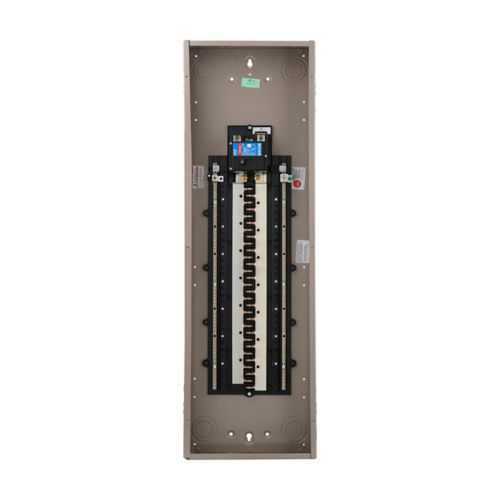

Eaton CHP60B225X9 Main Breaker Loadcenter - 25 kAIC CSR
Part Number: CHP60B225X9
Quick Summary
Eaton CHP60B225X9 main breaker loadcenter is a compact distribution solution for 120/240 V single-phase power in industrial and commercial facilities. Installing new panels can be time-consuming and error-prone; this unit prioritizes a straightforward footprint and reliable components to reduce on-site complexity. Its UL 50 and UL 67 certifications, along with a NEMA 1 metallic enclosure and a 25 kAIC interrupt rating, help ensure compliance and robust operation. With copper bus, X9 cover, and a 225 A main, CHP60B225X9 fits mid-sized distribution needs while offering long-term value and compatibility with CH series accessories.
Product Information
Extended Description
CHP60B225X9 Eaton: Eaton CH main breaker loadcenters,PON,Main breaker,225 A,X9,Copper,X9,NEMA 1,Metallic,25 kAIC,CSR,120,60,Three-wire,Single-phase,#2 AWG-300 kcmil,120/240 V
Product Name
Eaton CH main breaker loadcenter
Catalog Number
CHP60B225X9
UPC
786679189672
Product Length/Depth
45 in
Product Height
3.88 in
Product Width
14.31 in
Product Weight
31 lb
Warranty
Limited lifetime
Certifications
UL 50 UL 67
Catalog Notes
Purchase Size X9 Cover Separately
Special features
PON
Type
Main breaker
Amperage Rating
225 A
Bus material
Copper
Cover
X9
Main circuit breaker
CSR
Number of circuits
120
Number of spaces
60
Phase
Single-phase
Wire size
#2 AWG-300 kcmil
Voltage rating
120/240 V
Box size
X9
Enclosure
NEMA 1
Enclosure material
Metallic
Interrupt rating
25 kAIC
Number of wires
3
AFCI Educational Video
Eaton Specification Sheet - CHP60B225X9
Eaton type CH circuit breaker limited warranty June 2024
225 A main breaker loadcenter delivers scalable power distribution with 60 circuit spaces, enabling mid-size facilities to accommodate growing loads without a full panel upgrade. Business impact: reduces future infra costs and minimizes downtime during load growth. Application: ideal for industrial control panels, warehouses, and service entrances requiring robust protection and expansion headroom. Copper bus provides low resistance, improved heat dissipation, and greater reliability under peak loads, translating to lower voltage drop and longer component life. This supports critical feeders in manufacturing lines and equipment racks where power quality matters. The X9 cover with PON capability enables straightforward expansion and serviceability, lowering field modification time and labor costs. NEMA 1 metallic enclosure offers indoor durability and protection against dust and incidental impacts, strengthening uptime in dry environments. UL 50/UL 67 certifications and a 25 kAIC interrupt rating align with regulatory expectations, simplifying compliance and safety documentation. Together with a 225 A main and CH-series compatibility, CHP60B225X9 delivers a proven, future-ready distribution solution for industrial facilities.
