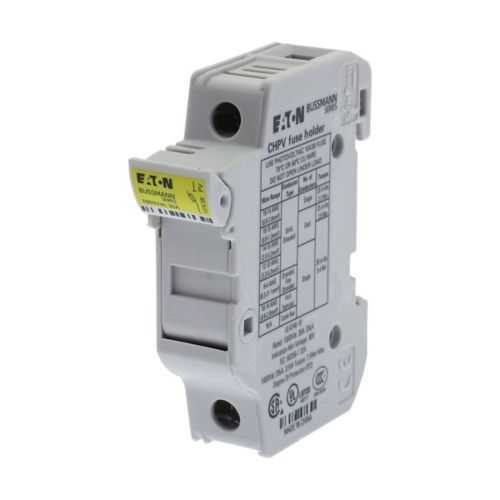

Eaton CHPV1U Photovoltaic Fuse Holder - 1000 Vdc
Part Number: CHPV1U
Quick Summary
Eaton CHPV1U photovoltaic fuse holder protects solar PV circuits with a compact, single-pole fuse block. Rated for up to 30 A and 1000 Vdc, it fits in standard PV enclosures and supports modular installation in inverters, string interfaces, and combiner boxes. Engineers often struggle to fit reliable input protection into tight PV spaces without compromising safety or serviceability. The CHPV1U line delivers RoHS compliance and UKCA declarations for cylindrical photovoltaic fuse-links, helping customers meet regulatory requirements while staying cost-efficient. Designed for outdoor and indoor installations, its modular design simplifies field wiring, reduces installation time, and improves maintainability across solar projects. With a robust single-pole configuration, it minimizes wiring complexity while delivering dependable protection for solar arrays.
Product Information
Extended Description
CHPV1U Eaton: Eaton Bussmann series CHPV photovoltaic fuse block, Eaton Bussmann series Photovoltiac Fuse Holder, 1000 Vdc, 30A, Modular, Single-pole - CHPV1U
Product Name
Eaton Bussmann series CHPV photovoltaic fuse holder
Catalog Number
CHPV1U
UPC
051712362719
EAN
51712362719
Product Length/Depth
0.001 mm
Product Height
0.001 mm
Product Width
0.001 mm
Product Weight
52.333 g
Warranty
Not Applicable
Compliances
Contact factory RoHS Compliant
Amperage Rating
30 A
Voltage rating
1000 Vdc
Number of Poles
Single-pole
Operating temperature - max
120 °C
Operating temperature - min
-20 °C
CHPV1U~Photovoltiac fuse holder
CHPV1U~Photovoltiac fuse holder
UKCA Fuse-holders for cylindrical photovoltaic fuse-links
UKCA Fuse-holders for cylindrical photovoltaic fuse-links
Rail fusible circuit protection solutions
Rail fusible circuit protection solutions
Eaton Specification Sheet - CHPV1U
720147 10 x 38 mm Modular fuse holder
Feature: 30 A amperage rating and 1000 Vdc voltage rating provide direct protection for PV strings. Business Impact: By meeting high PV system demands in a single device, you reduce parts count, simplify wiring, and shorten installation time, delivering lower total installed cost. Application: Suitable for rooftop and ground-mounted solar arrays, combiner boxes, and inverter interfaces where space is at a premium. Feature: Modular, single-pole design. Business Impact: The modular form factor reduces wiring complexity and enables straightforward expansion as protection needs grow, while keeping a compact footprint. Application: Fits in standard electrical enclosures and PV junction boxes where fast, reliable protection is required. Feature: Operating temperature range -20 °C to 120 °C. Business Impact: Maintains protection performance across outdoor exposure, temperature swings, and environmental stress, reducing nuisance trips and downtime. Application: Outdoor PV arrays and unconditioned enclosures in diverse climates. Feature: RoHS compliant; UKCA declarations available. Business Impact: Helps customers meet regional regulatory requirements, streamlines vendor qualification, and reduces procurement risk. Application: Projects in EU/UK markets and other RoHS-regulated regions that demand traceable compliance. Feature: Weight around 52.3 g. Business Impact: Lightweight yet robust design lowers mounting load and simplifies handling during installation and maintenance. Application: Dense or space-constrained PV protection points where ease of service is beneficial.
Get a Quick Quote for a Eaton CHPV1U
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CHPV1U?
Enquire Now
FAQs
CHPV1U is designed for modular protection in standard PV enclosures and junction boxes. Install with secure mounting, proper cable routing, and correct fuse links per the Eaton datasheet. Ensure conductor sizing aligns with the 30 A rating and observe the -20 °C to 120 °C operating range for outdoor environments. Regular inspection of connectors reduces contact resistance and maintains reliability.
The CHPV1U is rated for 30 A continuous current and 1000 Vdc maximum voltage. It is a single-pole, modular fuse holder designed for photovoltaic protection. These ratings support protection of PV strings and related equipment, while enabling straightforward selection within standard Bussmann series protection schemes.
Yes. The CHPV1U’s single-pole modular design, plus its 30 A/1000 Vdc rating, makes it well-suited for rooftop arrays, ground-mounted systems, inverters interfaces, and PV combiner boxes. Its compact form and straightforward wiring help minimize installation time and allow scalable protection as PV layouts grow or reconfigure.
Compliance documentation includes RoHS compliance and UKCA declarations for cylindrical photovoltaic fuse-links. Eaton also provides specification sheets (CHPV1U datasheet) and related technical data to assist with supplier qualification, installation guidance, and regulatory reviews in European and UK markets.
Maintenance benefits stem from a robust, single-pole modular design that reduces wiring complexity and potential fault points. A dependable overcurrent protection device minimizes unplanned downtime in solar plants, which translates to lower maintenance costs and improved system availability, contributing to a favorable total cost of ownership over the system life.
