Eaton CHPV2IU Photovoltaic Fuse Holder - 1000 Vdc, Two-Pole
Part Number: CHPV2IU
Quick Summary
The Eaton CHPV2IU photovoltaic fuse holder is a compact, modular device that protects PV strings by housing a 30 A fuse at up to 1000 Vdc. Field service often stalls when replacements are hard to source or wiring is complex, but this module simplifies installation and reduces fault-prone connections. CE conformity and RoHS compliance are supported by Eaton's declarations of conformity, helping ensure regulatory alignment for commercial solar projects. As a two-pole Bussmann series component, it offers straightforward retrofit potential and improved uptime, while supporting reliable PV protection with a cost-efficient footprint.
Product Information
Extended Description
CHPV2IU Eaton: Eaton Bussmann series CHPV photovoltaic fuse block, 1000 Vdc, 30A, Modular, Two-pole - CHPV2IU
Product Name

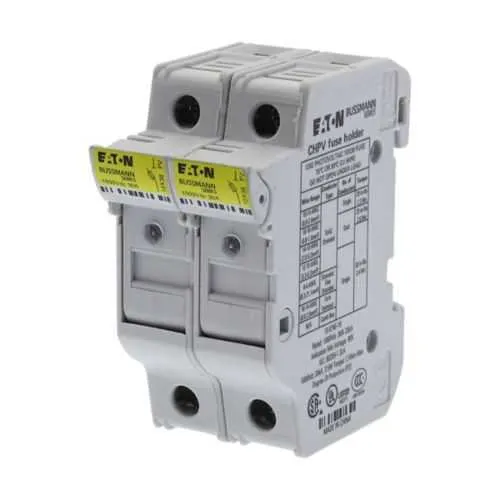

Eaton Bussmann series CHPV photovoltaic fuse holder
Catalog Number
CHPV2IU
UPC
051712362740
EAN
51712362740
Product Length/Depth
0.001 mm
Product Height
0.001 mm
Product Width
0.001 mm
Product Weight
108.333 g
Warranty
Not Applicable
Compliances
Contact factory RoHS Compliant
Amperage Rating
30 A
Voltage rating
1000 Vdc
Number of Poles
Two-pole
Operating temperature - max
90 °C
Operating temperature - min
-20 °C
Bussmann series complete full line catalog no. 1007
Bussmann series complete full line catalog no. 1007
CE Fuse-holders for cylindrical photovoltaic fuse-links
CE Fuse-holders for cylindrical photovoltaic fuse-links
Rail fusible circuit protection solutions
Rail fusible circuit protection solutions
Eaton Specification Sheet - CHPV2IU
720147 10 x 38 mm Modular fuse holder
Feature: 1000 Vdc rating and 30 A amperage. Business impact: Enables protection for high-voltage PV strings while maintaining efficient current handling and safety. Application: Solar installations with cylindrical PV fuse-links, enabling reliable, scalable protection in PV arrays. Feature: Two-pole modular design. Business impact: Simplifies wiring and installation, reduces commissioning time, and improves maintenance accessibility. Application: Modular fuse blocks in roof top and ground-mounted PV systems, streamlining upgrades and repairs. Feature: RoHS compliant with CE documentation. Business impact: Ensures regulatory compliance and material restrictions are met, reducing risk in utility-scale deployments. Application: Solar projects requiring CE declarations and RoHS assurance for equipment procurement. Feature: Compatibility with cylindrical PV fuse-links. Business impact: Eliminates need for separate adapters, lowering inventory and installation complexity in the field. Application: PV string protection in common solar configurations. Feature: Operating temperature range -20 °C to 90 °C. Business impact: Robust outdoor performance for varied climates, improving uptime and service life. Application: Outdoor PV arrays and exposed installations. Feature: Weight of 108.333 g. Business impact: Lightweight module reduces mounting stress and enables denser protection-block layouts. Application: Rooftop enclosures and compact PV protection blocks.
