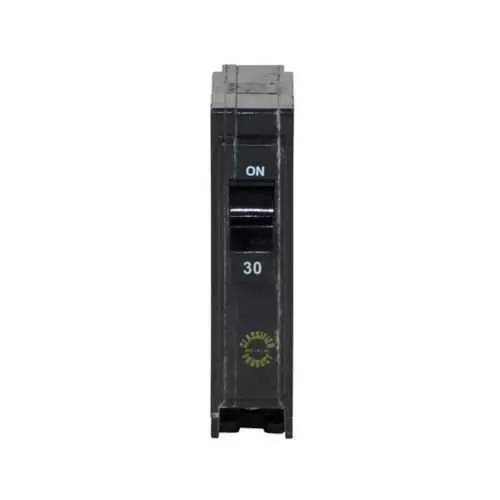

Eaton CHQ130 Circuit Breaker - UL 489 Listed Certified
Part Number: CHQ130
Quick Summary
CHQ130 is an Eaton classified 3/4-inch thermal magnetic circuit breaker designed for Type CH Loadcenters and other compatible panels. It delivers reliable overcurrent protection for residential and light commercial circuits with a compact footprint. Replacing legacy QO breakers often demands exact space and cross-compatibility; this device fits in a single 3/4-inch mounting space and uses standard Cu/Al wiring. UL 489 certification ensures safety and regulatory compliance, while the 30 A rating and 10 kAIC interrupt capacity support critical loads without compromising panel integrity. By aligning with Eaton's CH framework, CHQ130 minimizes downtime, simplifies stocking through a clamshell pack, and streamlines procurement for service teams and distributors.
Product Information
Extended Description
CHQ130 Eaton: 3/4" Thermal magnetic circuit breakers,Type CHQ 3/4-Inch classified replacement breaker clamshell pack,30 A,10 kAIC,Single-pole,120/240V,CHQ,(1) #14-8 AWG, (2) #14-10 AWG Cu/Al,Q30,CHQ,Type CH Loadcenters
Product Name
Eaton Classified 3/4" thermal magnetic circuit breaker
Catalog Number
CHQ130
UPC
782113010847
Product Length/Depth
2.5 in
Product Height
3 in
Product Width
0.8 in
Product Weight
0.3 lb
Warranty
Limited lifetime residential, 1 year commercial
Certifications
UL 489
Catalog Notes
Replacement for Square D Type QO Breakers. Requires one 3/4-inch (19.1 mm) space.
Used with
Type CH Loadcenters
Type
Type CHQ 3/4-Inch classified replacement breaker clamshell pack
Special features
Clamshell pack
Amperage Rating
30 A
Voltage rating
120/240 V
Circuit breaker type
CH
Interrupt rating
10 kAIC
Main circuit breaker
CHQ
Wire size
(2) #14-10 AWG Cu/Al (1) #14-8 AWG
Number of poles
Single-pole
Quantity
30
Standard circuit breaker catalog numbers - 5651B63SH09
Residential and Light Commercial, Load centers and Circuit Breakers, Volume 1 Tab 1
Eaton Specification Sheet - CHQ130
Feature: Classified 3/4-inch clamshell pack provides secure handling and scalable stocking. Business Impact: Minimizes damage during transit and accelerates stocking processes for distributors and field teams. Application: Ideal for quick-change retrofits in Type CH Loadcenters without panel modification. Feature: 30 A, 10 kAIC interrupt rating ensures robust protection for typical residential and light commercial circuits. Business Impact: Reduces nuisance trips, protects wiring, and supports reliable opcode performance in fault events. Application: Suitable for lighting, receptacle circuits, and small motor loads in service upgrades. Feature: Single-pole operation at 120/240 V enables straightforward integration with common branch circuits. Business Impact: Simplifies wiring schemes and stock-keeping while maintaining compatibility with standard residential electrical infrastructure. Application: Common in retrofit projects and new installations using CH Loadcenters. Feature: Cross-compatibility with Square D QO (as a classified replacement) reduces retrofit downtime. Business Impact: Lowers labor costs and speeds panel modernization. Application: Retrofit projects where space and compatibility constraints exist. Feature: Wire-size flexibility (two #14-10 Cu/Al, one #14-8 Cu/Al) supports diverse wiring scenarios. Business Impact: Streamlines field wiring, minimizes rewiring overhead, and enhances installation speed. Application: Multi-wire branch circuits in mixed copper/aluminum systems. Feature: UL 489 certification, limited lifetime residential/1-year commercial warranty, and spacings for 3/4-inch mounting. Business Impact: Demonstrates compliance and provides long-term support, reducing risk and total cost of ownership. Application: Regulated markets and service contracts seeking dependable protection and clear ownership.
Get a Quick Quote for a Eaton CHQ130
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CHQ130?
Enquire Now
FAQs
Yes, CHQ130 is a classified replacement breaker for Eaton Type CH Loadcenters and fits in a single 3/4-inch panel space. It uses a standard 120/240 V single-pole configuration and supports wiring with (2) #14-10 Cu/Al and (1) #14-8 AWG. This makes retrofits and panel upgrades straightforward without changing the enclosure.
CHQ130 is 30 A with a 10 kAIC interrupt rating and operates at 120/240 V. It is UL 489 listed and configured as a single-pole CH breaker. The wiring footprint accommodates (2) #14-10 Cu/Al plus (1) #14-8 AWG, making it suitable for standard branch-circuit protection in residential and light commercial panels.
CHQ130 is marketed as a classified replacement for Square D QO breakers and is designed to fit CH-type load centers with a 3/4-inch space. This enables panel retrofits without full panel replacement, reducing downtime and simplifying procurement for service teams managing legacy QO installations.
CHQ130 carries UL 489 certification, confirming compliance with safety and performance standards for circuit breakers. This certification is critical for regulatory approval, warranty validation, and ensuring continued insurance coverage during installations in residential and light commercial environments.
CHQ130 carries a limited lifetime residential warranty and a 1-year commercial warranty, reflecting Eaton's confidence in long-term performance. This reduces total cost of ownership by lowering replacement frequency, supporting service contracts, and cutting maintenance downtime during circuit protection upgrades.
