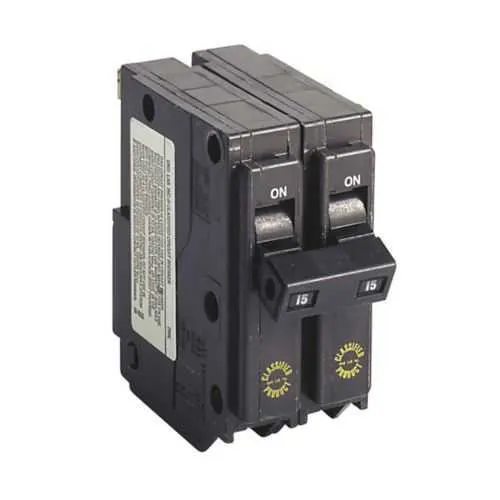

Eaton CHQ215CS Electrical Breaker - UL 489
Part Number: CHQ215CS
Quick Summary
Eaton CHQ215CS thermal magnetic circuit breaker protects electrical distribution systems in residential and light commercial load centers. A common pain point is finding a compatible, code-compliant replacement that fits limited panel space without nuisance trips. This unit carries UL 489 certification and is rated for 120/240 V with a 10 kAIC interrupt rating, two-pole operation, and a CH Loadcenter fit. Using the CHQ215CS helps streamline procurement and installation, reducing downtime while ensuring reliable protection in new or retrofit applications.
Product Information
Extended Description
CHQ215CS Eaton: 3/4" Thermal magnetic circuit breakers,Type CHQ 3/4-Inch classified replacement breaker clamshell pack,Clamshell pack,15 A,10 kAIC,Two-pole,120/240V,CHQ,Common breaker trip,(1) #14-8 AWG, (2) #14-10 AWG Cu/Al,CHQ,Type CH Loadcenters
Product Name
Eaton Classified 3/4" thermal magnetic circuit breaker
Catalog Number
CHQ215CS
UPC
782114752937
Product Length/Depth
7.25 in
Product Height
6.5 in
Product Width
4.48 in
Product Weight
1.87 lb
Certifications
UL 489
Catalog Notes
Replacement for Square D Type QO Breakers. Requires two 3/4-inch (19.1 mm) spaces.
Used with
Type CH Loadcenters
Type
Type CHQ 3/4-Inch classified replacement breaker clamshell pack
Special features
Clamshell pack
Voltage rating
120/240 V
Trip Type
Common breaker trip
Circuit breaker type
CH
Interrupt rating
10 kAIC
Main circuit breaker
CHQ
Wire size
(2) #14-10 AWG Cu/Al (1) #14-8 AWG
Number of poles
Two-pole
Standard circuit breaker catalog numbers - 5651B63SH09
Residential and Light Commercial, Load centers and Circuit Breakers, Volume 1 Tab 1
Eaton Specification Sheet - CHQ215CS
Compatibility with Eaton Type CH Loadcenters reduces integration risk and ensures proper fit in two-space clamshell packs, enabling faster replacements in field installations and retrofits. The 120/240 V rating and 10 kAIC interrupt capability translate to safer, more reliable protection for multiwire branch circuits, supporting compliance with NEC requirements and minimizing arc exposure in typical industrial and commercial applications. The CHQ215CS comes in a clamshell pack, which protects against shipping damage and simplifies handling in distribution centers, field warehouses, and onsite installations. As a classified CHQ 3/4-Inch replacement, it enables seamless swaps for Square D QO breakers, helping maintenance teams consolidate parts and reduce stocking costs. Its two-pole design, common-trip feature, and conductor sizing (Cu/Al) support robust multi-circuit protection in panelboards and load centers while maintaining space efficiency. Field technicians benefit from clear labeling and Eaton compatibility, reducing commissioning time and post-installation adjustments. Overall, adopting this model supports lifecycle cost reductions through standardized components across projects and facilities.
Get a Quick Quote for a Eaton CHQ215CS
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CHQ215CS?
Enquire Now
FAQs
The CHQ215CS is designed for Eaton Type CH Loadcenters and is intended as a classified replacement within these panels. It fits the CH space configuration and supports two-pole operation for standard branch circuits in residential and light commercial installations, streamlining retrofits and new builds alike.
CHQ215CS is a 3/4-inch, two-pole thermal magnetic circuit breaker rated for 120/240 V with a 10 kAIC interrupt rating. It is listed as UL 489 and provides a 15 A current rating in a clamshell package, designed for CH Loadcenters and compatible with copper or aluminum conductors as specified (2) #14-10 AWG Cu/Al and (1) #14-8 AWG.
Choosing CHQ215CS provides a reliable, code-compliant replacement that matches the existing Type CH architecture. It reduces downtime by offering a known fit, minimizes stocking complexity with standard CH components, and ensures common-trip protection across two poles, which is critical for maintaining safe, synchronized tripping in multi-circuit panels.
CHQ215CS carries UL 489 certification, confirming safe performance for circuit protection applications. While UL 489 is specified, CE marking or IP ratings are not indicated for this model. Users should verify local compliance requirements, but UL 489 is widely recognized for residential and light commercial panel protection.
Installation requires two 3/4-inch spaces within CH Loadcenters and uses a clamshell pack for transport and handling. It supports a two-pole configuration with 120/240 V operation and is compatible with (2) #14-10 AWG Cu/Al and (1) #14-8 AWG conductors. Proper torque and mounting in a CH panel ensure reliable protection and easy future replacement if needed.
