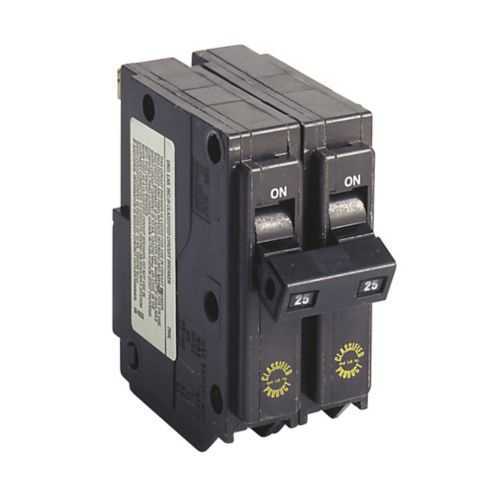

Eaton CHQ225 Thermal Magnetic Circuit Breaker - UL 489
Part Number: CHQ225
Quick Summary
CHQ225 is a classified 3/4-inch thermal magnetic circuit breaker designed to protect CH Loadcenters in residential and light commercial installations. For installers facing tight spaces, replacing older devices can be a task that tests compatibility, labeling, and space planning. UL 489 certification underpins safety and reliability, while the common-trip two-pole design ensures coordinated protection across both conductors. Applied in distribution panels, this breaker supports 120/240 V systems and a 25 A rating, making it a straightforward fit for many retrofit projects. With a clamshell pack for easy handling and a standard 3/4-inch footprint, it streamlines procurement and reduces field errors, delivering measurable project value.
Product Information
Extended Description
CHQ225 Eaton: 3/4" Thermal magnetic circuit breakers,Type CHQ 3/4-Inch classified replacement breaker clamshell pack,25 A,10 kAIC,Two-pole,120/240V,CHQ,Common breaker trip,(1) #14-8 AWG, (2) #14-10 AWG Cu/Al,Q30,CHQ,Type CH Loadcenters
Product Name
Eaton Classified 3/4" thermal magnetic circuit breaker
Catalog Number
CHQ225
UPC
782113010915
Product Length/Depth
2.5 in
Product Height
3 in
Product Width
1.5 in
Product Weight
0.6 lb
Warranty
Limited lifetime residential, 1 year commercial
Certifications
UL 489
Catalog Notes
Replacement for Square D Type QO Breakers. Requires two 3/4-inch (19.1 mm) spaces.
Used with
Type CH Loadcenters
Type
Type CHQ 3/4-Inch classified replacement breaker clamshell pack
Special features
Clamshell pack
Amperage Rating
25 A
Voltage rating
120/240 V
Trip Type
Common breaker trip
Circuit breaker type
CH
Interrupt rating
10 kAIC
Main circuit breaker
CHQ
Wire size
(2) #14-10 AWG Cu/Al (1) #14-8 AWG
Number of poles
Two-pole
Quantity
30
Standard circuit breaker catalog numbers - 5651B63SH09
Residential and Light Commercial, Load centers and Circuit Breakers, Volume 1 Tab 1
Eaton Specification Sheet - CHQ225
CHQ225 uses a 3/4-inch CHQ frame and a two-pole configuration, delivering a compact footprint that fits common residential panels. This saves panel space and simplifies retrofits, reducing install time and avoiding costly rewiring. The 25 A rating at 120/240 V provides reliable overload protection while accommodating higher fault currents in modern load centers. The 10 kAIC interrupt rating supports safer fault clearing in typical service environments, improving overall system reliability. Its common-trip design ensures synchronized operation across both poles, which is essential for multi-wire branch circuits and space-saving installations. Wiring options accommodate (2) #14-10 Cu/Al and (1) #14-8 Cu/Al, offering flexible connection patterns for diverse panel configurations. The clamshell packaging improves handling and stock management, while UL 489 certification confirms compliance with established safety standards and performance expectations for low-voltage protection.
