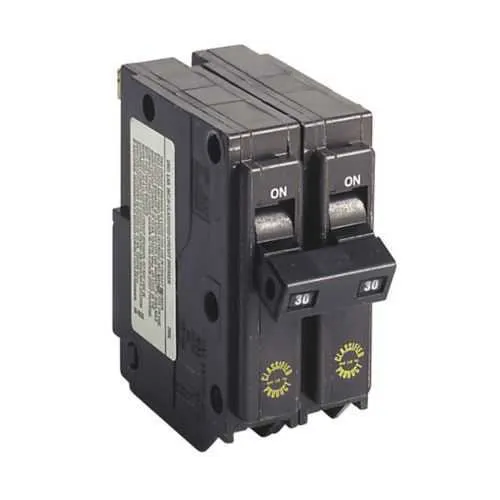

Eaton CHQ230CS 3/4\" Thermal Magnetic Circuit Breaker - 10 kAIC
Part Number: CHQ230CS
Quick Summary
Eaton Classified 3/4\" thermal magnetic circuit breaker protects CH Loadcenters in commercial and light-industrial panels. Replacing older QO-type breakers can disrupt common-trip coordination and create panel footprint challenges, leading to extended downtime. UL 489 certification underpins safety compliance for field installations, while the unit’s two-pole design and 120/240 V rating ensure reliable multi-wire protection. This CHQ230CS solution integrates with Type CH Loadcenters, delivering consistent protection across circuits and simplifying maintenance planning. By aligning with CH series footprints and offering a clamshell-pack packaging, it supports faster stocking, safer field replacements, and lower total cost of ownership for electrical systems in industrial environments.
Product Information
Extended Description
CHQ230CS Eaton: 3/4" Thermal magnetic circuit breakers,Type CHQ 3/4-Inch classified replacement breaker clamshell pack,Clamshell pack,30 A,10 kAIC,Two-pole,120/240V,CHQ,Common breaker trip,(1) #14-8 AWG, (2) #14-10 AWG Cu/Al,CHQ,Type CH Loadcenters
Product Name
Eaton Classified 3/4" thermal magnetic circuit breaker
Catalog Number
CHQ230CS
UPC
782114752951
Product Length/Depth
6 in
Product Height
2 in
Product Width
3.5 in
Product Weight
0.6 lb
Certifications
UL 489
Catalog Notes
Replacement for Square D Type QO Breakers. Requires two 3/4-inch (19.1 mm) spaces.
Used with
Type CH Loadcenters
Type
Type CHQ 3/4-Inch classified replacement breaker clamshell pack
Special features
Clamshell pack
Voltage rating
120/240 V
Trip Type
Common breaker trip
Circuit breaker type
CH
Interrupt rating
10 kAIC
Main circuit breaker
CHQ
Wire size
(1) #14-8 AWG (2) #14-10 AWG Cu/Al
Number of poles
Two-pole
Standard circuit breaker catalog numbers - 5651B63SH09
Residential and Light Commercial, Load centers and Circuit Breakers, Volume 1 Tab 1
Eaton Specification Sheet - CHQ230CS
Feature: The CHQ230CS is a 3/4-inch classified replacement breaker offered in a convenient clamshell pack. This packaging reduces shipping damage and makes field stocking simpler for service teams. The compact 6 in length, 2 in height, and 3.5 in width fit standard CH Loadcenter interiors while preserving full two-pole protection. Business Impact: Safer handling, faster on-site replacements, and streamlined inventory management. Application: Type CH Loadcenters in commercial and light-industrial panels.Feature: Two-pole construction rated 30 A with a 120/240 V operating range and a 10 kAIC interrupt rating provides robust dual-leg protection. This enhances fault isolation and minimizes arcing risk in distribution wiring. Application: ideal for CH Loadcenters and common-trip circuits in commercial and light-industrial panels where reliability matters.Feature: Classified replacement for Square D Type QO breakers, requiring two 3/4-inch spaces. Business Impact: enables seamless modernization without panel redesign or extensive wiring changes, reducing downtime and inventory fragmentation. Application: fits alongside other CH series devices in Type CH Loadcenters, ensuring consistent protection across the system.Feature: Terminal/conductor compatibility supports (1) #14-8 AWG and (2) #14-10 AWG Cu/Al. Business Impact: simplifies field wiring and preserves conductor ampacity, improving termination reliability. Application: suitable for control circuits and branch circuits within CH Loadcenters and standard residential/commercial distributions.Feature: UL 489 certification verifies compliance with national electrical safety standards. Business Impact: reduces regulatory risk, accelerates inspection approval, and enhances customer confidence. Application: required for electrical installations in many jurisdictions.Feature: Clamshell-pack packaging reduces damage risk and simplifies inventory handling. Business Impact: improves on-site productivity by enabling quicker identification and fewer misplacements. Application: ideal for service fleets, stocking, and field replacements in CH Loadcenter ecosystems.
