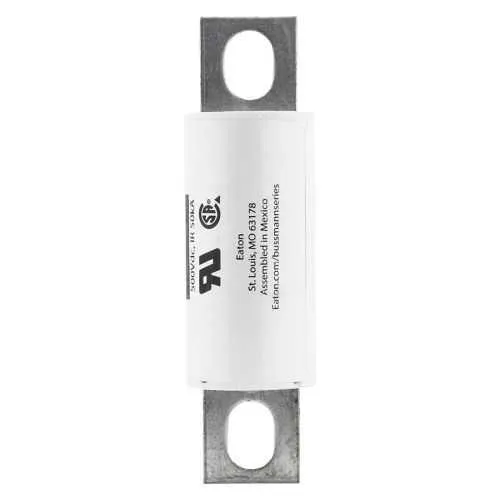

Eaton CHSF-125 High Speed Fuse - UL Recognized, CSA Certified
Part Number: CHSF-125
Quick Summary
The Eaton CHSF-125 high speed fuse provides rapid overcurrent protection for industrial control circuits. This design helps prevent nuisance trips and downtime by reliably clearing faults before downstream equipment is damaged. It carries UL Recognized and CSA Certified safety marks, RoHS compliance, and a 500 Vac/500 Vdc rating for modern automation environments. Non-indicating status keeps costs down in high-volume assemblies, while bolt-on mounting speeds installation and reduces panel space requirements. For systems that demand robust protection with minimal maintenance, CHSF-125 delivers consistent performance and measurable uptime gains.
Product Information
Extended Description
CHSF-125 Eaton: Eaton Bussmann series CHSF high speed fuse, 500 Vac, 500 Vdc, 125A, 200 kAIC, Non Indicating, High speed fuse, Bolt-on
Product Name
Eaton Bussmann series CHSF high speed fuse
Catalog Number
CHSF-125
UPC
051712534628
Product Length/Depth
0.001 in
Product Height
0.001 in
Product Width
0.001 in
Product Weight
0.001 lb
Warranty
No warranty
Compliances
RoHS Compliant
Certifications
UL Recognized CSA Certified
Amperage Rating
125 A
Interrupt rating
200 kAIC
Voltage rating
500 Vac, 500 Vdc
Packaging type
Standard
Fuse indicator
Non Indicating
Mounting method
Bolt-on
CHSF-125~COMPACT HIGH SPEED FUSE
CHSF-125~COMPACT HIGH SPEED FUSE
Eaton Specification Sheet - CHSF-125
Feature: High-speed operation enables rapid fault clearance. Business Impact: Reduces equipment damage and minimizes downtime in critical control circuits. Application: Suitable for 125 A feeders in industrial panels and motor drive circuits. Feature: Amperage rating of 125 A with an interrupt rating of 200 kAIC, plus voltage ratings of 500 Vac and 500 Vdc. Business Impact: Provides reliable protection for demanding loads without nuisance trips. Application: Protects feeders, motor drives, and power distribution networks. Feature: Bolt-on mounting for secure, fast installation. Business Impact: Simplifies field wiring and mechanical installation, reducing commissioning time. Application: Panel boards, switchgear, and control cabinets. Feature: RoHS compliance with UL Recognized and CSA Certified safety marks. Business Impact: Compliance with environmental and safety standards minimizes regulatory risk. Application: Industrial automation equipment across North America. Feature: Non-indicating fuse design. Business Impact: Minimizes component costs in large assemblies while permitting external status monitoring. Application: Systems with PLC or external indicators for fault signaling.
Get a Quick Quote for a Eaton CHSF-125
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CHSF-125?
Enquire Now
FAQs
CHSF-125 installs via bolt-on mounting in standard protection panels and fuse holders. Follow Eaton’s wiring diagrams for proper terminal connections and torque specifications. Because it is non-indicating, integrate an external status signal or PLC feedback to monitor fuse health and fault events during operation.
CHSF-125 is rated for 125 A with a 200 kAIC interrupt rating and voltage ratings of 500 Vac and 500 Vdc. It uses a bolt-on mounting, is RoHS compliant, and carries UL Recognized and CSA Certified safety marks, making it suitable for North American industrial applications.
Yes, CHSF-125 supports 500 Vdc in addition to 500 Vac, making it applicable for DC power supplies and drive circuits in automation environments. When using in DC applications, ensure proper heat management and secure mounting to maintain performance and minimize contact resistance during faults.
CHSF-125 carries UL Recognized and CSA Certified marks and RoHS compliance. These certifications ease supplier qualification, support regulatory audits, and help meet internal safety and environmental standards for electrical protection in control panels, switchgear, and motor control centers.
The CHSF-125 delivers faster fault clearance with a 200 kAIC interrupt rating, reducing downtime and downstream damage. Its bolt-on installation speeds commissioning, while RoHS and safety certifications reduce regulatory risk. Over time, this translates to lower maintenance costs, improved system availability, and a stronger return on investment for control and power distribution upgrades.
