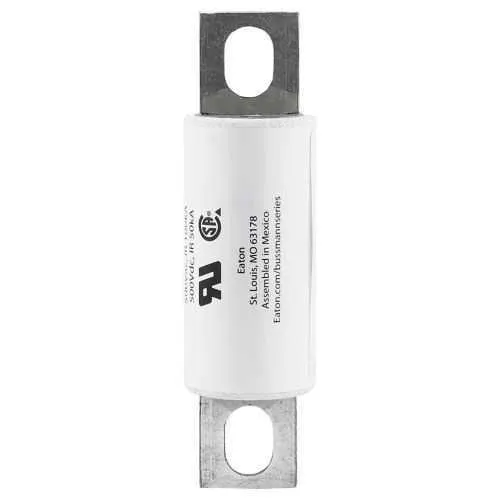

Eaton CHSF-150 High Speed Fuse - UL Recognized
Part Number: CHSF-150
Quick Summary
CHSF high speed fuse by Eaton provides fast, reliable circuit protection for industrial power environments. This device is designed to quickly interrupt faults in 500 Vac and 500 Vdc systems, protecting motors, drives, and control panels while minimizing downtime. For engineers and procurement teams, reliability and regulatory compliance matter as much as performance, which is why UL Recognized and CSA Certified labeling accompanies this fuse, along with RoHS compliance. The CHSF-150’s bolt-on mounting and non-indicating design simplify retrofit projects and reduce panel clutter. By combining aggressive interrupt ratings with straightforward installation, it supports predictable maintenance intervals and lowers total cost of ownership in demanding automation architectures.
Product Information
Extended Description
CHSF-150 Eaton: Eaton Bussmann series CHSF high speed fuse, 500 Vac, 500 Vdc, 150A, 200 kAIC, Non Indicating, High speed fuse, Bolt-on
Product Name
Eaton Bussmann series CHSF high speed fuse
Catalog Number
CHSF-150
UPC
051712534635
Product Length/Depth
0.001 in
Product Height
0.001 in
Product Width
0.001 in
Product Weight
0.001 lb
Warranty
No warranty
Compliances
RoHS Compliant
Certifications
UL Recognized CSA Certified
Amperage Rating
150 A
Interrupt rating
200 kAIC
Voltage rating
500 Vac, 500 Vdc
Packaging type
Standard
Fuse indicator
Non Indicating
Mounting method
Bolt-on
CHSF-150~COMPACT HIGH SPEED FUSE
CHSF-150~COMPACT HIGH SPEED FUSE
Eaton Specification Sheet - CHSF-150
High interrupt rating of 200 kAIC at 500 Vac/500 Vdc enables rapid fault clearance, protecting downstream equipment and reducing downtime. This translates to fewer mid-run outages in heavy start/stop applications such as conveyors or pumps, and lowers maintenance costs over the life of the panel. Bolt-on mounting and non-indicating design simplify field retrofit and panel upgrades. Engineers appreciate quick, tool-friendly installation that minimizes wiring changes and avoids indicators that can complicate maintenance schedules. RoHS compliant with UL Recognized and CSA Certified labeling aligns with global regulatory requirements, reducing supplier audits and streamlining procurement for regulated industries. Compatibility with Eaton Bussmann CHSF series ensures a consistent protection strategy across panels, while standard packaging and a compact footprint support dense layouts and easier replacements during scheduled maintenance. In real-world automation, CHSF-150 provides selective protection for motor drives, feeders, and control circuits, enabling faster nuisance fault clearance and lower total cost of ownership.
Get a Quick Quote for a Eaton CHSF-150
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CHSF-150?
Enquire Now
FAQs
Yes. CHSF-150 uses bolt-on mounting and standard packaging designed for easy retrofit into common bolt-on fuse holders. Ensure matching bolt pattern and torque specifications, and verify panel space and clearance. The non-indicating design minimizes panel clutter, enabling quicker upgrades in aging automation cabinets.
CHSF-150 provides 150 A continuous amperage rating with an interrupt capacity of 200 kAIC, and a voltage rating of 500 Vac and 500 Vdc. These ratings enable rapid fault clearing in motor drives, feeders, and control circuits, reducing damage during faults and limiting downtime in high-demand applications.
CHSF-150 is well suited for motor drives, power distribution panels, and industrial control circuits where fast fault clearing and reliable protection are critical. Its bolt-on installation supports retrofit in existing panels, while its high interrupt rating helps coordinate with other protection devices in automated lines.
CHSF-150 carries UL Recognized and CSA Certified markings, along with RoHS compliance. These certifications simplify customer audits, meet regulatory requirements for many industries, and facilitate procurement across global supply chains while ensuring safety and environmental compliance.
By delivering fast fault clearance and robust protection, CHSF-150 minimizes unplanned downtime and equipment damage, reducing maintenance costs and spare parts usage. Its straightforward bolt-on installation lowers retrofit labor, and RoHS/UL/CSA certifications streamline procurement, contributing to lower total cost of ownership over the life of the equipment.
