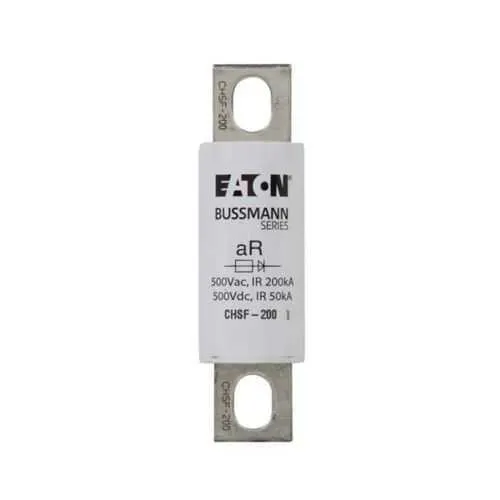

Eaton CHSF-200 High Speed Fuse - UL Recognized, CSA Certified
Part Number: CHSF-200
Quick Summary
The Eaton CHSF-200 High Speed Fuse provides fast overcurrent protection for electrical distribution panels and motor circuits. Engineers often struggle with nuisance trips and selecting fuses that withstand startup surges without compromising protection. UL Recognized and CSA Certified with RoHS compliance provide global safety and environmental assurance. Designed to meet demanding electrical protection standards, the CHSF-200 offers compact footprint and robust performance under diverse industrial conditions. Its bolt-on design simplifies panel upgrades, reduces install time, and aligns with standard electrical protection practices. This helps global procurement teams standardize spares and streamline sourcing for diverse projects.
Product Information
Extended Description
CHSF-200 Eaton: Eaton Bussmann series CHSF high speed fuse, 500 Vac, 500 Vdc, 200A, 200 kAIC, Non Indicating, High speed fuse, Bolt-on
Product Name
Eaton Bussmann series CHSF high speed fuse
Catalog Number
CHSF-200
UPC
051712534659
Product Length/Depth
3.6 in
Product Height
1.01 in
Product Width
1.01 in
Product Weight
0.18 lb
Warranty
No warranty
Compliances
RoHS Compliant
Certifications
UL Recognized CSA Certified
Amperage Rating
200 A
Interrupt rating
200 kAIC
Voltage rating
500 Vac, 500 Vdc
Packaging type
Standard
Fuse indicator
Non Indicating
Mounting method
Bolt-on
CHSF-200~COMPACT HIGH SPEED FUSE
CHSF-200~COMPACT HIGH SPEED FUSE
Eaton Specification Sheet - CHSF-200
With a 200 A amperage rating, the CHSF-200 delivers targeted overcurrent protection for high-load circuits, reducing nuisance trips and equipment damage in motor control centers. This translates to shorter downtime and lower maintenance costs, especially in ISO-standard assemblies and upgrade projects where quick replacement is critical. The fuse’s dual voltage rating of 500 Vac and 500 Vdc enables reliable protection across both AC distribution and DC bus applications, simplifying inventory and installation for mixed systems. The 200 kAIC interrupt rating provides confidence in high fault-current environments, helping safeguard conductors, switches, and transformers during fault events. Bolt-on mounting and a compact 3.6 in length support easy installation in tight panels, while non-indicating operation minimizes heat sources and maintenance headroom. RoHS compliance, UL Recognized, and CSA Certified ensure global regulatory acceptance and supply-chain reliability for worldwide deployments.
Get a Quick Quote for a Eaton CHSF-200
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CHSF-200?
Enquire Now
FAQs
The CHSF-200 uses bolt-on mounting, designed for secure, vibration-tolerant installation in control panels. This method simplifies retrofits and OEM upgrades, reducing fastening steps and ensuring a stable electrical connection. Its compact 3.6 inch length fits tight spaces while preserving accessibility for maintenance or replacement.
CHSF-200 is rated for 200 A amperage, with an interrupt rating of 200 kAIC and voltage ratings of 500 Vac and 500 Vdc. These specs make it suitable for high-current AC and DC applications, including motor drives and distributed power circuits, while providing robust fault current interruption to protect equipment.
Yes, CHSF-200 is RoHS compliant and carries UL Recognized and CSA Certified markings. These certifications support global safety compliance and environmental responsible manufacturing, helping procurement meet cross-border regulatory requirements and simplify supplier qualification.
CHSF-200 is ideal for high-current protections in electrical panels, motor control centers, switchgear, and distribution boards. Its bolt-on design, compact form, and 500 Vac/500 Vdc capability make it versatile for mixed systems, reducing spare part variety and enabling faster maintenance in OEM and retrofit projects.
By delivering fast, reliable overcurrent protection with a high interrupt rating, CHSF-200 minimizes damage to downstream equipment during faults and reduces unplanned outages. Its uncomplicated bolt-on installation shortens maintenance windows, while RoHS and UL/CSA certifications streamline compliance and supply-chain planning, delivering predictable lifecycle costs for industrial facilities.
