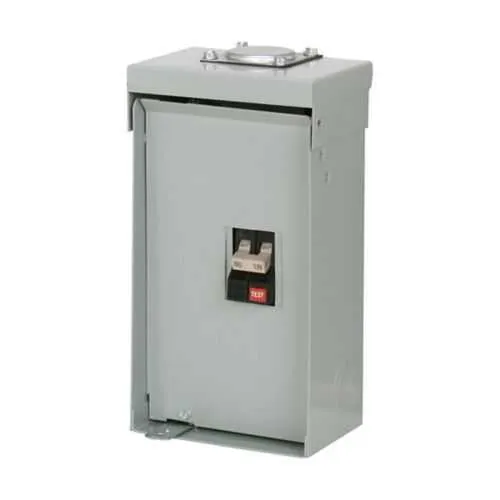

Eaton CHSPA30 Spa Panel - UL 50/UL 67 Enclosure
Part Number: CHSPA30
Quick Summary
Eaton CHSPA30 spa panel is a compact, reliable power distribution solution for outdoor hot tubs and spas. Installing spa power in outdoor environments often challenges protection, wiring efficiency, and code compliance, leading to costly rewrites. This enclosure carries UL 50 and UL 67 ratings and a NEMA 3R enclosure for weather resistance, with a factory-installed CH230GFI breaker and GF self-test feature. With a 30A rating, 30 circuits, and Cu/Al wire compatibility up to #14-1/0 AWG, it delivers scalable, code‑compliant spa power while simplifying installation and service, reducing downtime for maintenance. The CHSPA30 also integrates seamlessly with CH spa panels, offering a proven, contractor-friendly electrical distribution solution for commercial and residential spa applications.
Product Information
Extended Description
CHSPA30 Eaton: Eaton CH spa panel, ch spa panel, 30 circuits, single-phase, three-wire, 30A, #14-1/10 AWG at Cu/Al at 60/75° wire, GF self-test feature
Product Name
Eaton CH spa panel
Catalog Number
CHSPA30
UPC
786689339364
Product Length/Depth
9.5 in
Product Height
3.13 in
Product Width
4.5 in
Product Weight
7 lb
Certifications
UL 50 UL 67
Catalog Notes
Includes a ch230gfi breaker, factory installed, and two extra circuits for convenience. Includes GF self-test feature
Type
Ch spa panel-quick pro
Amperage Rating
30A
Number of circuits
30
Number Of Poles
Two-pole
Phase
Single-phase
Used with
Ch spa panel
Wire size
#14-1/0 AWG Cu/Al
Box size
5R
Enclosure
NEMA 3R
Number of wires
3
Size
3/4 in
Feature: Factory-installed CH230GFI breaker with GF self-test. Benefit: Ensures instantaneous ground-fault protection without field wiring, reducing risk and service calls. Application: Ideal for outdoor spa power distribution where wet environments demand reliable GFCI performance. Feature: 30 circuits in a single enclosure with a 30A, two-pole, single-phase configuration. Benefit: Enables bulk wiring and scalable branch protection in one compact cabinet, lowering panel footprint and labor costs. Application: Suitable for hot tubs and outdoor spa equipment installations that require robust enumeration and organized wiring. Feature: Copper/Aluminum wire compatibility up to #14-1/0 AWG. Benefit: Maximizes flexibility for mixed wiring ecosystems and simplifies retrofit projects, saving material costs. Application: Meets common field wiring practices for residential and light commercial spas. Feature: NEMA 3R enclosure with UL 50 and UL 67 certifications and 5R box size. Benefit: Delivers reliable outdoor protection against moisture and corrosion, with code-compliant enclosure integrity. Application: Outdoor pool and spa areas where weather resistance is mandatory. Feature: Includes two extra circuits and factory installation notes. Benefit: Reduces procurement need and accelerates installation, delivering immediate operational capacity. Application: New builds and retrofit projects needing rapid deployment and expanded headroom. Feature: Dimensions 9.5 in L × 4.5 in W × 3.13 in H; weight 7 lb. Benefit: Space-efficient footprint that fits tight service spaces without compromising safety. Application: Compact installations in equipment rooms or poolside enclosures where space is at a premium.
Get a Quick Quote for a Eaton CHSPA30
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CHSPA30?
Enquire Now
FAQs
The CHSPA30 arrives with a factory-installed CH230GFI breaker and GF self-test feature, reducing field wiring and configuration steps. It supports 30A operation across 30 circuits in a single-phase, two-pole setup and accepts Cu/Al conductors up to #14-1/0 AWG. This simplifies retrofits and new installs by providing a ready-to-wire spa power distribution point.
CHSPA30 is a single-phase spa panel rated at 30A with 30 total circuits in a two-pole configuration. It accepts #14-1/0 AWG Cu/Al conductors, uses a NEMA 3R outdoor enclosure, and is UL listed with certifications UL 50 and UL 67. The enclosure footprint is 9.5 in length, 4.5 in width, and 3.13 in height, weighing about 7 lb.
Yes. CHSPA30 is designed for outdoor spa power distribution, featuring a NEMA 3R enclosure and UL 50/UL 67 certifications. The factory-installed GFCI breaker and GF self-test further enhance safety in wet environments, while its weather-resistant construction helps protect sensitive components against rain, humidity, and outdoor conditions.
UL 50 covers enclosures for electrical equipment, ensuring mechanical integrity under normal conditions, while UL 67 pertains to bus and panelboard assemblies used in outdoor spaces. Together, they validate the enclosure’s safety and reliability for outdoor spa power distribution, reducing risk of enclosure compromise and helping meet electrical codes in commercial and residential projects.
CHSPA30 provides a factory-installed GFCI with GF self-test, reducing field checks and maintenance overhead. Its integrated design lowers wiring complexity and cabinet footprint, enabling quicker service calls and faster commissioning. The 30 circuits in one enclosure offer scalable capacity for future spa equipment upgrades, improving lifecycle value and total cost of ownership.
