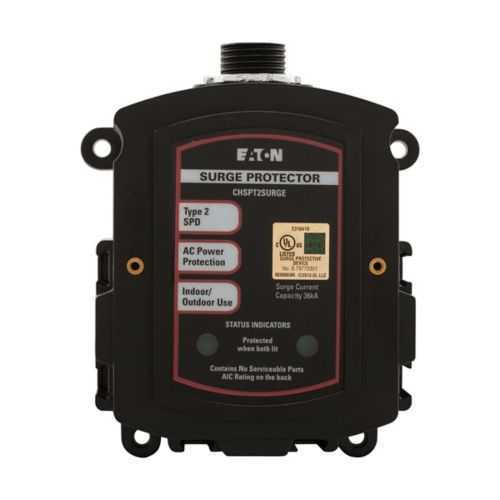

Eaton CHSPT2SURBUNDLE Surge Protection Device - 2-Stage
Part Number: CHSPT2SURBUNDLE
Quick Summary
The Eaton CHSPT2SURBUNDLE is a plug-on module surge protector for electrical panels and circuits. Too often, surges damage equipment, cause nuisance outages, and drive costly downtime for facilities. Compliances require confirmation from the manufacturer; this device supports two-stage surge protection and Type CH compatibility to meet common protection standards. With a compact footprint and a one-year warranty, it offers straightforward installation, reliable protection, and a clear path to lowering total cost of ownership. For residential and light commercial panels, this solution enhances uptime and protects critical devices while aligning with maintenance and safety goals. This aligns with best practices for electrical protection programs and can simplify procurement with a single bundle approach.
Product Information
Extended Description
CHSPT2SURBUNDLE Eaton: Eaton Type CH circuit breaker surge protective device, Bundle Contains ULTRA, 2, 1208W, Surge Receptacles
Product Name
Eaton Type CH plug on module surge protection device
Catalog Number
CHSPT2SURBUNDLE
UPC
786689017101
Product Length/Depth
5.5 in
Product Height
5.5 in
Product Width
2.5 in
Product Weight
1.65 lb
Warranty
1 year
Compliances
Contact Manufacturer
Catalog Notes
SEE INDIVIDUAL PRODUCT RATINGS
Type
Type 2, Type 3
Special features
2 Stages of Surge Protection
Quantity
3
Product Family Guide
Product Family Guide
Product Family Guide
Product Family Guide
Product Family Guide
Product Family Guide
Surge Protection
Eaton Specification Sheet - CHSPT2SURBUNDLE
Surge Protection Warranty WA00414003E
Two-stage surge protection provides layered clamping that reduces transient energy reaching connected equipment, resulting in lower risk of electronics damage and fewer unplanned outages. The business impact is tangible: higher uptime, reduced repair costs, and extended life for sensitive devices in both residential and light commercial environments. This is complemented by a plug-on module design that accelerates installation, minimizes panel disruption, and lowers commissioning time for field technicians. The compact 5.5 inch length and 2.5 inch width, with a 5.5 inch height and 1.65 pound weight, fit easily in crowded panels while maintaining robust protection. A one-year warranty supports maintenance planning and budget predictability, while the Compliances note prompts verification with the manufacturer to ensure alignment with local codes.
Get a Quick Quote for a Eaton CHSPT2SURBUNDLE
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CHSPT2SURBUNDLE?
Enquire Now
FAQs
Begin by confirming Type CH compatibility and consult the Eaton installation guides. Remove power, mount the plug-on module securely in the panel, connect the line and load conductors per the CHSPT1/CHSPT2 configuration, re-energize, and test with appropriate surge testing equipment. The CHSPT2SURBUNDLE is designed for straightforward retrofit and new installations alike.
Two-stage surge protection means the device uses two consecutive protection elements to absorb and clamp transient energy more effectively. The first stage handles larger surges, while the second stage contains residual energy, reducing peak voltage seen by downstream equipment. This results in improved protection for sensitive electronics and extended equipment life in fluctuating electrical environments.
Yes. The CHSPT2SURBUNDLE is designed for Type CH circuits and is appropriate for residential and light commercial panels. Its compact form factor, 1-year warranty, and two-stage protection make it a practical choice for safeguarding everyday loads, office equipment, and lightweight manufacturing peripherals without overhauling existing protective schemes.
Compliances require confirmation with the manufacturer, and regional certifications may vary by market. The product is designed to meet standard surge protection expectations and Eaton’s internal ratings. Always verify local regulatory approvals and permissible usages with your procurement and facilities teams before deployment.
The ROI comes from reduced downtime and fewer equipment repairs due to surge events, along with simpler procurement via a single bundle approach. A 1-year warranty provides maintenance cost predictability, while installation efficiency minimizes labor. In surge-prone facilities, the device typically lowers total cost of ownership by protecting costly electronics and minimizing production interruptions.
