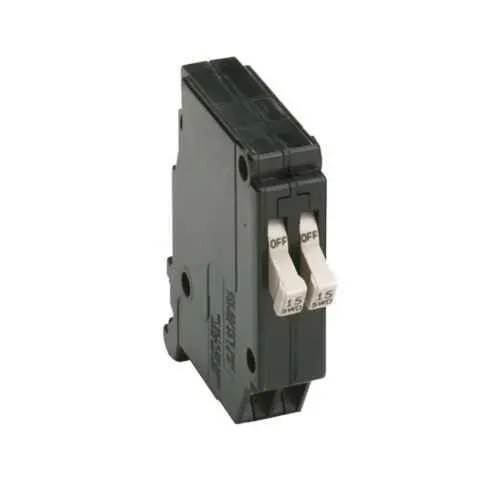

Eaton CHT1515CS Thermal Magnetic Circuit Breaker - UL Listed
Part Number: CHT1515CS
Quick Summary
Eaton CH thermal magnetic circuit breaker protects electrical circuits in commercial, residential, and light industrial panels. Engineers often confront nuisance trips and compatibility issues during Type CH Loadcenters upgrades. This model carries UL 489 UL Listed certification and is rated for 50–60 Hz operation with a 10 kAIC interrupt rating and HCAR switching duty. A compact plug-on design and clamshell packaging streamline procurement and field installation, while its single-pole 15 A, 120/240 V rating suits typical branch circuits in modern panels. Designed for quick interchange and reliable performance, it supports efficient maintenance programs and reduces panel downtime.
Product Information
Extended Description
CHT1515CS Eaton: Eaton CH thermal magnetic circuit breaker,Plug-on circuit breaker clamshell pack,Clamshell pack,15 A,10 kAIC,Single-pole,120/240V,CHT,#14-8 AWG Cu/Al,CHT,Type CH Loadcenters,50-60 Hz,Switching duty rated, HCAR rated
Product Name
Eaton CH thermal magnetic circuit breaker
Catalog Number
CHT1515CS
UPC
786680134081
Product Length/Depth
6 in
Product Height
1.5 in
Product Width
4 in
Product Weight
0.35 lb
Certifications
UL 489 UL Listed
Used with
Type CH Loadcenters
Type
Plug-on circuit breaker clamshell pack
Special features
Clamshell pack
Amperage Rating
15-15A
Voltage rating
120/240 V
Circuit breaker type
CH
Frequency rating
50-60 Hz
Rating
Switching duty rated, HCAR rated
Interrupt rating
10 kAIC
Main circuit breaker
CHT
Wire size
#14-8 AWG Cu/Al
Number of poles
Single-pole
Residential and Light Commercial, Metering Products, Volume 1 Tab 4
Eaton Specification Sheet - CHT1515CS
Eaton type CH circuit breaker limited warranty June 2024
Feature: 15 A Amperage Rating | Business Impact: Precise overload protection reduces nuisance trips and protects lightweight branch circuits. Application: lighting and receptacle runs in CH Loadcenters. Feature: 120/240 V voltage rating | Business Impact: Supports both 120 V and 240 V circuits, enabling a single device type across mixed-voltage installations. Application: residential/commercial distribution panels. Feature: 10 kAIC interrupt rating | Business Impact: Higher fault withstand improves safety margins and limits damage during short circuits. Application: commercial panels with robust fault currents. Feature: Type CH Loadcenter compatibility | Business Impact: Plug-on design minimizes installation time and wiring errors, accelerating replacement projects. Application: quick upgrades in Type CH infrastructure. Feature: Wire size #14-8 AWG Cu/Al | Business Impact: Standard conductor compatibility reduces additional parts and field labor. Application: common branch wiring. Feature: Plug-on circuit breaker clamshell pack | Business Impact: Simplified procurement and safer handling for distributors and contractors. Application: easier stocking and faster job-site readiness. Feature: Certifications and ratings (UL 489 UL Listed; Switching duty rated; HCAR rated) | Business Impact: Compliance with electrical codes and reliable performance under load. Application: essential for regulated installations and maintenance planning.
Get a Quick Quote for a Eaton CHT1515CS
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CHT1515CS?
Enquire Now
FAQs
Yes, the CHT1515CS is designed specifically for Type CH Loadcenters. It accepts conductor sizes from #14 to #8 AWG for either copper or aluminum wiring, making it suitable for common branch-circuit installations in CH panels. This single-pole unit provides straightforward replacement without requiring additional adapters or wiring changes.
The CHT1515CS is a 15 A breaker rated for 120/240 V. It features a 10 kAIC interrupt rating, operates at 50–60 Hz, and is designed for switching duty with HCAR-rated performance, ensuring reliable protection for standard residential and light commercial circuits.
The CHT1515CS is a single-pole device. For multi-pole circuits, use corresponding two-pole or multi-pole CH-series breakers that match the CH Loadcenter design. This ensures proper physical fit, electrical coordination, and code-compliant protection across the panel.
This model carries UL 489 and UL Listed certifications, confirming it meets recognized safety standards for circuit breakers. It also aligns with 50–60 Hz operation and high interrupt ratings, supporting regulatory compliance and safe integration into both new and upgrade installations.
The clamshell pack packaging simplifies handling, storage, and inventory management for distributors and contractors. It facilitates faster job-site picking, reduces packaging waste, and supports streamlined procurement workflows when stocking CH-type breakers for Type CH Loadcenters.
