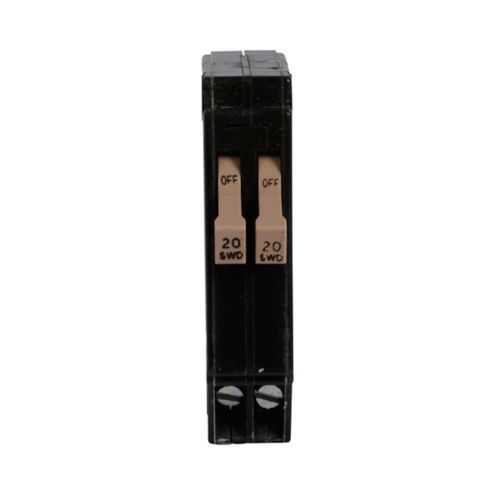

Eaton CHT2020CS CH Circuit Breaker - UL 489 Listed
Part Number: CHT2020CS
Quick Summary
CHT2020CS is a plug-on thermal magnetic circuit breaker that protects Type CH load centers in residential and light commercial panels. It reduces nuisance trips and simplifies replacement in tight spaces. This unit carries UL 489 listing and UL Listed recognition, ensuring code-compliant protection for critical circuits. Operating at 120/240 V and 50-60 Hz, it supports #14-8 AWG Cu/Al and a 20 A rating. By standardizing on Eaton CH breakers, you gain predictable coordination, easier spare-part management, and faster installation across power-distribution panels in building automation and commercial environments.
Product Information
Extended Description
CHT2020CS Eaton: Eaton CH thermal magnetic circuit breaker,Plug-on circuit breaker clamshell pack,Clamshell pack,20 A,10 kAIC,Single-pole,120/240V,CHT,#14-8 AWG Cu/Al,CHT,Type CH Loadcenters,50-60 Hz,Switching duty rated, HCAR rated
Product Name
Eaton CH thermal magnetic circuit breaker
Catalog Number
CHT2020CS
UPC
786680134067
Product Length/Depth
6 in
Product Height
1.5 in
Product Width
4 in
Product Weight
0.35 lb
Certifications
UL 489 UL Listed
Used with
Type CH Loadcenters
Type
Plug-on circuit breaker clamshell pack
Special features
Clamshell pack
Amperage Rating
20-20A
Voltage rating
120/240 V
Circuit breaker type
CH
Frequency rating
50-60 Hz
Rating
Switching duty rated, HCAR rated
Interrupt rating
10 kAIC
Main circuit breaker
CHT
Wire size
#14-8 AWG Cu/Al
Number of poles
Single-pole
Residential and Light Commercial, Metering Products, Volume 1 Tab 4
Eaton Specification Sheet - CHT2020CS
Eaton type CH circuit breaker limited warranty June 2024
Feature: Plug-on circuit breaker clamshell pack. Benefit: Protects the unit during handling, simplifies inventory, and speeds on-site access. Application: Designed for Type CH Loadcenters, enabling rapid panel upgrades and service replacements. Feature: 20 A amperage rating with 10 kAIC interrupt capacity. Benefit: Provides safe, reliable overcurrent protection for typical branch circuits and short-circuit resilience. Application: Ideal for residential and light commercial circuits in CH load centers. Feature: 120/240 V operation at 50-60 Hz. Benefit: Dual-voltage compatibility reduces stock and enables seamless integration in standard US panels. Application: Suitable for main and branch circuit protection in mixed-voltage installations. Feature: Wire size compatibility #14-8 AWG Cu/Al. Benefit: Simplifies terminations and reduces rewiring complexity. Application: Supports common branch wiring in both new builds and panel upgrades. Feature: Single-pole, Type CH configuration. Benefit: Easy swap-in within CH Loadcenters and straightforward downstream maintenance. Application: Efficient for selective circuit protection in compact panels and retrofit projects. Feature: UL 489 UL Listed certification. Benefit: Code-compliant safety and broad acceptance by electrical inspectors. Application: Suitable for residential and light commercial distribution panels. Feature: HCAR rated and switching duty rated. Benefit: Reliable performance under frequent switching and higher load conditions. Application: Beneficial for circuits that see regular on/off cycling in building automation and service entrances.
