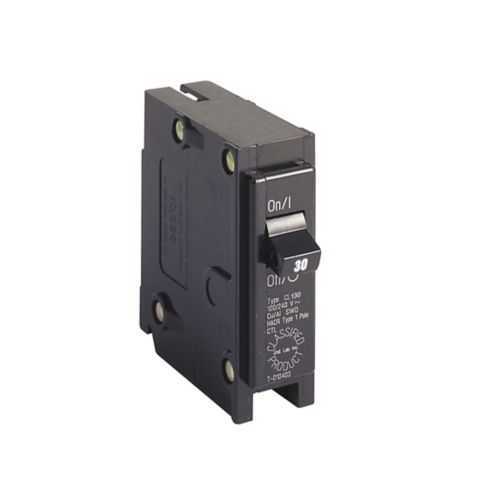

Eaton CL130 Circuit Breaker - UL 489, 10 kAIC
Part Number: CL130
Quick Summary
The Eaton CL130 Circuit Breaker provides 1-Inch classified thermal-magnetic protection for CH load centers. In practice, cross-brand replacements without rewiring can cut downtime and simplify spare-part inventories in busy control panels. UL 489 listing and the classified replacement designation help ensure safety, interchangeability, and code compliance in mixed-brand installations. With a 30 A rating at 120/240 V and a compact footprint, the CL130 enables efficient protection planning, fewer SKUs, and faster field service. This model is especially valuable in retrofit projects and new builds where cross-reference compatibility and space efficiency matter most.
Product Information
Extended Description
CL130 Eaton: Eaton Classified 1" thermal magnetic circuit breaker, Type CL 1-Inch classified replacement breaker, 30 A, 10 kAIC, single-pole, 120/240V, CL, #14-4 AWG Cu/Al, CL, Type CH loadcenters
Product Name
Eaton Classified 1" thermal magnetic circuit breaker
Catalog Number
CL130
UPC
786676011570
Product Length/Depth
0.9 in
Product Height
2.5 in
Product Width
3.1 in
Product Weight
0.25 lb
Warranty
Limited lifetime residential, 1 year commercial
Certifications
UL 489
Catalog Notes
Replacement for Square D Homeline, GE Type THQ, Crouse-Hinds Type MP, Thomas and Betts Type TB, Murray Type MP, ITE/Siemens Type QP. Requires 1-inch (25.4 mm) space.
Used with
Type CH Loadcenters
Type
Type CL 1-Inch classified replacement breaker
Amperage Rating
30 A
Voltage rating
120/240 V
Circuit breaker type
CH
Interrupt rating
10 kAIC
Main circuit breaker
CL
Wire size
#14-4 AWG Cu/Al
Number of poles
Single-pole
Standard circuit breaker catalog numbers - 5651B63SH09
Residential and Light Commercial, Load centers and Circuit Breakers, Volume 1 Tab 1
Eaton Specification Sheet - CL130
Feature: 1-Inch classified replacement breaker that fits CH Loadcenters. Business Impact: Saves panel space, reduces inventory complexity, and accelerates retrofits. Application: Ideal for commercial and light-industrial panels needing compact protection with cross-brand compatibility. Feature: 30 A, 120/240 V, single-pole with 10 kAIC rating. Business Impact: Delivers appropriate overcurrent protection for branch circuits while ensuring fast interruption during faults, limiting equipment damage. Application: Lighting, receptacle groups, and small machinery circuits in CH load centers. Feature: Wire size compatibility up to #14-4 AWG Cu/Al. Business Impact: Simplifies wiring and stocking by supporting common conductor sizes. Application: End users can transition from older breakers without rewiring larger conductors. Feature: Classified replacement with cross-brand notes (Square D Homeline, GE THQ, etc.). Business Impact: Reduces downtime and procurement costs by enabling cross-reference replacements. Application: Mixed-brand panels and service upgrades in facilities with legacy equipment. Feature: UL 489 listing and limited warranty. Business Impact: Provides regulatory assurance and a clear service-life expectation, minimizing risk during audits. Application: New builds and code-driven retrofit projects where compliance is mandatory.
Get a Quick Quote for a Eaton CL130
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CL130?
Enquire Now
FAQs
The CL130 is a 1-Inch classified replacement breaker designed for Type CH load centers and is intended to cross-reference with legacy panels. It fits in standard 1-in space, accepts #14-4 AWG Cu/Al conductors, and supports 120/240 V circuits. For cross-brand compatibility, consult Eaton's catalog notes for approved substitutions (Square D Homeline, GE THQ, and others).
Key specs include 30 A, 120/240 V, 10 kAIC interrupt rating, single-pole, Type CH load-center compatibility, and conductor size #14-4 AWG Cu/Al. Classified as a 1-Inch replacement breaker, it bears UL 489 compliance and is designed to fit 1-Inch spaces in CH-load centers.
Yes, the CL130 is a classified replacement breaker designed to cross-reference several legacy brands, including Square D Homeline, GE THQ, Crouse-Hinds MP, Thomas and Betts TB, Murray MP, and ITE/Siemens QP. Always verify the catalog notes for your exact panel model, since space and bus-bar configuration must align (requires 1-inch space).
Warranty: Limited lifetime residential, 1 year commercial. Certification: UL 489 listing. This combination supports safe operation and long-term service life. Additionally, ensure installation follows manufacturer instructions and local electrical codes to maintain warranty validity.
Being a 1-Inch wide, single-pole unit, the CL130 fits in standard CH load centers alongside other devices, reducing panel crowding and simplifying retrofits. It is designed for use with 1-Inch spaces and supports copper or aluminum wiring up to #14-4 AWG. The installation is straightforward when following Eaton's replacement guidelines.
