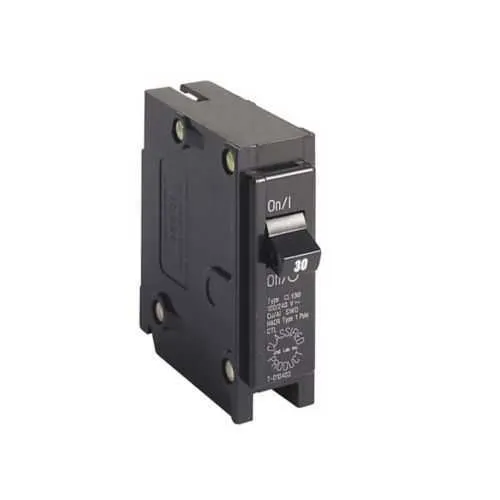

Eaton CL130CS Circuit Breaker - UL 489, 30A, 10 kAIC
Part Number: CL130CS
Quick Summary
The Eaton CL130CS circuit breaker provides reliable thermal-magnetic overcurrent protection for CH loadcenter installations. When replacements are scarce or mismatched, panel downtime and wiring errors can derail maintenance schedules. UL 489 listing ensures safety compliance for molded‑case breakers, while the 1‑inch classified form factor enables fast, safe retrofits—paired with a 10 kAIC interrupt rating for higher fault protection. Designed to work with Type CH load centers and with #14-4 AWG Cu/Al conductors, it supports streamlined stocking and easy field upgrades. For engineers and maintenance teams, this combination translates to higher reliability, reduced inventory complexity, and faster project turnaround.
Product Information
Extended Description
CL130CS Eaton: Eaton Classified 1" thermal magnetic circuit breaker, Type CL 1-Inch classified replacement breaker clamshell pack, 30 A, 10 kAIC, single-pole, 120/240V, CL, #14-4 AWG Cu/Al, Q30, CL, Type CH loadcenters
Product Name
Eaton Classified 1" thermal magnetic circuit breaker
Catalog Number
CL130CS
UPC
782114753040
Product Length/Depth
7.25 in
Product Height
6.5 in
Product Width
4.5 in
Product Weight
0.4 lb
Certifications
UL 489
Catalog Notes
Replacement for Square D Homeline, GE Type THQ, Crouse-Hinds Type MP, Thomas and Betts Type TB, Murray Type MP, ITE/Siemens Type QP. Requires 1-inch (25.4 mm) space.
Used with
Type CH Loadcenters
Type
Type CL 1-Inch classified replacement breaker clamshell pack
Special features
Clamshell pack
Amperage Rating
30 A
Voltage rating
120/240 V
Circuit breaker type
CH
Interrupt rating
10 kAIC
Main circuit breaker
CL
Wire size
#14-4 AWG Cu/Al
Number of poles
Single-pole
Quantity
30
Standard circuit breaker catalog numbers - 5651B63SH09
Residential and Light Commercial, Load centers and Circuit Breakers, Volume 1 Tab 1
Eaton Specification Sheet - CL130CS
Feature: 1-Inch classified replacement breaker packaged in a clamshell pack. Impact: simplifies stock management, minimizes handling damage, and speeds field replacements. Application: ideal for CH load centers and legacy panel retrofits where space and compatibility matter. Feature: 30 A amperage rating with a 10 kAIC interrupt rating, suitable for 120/240 V systems. Impact: provides targeted protection for branch circuits with higher fault currents while maintaining code compliance. Application: residential and light commercial installations with moderate load diversity. Feature: Single-pole CH-type circuit breaker that accepts #14-4 AWG Cu/Al. Impact: reduces wiring complexity and enables reliable terminations. Application: straightforward retrofits in CH load centers. Feature: UL 489 certification. Impact: safety compliance and installer confidence in meeting electrical codes. Application: compliant installations across commercial and industrial settings. Feature: Replacement compatibility for multiple legacy breakers per catalog notes (Square D Homeline, GE THQ, Crouse-Hinds MP, etc.). Impact: broadens retrofit options and minimizes panel modifications. Application: modernization projects with mixed-brand panels. Feature: 1-inch space requirement. Impact: ensures proper fit within standard CH panel layouts. Application: panel planning and space-constrained installations. Feature: Clamshell pack packaging. Impact: reduces shipping damage and protects the product until installation. Application: logistics-focused procurement and field service teams.
Get a Quick Quote for a Eaton CL130CS
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CL130CS?
Enquire Now
FAQs
The CL130CS is a 30 A, single-pole, 120/240 V thermal-magnetic breaker designed for CH load centers. When installing, ensure a 1-inch space in the panel and use #14-4 AWG Cu/Al conductors. The clamshell-pack packaging aids handling, and the unit is UL 489 listed, meeting safety standards for field retrofits in both residential and light commercial panels.
Key specs include amperage rating of 30 A, voltage rating of 120/240 V, interrupt rating of 10 kAIC, and single-pole configuration. It uses Type CH, CL main circuit breaker compatibility, and accepts #14-4 AWG Cu/Al conductors. These specs support reliable protection for branch circuits while maintaining compatibility with CH Loadcenters.
Yes. The CL130CS is listed as a classified replacement with catalog notes indicating compatibility with legacy breakers from brands like Square D Homeline, GE THQ, Crouse-Hinds MP, Thomas and Betts TB, Murray MP, and ITE/Siemens QP. This broad compatibility supports modernization projects without panel redesign, reducing downtime and inventory complexity.
The CL130CS carries UL 489 certification, verifying compliance with standardized safety requirements for molded-case circuit breakers. It is also specified as a classified replacement for 1-inch form-factor installations, enabling confident retrofits in CH load centers and ensuring adherence to applicable electrical codes.
Using the CL130CS offers measurable maintenance benefits through faster replacements, reduced panel downtime, and improved stocking efficiency thanks to the clamshell-pack presentation. The 30 A rating and 10 kAIC interrupt capability enhance protection while enabling compatible substitutions across legacy panels, resulting in lower total cost of ownership for service crews.
