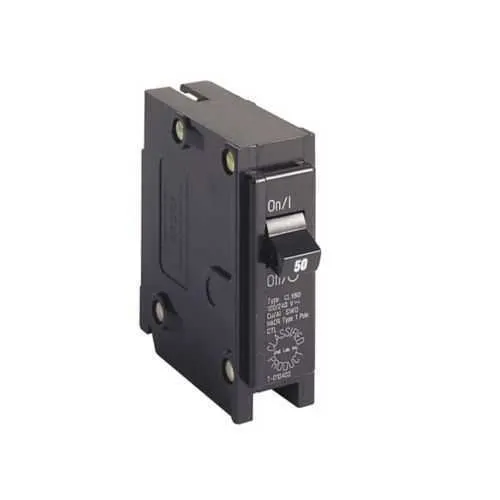

Eaton CL150CS Circuit Breaker - 10 kAIC UL 489
Part Number: CL150CS
Quick Summary
Eaton CL150CS Circuit Breaker is a classified 3/4" thermal magnetic device for CH load centers. Many projects stall when a compatible replacement must fit a tight 1-inch space while maintaining UL safety standards. This unit carries UL 489 certification and offers a 10 kAIC interrupt rating, aligning with safety and reliability requirements. As a compact, rated solution for 120/240 V circuits, it simplifies procurement and retrofit workflows while supporting consistent performance in residential and light commercial panels. The CL classified design also supports simple cross-compatibility in Type CH Loadcenters, reducing inventory complexity for procurement teams and service technicians alike.
Product Information
Extended Description
CL150CS Eaton: Eaton Classified 3/4" thermal magnetic circuit breaker,Type CL 1-Inch classified replacement breaker clamshell pack,Clamshell pack,45 A,10 kAIC,Single-pole,120/240V,CL,#14-4 AWG Cu/Al,Q30,CL,Type CH Loadcenters
Product Name
Eaton Classified 3/4" thermal magnetic circuit breaker
Catalog Number
CL150CS
UPC
782116630448
Product Length/Depth
3 in
Product Height
3 in
Product Width
1 in
Product Weight
0.3 lb
Warranty
Limited lifetime residential, 1 year commercial
Certifications
UL 489
Catalog Notes
Replacement for Square D Homeline, GE Type THQ, Crouse-Hinds Type MP, Thomas and Betts Type TB, Murray Type MP, ITE/Siemens Type QP. Requires 1-inch (25.4 mm) space.
Used with
Type CH Loadcenters
Type
Type CL 1-Inch classified replacement breaker clamshell pack
Special features
Clamshell pack
Amperage Rating
45 A
Voltage rating
120/240 V
Circuit breaker type
CH
Interrupt rating
10 kAIC
Main circuit breaker
CL
Wire size
#14-4 AWG Cu/Al
Number of poles
Single-pole
Quantity
30
Standard circuit breaker catalog numbers - 5651B63SH09
Residential and Light Commercial, Load centers and Circuit Breakers, Volume 1 Tab 1
Eaton Specification Sheet - CL150CS
Compact footprint and clamshell packaging reduce on-site handling time. This translates to faster stocking and safer installations in crowded panels, especially during retrofit projects. Use with CH Loadcenters to streamline replacements and minimize cabinet space impact. High amperage rating of 45 A provides targeted protection for branch circuits while enabling normal load operation, reducing nuisance trips and downtime on critical circuits. The 120/240 V voltage rating supports typical residential and light commercial single-phase systems, enabling universal compatibility across common panel configurations. A 10 kAIC interrupt rating delivers robust fault protection for shared neutrals and multi-wire branch circuits, improving overall panel reliability. The CL main circuit breaker and Type CL classification offer predictable interchangeability with other classified products, simplifying procurement and maintenance. This solution is designed to accommodate #14-4 AWG Cu/Al conductors, supporting straightforward wiring during panel upgrades.
Get a Quick Quote for a Eaton CL150CS
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton CL150CS?
Enquire Now
FAQs
Yes, the CL150CS is designed as a classified replacement for CH Loadcenters and fits within a 1-inch space requirement. Its compact 3 in length and 1 in width, plus a clamshell packaging, simplify retrofits where cabinet depth and space are constrained. This makes it ideal for upgrading or replacing aging CH panels without reconfiguring the enclosure.
The CL150CS is a single-pole breaker rated at 45 A with a 120/240 V voltage rating and a 10 kAIC interrupt rating. It is UL 489 listed and intended for use with Type CH Loadcenters, supporting standard Cu/Al wiring up to #14-4 AWG. These specs translate to reliable fault protection for typical residential and light commercial circuits.
Best suited for CH Loadcenter installations and replacements where cross-compatibility with other brands is advantageous. It supports 120/240 V single-phase circuits, is compatible with #14-4 AWG conductors, and is packaged to minimize onsite handling during retrofit projects, improving installation speed and reducing labor costs.
Yes, the CL150CS carries UL 489 certification, ensuring compliance with recognized safety standards for low-voltage circuit breakers. This certification supports safe operation in residential and light commercial panels and aligns with common industry specifications for cross-brand replacements.
The CL150CS benefits from Eaton's general warranty framework, with a limited lifetime residential warranty and a 1-year commercial warranty. For maintenance planning, this translates to long-term reliability for home and light business installations, along with streamlined service support from Eaton if a replacement is needed.
